In-line Reducer splice kit
SKU: #333105
Part: #YSR6CFX8CFXLTCKITC
UPC: 781810473924
In-line Reducer splice kit
SKU: #333105
Part: #YSR6CFX8CFXLTCKITC
UPC: 781810473924
Next day delivery
Description

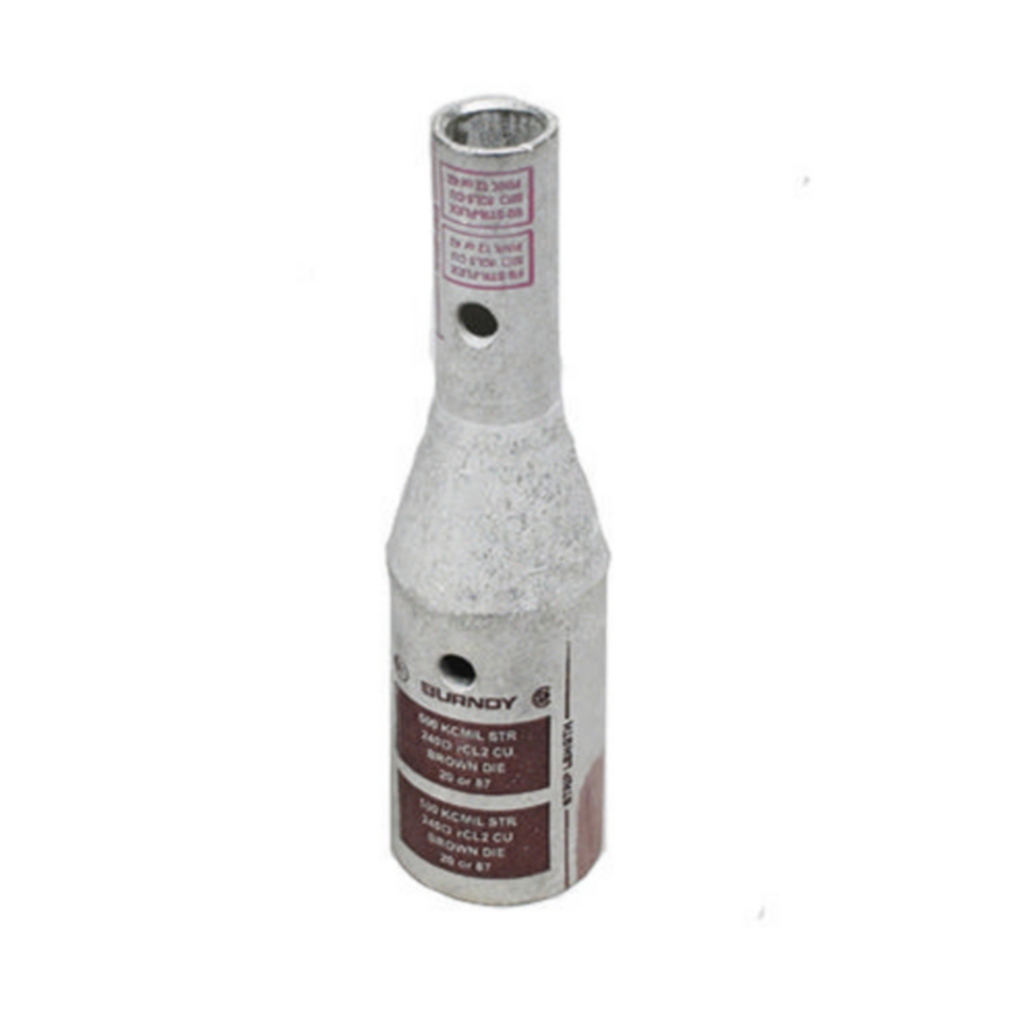

In-line Reducer Splice Kit - Wire and Cable Connector
The In-line Reducer Splice Kit is a copper compression connector designed for wire reducing splice applications. It is suitable for electrical distributors, lighting solutions, and wire and cable installations requiring reliable conductor size reduction and splicing. This kit ensures secure electrical connections between different conductor sizes in flexible stranded copper wiring.
Specifications
- Application: Wire Reducing Splice
- Material: Copper
- Finish: Tin-Plated
- Conductor Size: 6 AWG - 8 AWG
- Connection Type: Reducer; Splice
- Max. Voltage: 35000 volts
- Product Weight: 0.0400 lbs
- Manufacturer: Burndy
- Manufacturer Part #: YSR6CFX8CFXLTCKITC
- UPC: 781810473924
Features
- Electro-tin plated copper compression connector for corrosion resistance
- Includes inspection window for cable inspection on each side
- Standard barrel design for easy installation
- Compatible with flexible stranded copper conductors
- Comes with heat shrink tubing for insulation and protection
