In-line Reducer splice kit
SKU: #333020
Part: #YSR26FX2CFXLTCKITC
UPC: 781810362600
In-line Reducer splice kit
SKU: #333020
Part: #YSR26FX2CFXLTCKITC
UPC: 781810362600
Next day delivery
Description

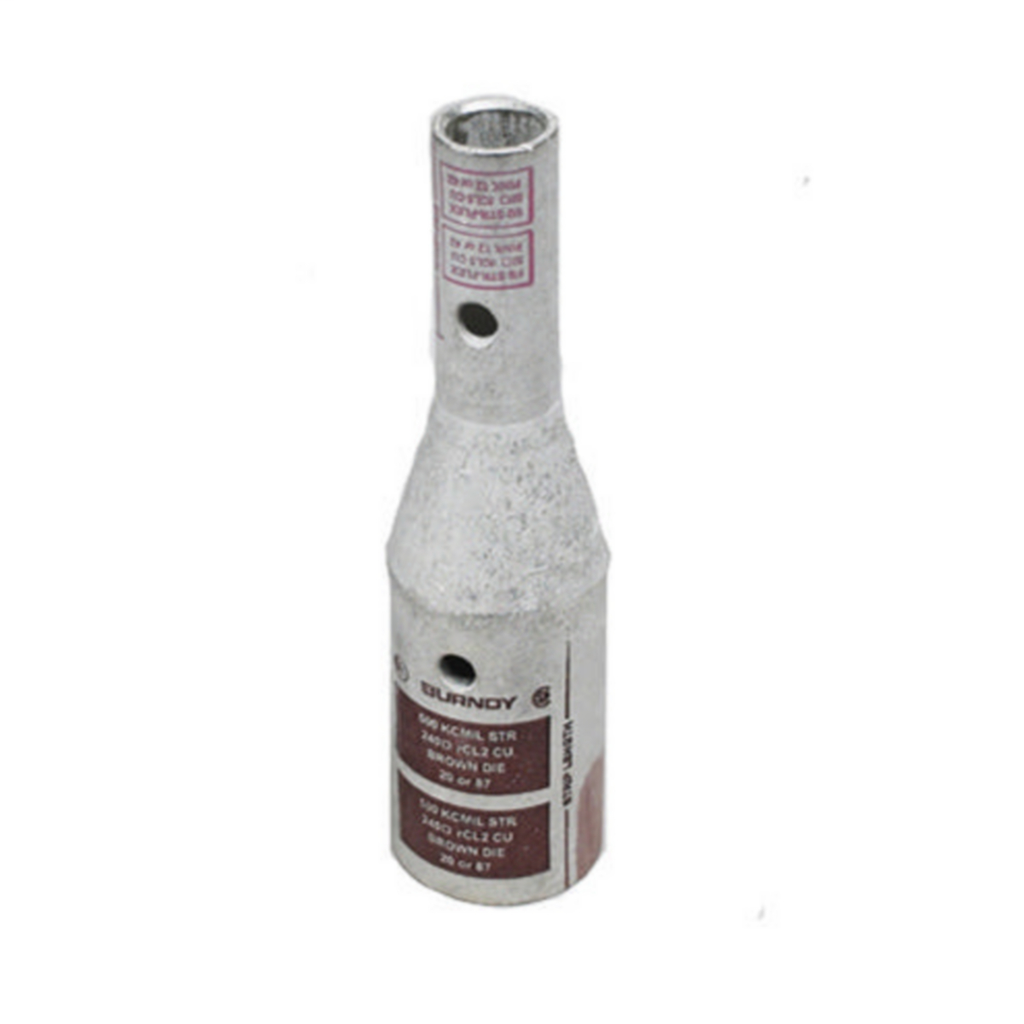

In-line Reducer Splice Kit – Wire and Cable Connector
The In-line Reducer Splice Kit by Burndy is designed for wire reducing splice applications, providing a reliable electrical connection between different conductor sizes. This compression copper reducer/splice kit features an electro-tin plated finish and includes an inspection window for cable verification. It is suitable for electrical distributors and switchgear suppliers requiring high-quality connectors for wire and cable installations in lighting solutions and other electrical systems.
Specifications
- Application: Wire Reducing Splice
- Material: Copper
- Finish: Tin-Plated
- Conductor Size: 2/0 AWG - 2 AWG
- Connection Type: Reducer; Splice
- Maximum Voltage: 35,000 volts
- Product Weight: 0.1500 lbs
- Manufacturer: Burndy
- Manufacturer Part Number: YSR26FX2CFXLTCKITC
- UPC: 781810362600
Features
- Electro-tin plated copper construction for corrosion resistance
- Compression type connection ensures secure and durable splicing
- Inspection window for cable verification during installation
- Standard barrel design for flexible stranded copper conductors
