In-line Reducer splice kit
SKU: #333072
Part: #YSR34FX29FXLTCKITC
UPC: 781810472354
In-line Reducer splice kit
SKU: #333072
Part: #YSR34FX29FXLTCKITC
UPC: 781810472354
Next day delivery
Description

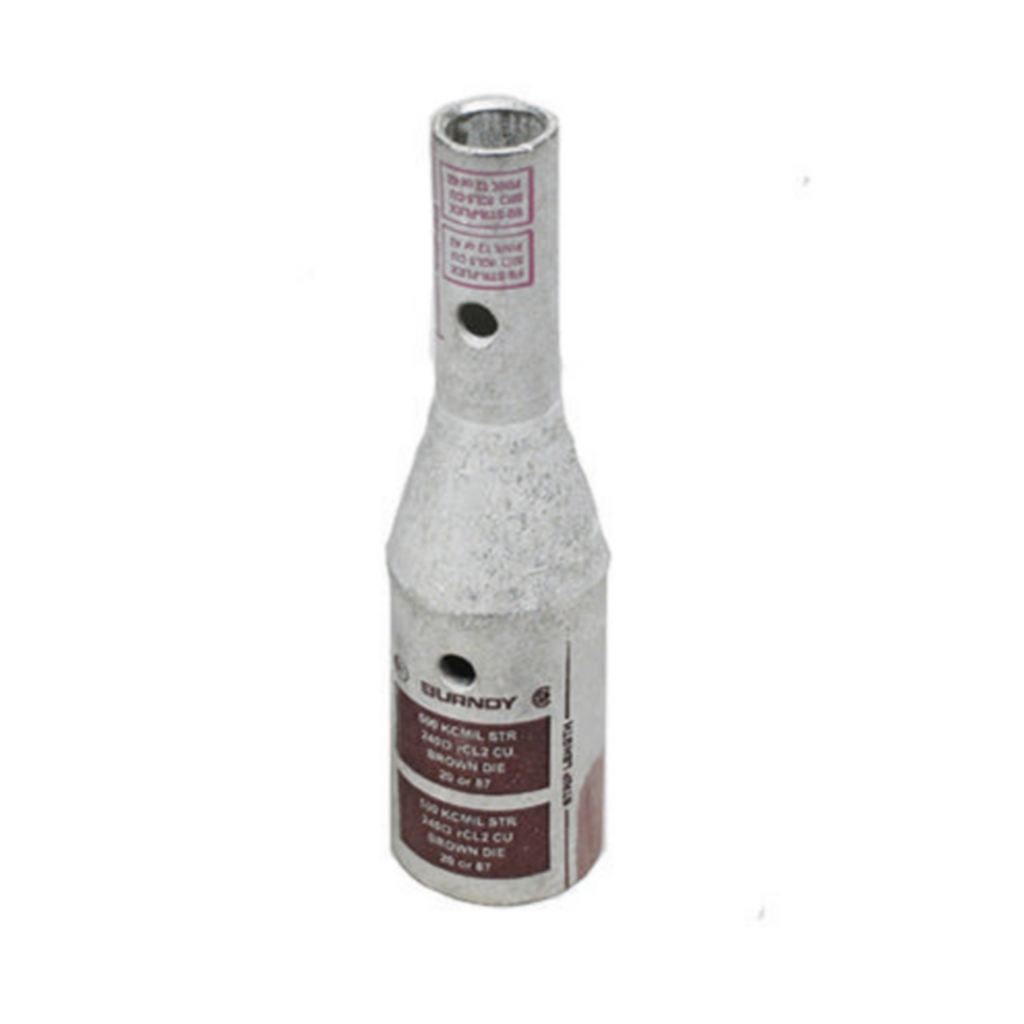

In-line Reducer Splice Kit – Copper Electrical Connector
The In-line Reducer Splice Kit is a compression copper connector designed for electrical distributors and switchgear suppliers requiring reliable wire and cable connections. This kit facilitates the reduction and splicing of electrical conductors, supporting applications up to 35,000 volts. It is suitable for use in lighting solutions and electrical distribution systems where flexible stranded copper conductors need secure and inspected connections.
Specifications
- Material: Copper
- Connection Type: Reducer; Splice
- Maximum Voltage: 35,000 volts
- Product Weight: 0.4470 lbs
- Barrel A Wire Size: 350 kcmil (Flexible Stranded)
- Barrel B Wire Size: 4/0 AWG (Flexible Stranded)
- Finish: Electro-Tin Plated
- Manufacturer Part Number: YSR34FX29FXLTCKITC
- UPC: 781810472354
Features
- Compression type connection ensuring secure mechanical and electrical continuity
- Includes inspection window for cable inspection on each side
- Standard barrels with color code, wire strip length, and crimp placement indications
- Electro-tin plated for corrosion resistance and enhanced conductivity
- Kit includes heat shrink tubing for environmental protection
- Suitable for flexible stranded copper conductors
