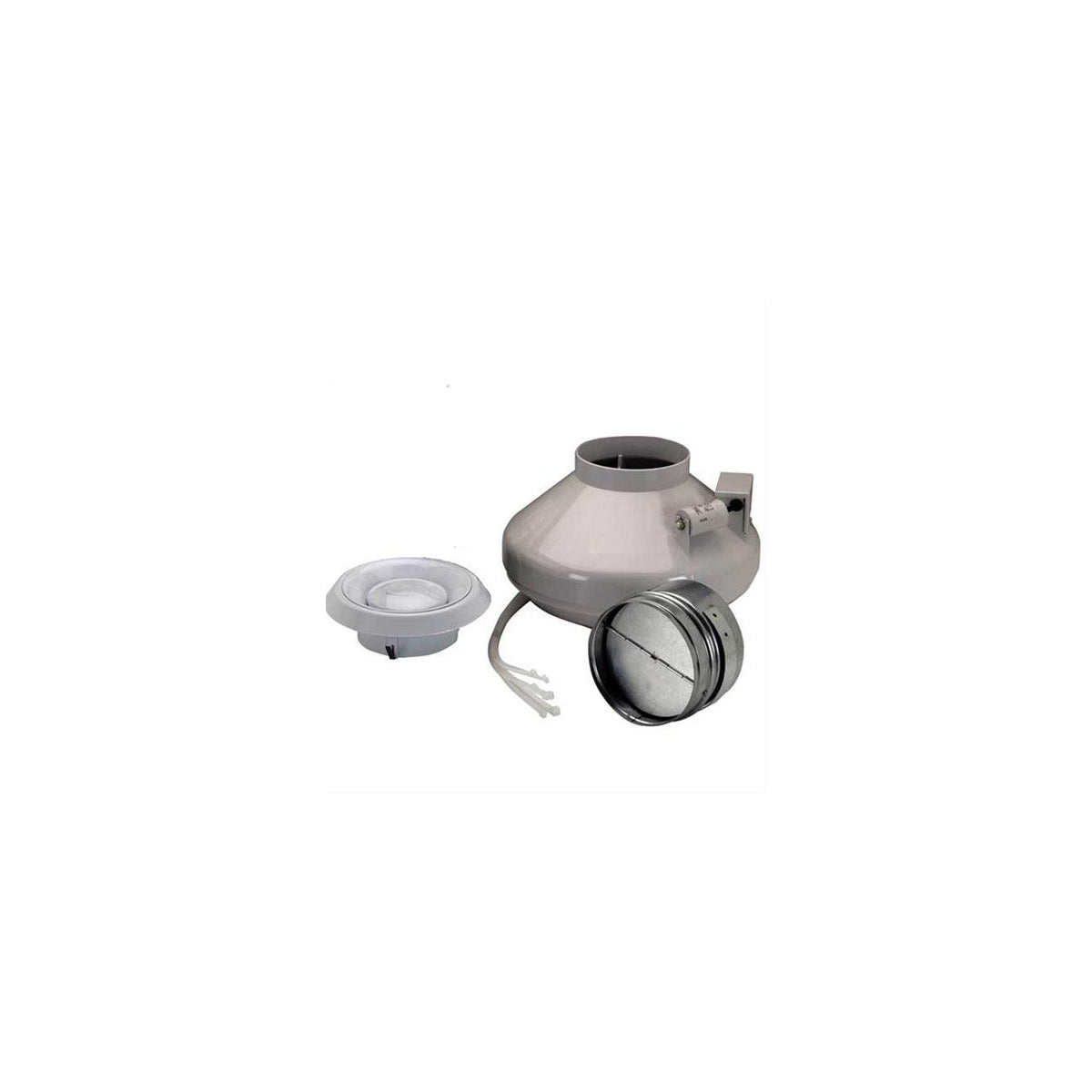

In-Line Fan Kit, 110 CFM Ventilation Fan Recognized as ENERGY STAR Most Efficient 2018

This in-line ventilation fan kit by NuTone offers a remote-mounted solution designed to reduce noise in occupied spaces while providing efficient air delivery. Ideal for residential applications, it allows installation in discreet locations such as attics or basements, making it suitable for large, open areas. The fan is recognized as ENERGY STAR Most Efficient 2018, reflecting its energy-efficient operation. Electrical distributors and lighting solutions providers will find this product useful for wire and cable systems requiring quiet, effective ventilation. It is a practical option for switchgear suppliers needing reliable ventilation components.

Specifications

• Manufacturer: NuTone
• Manufacturer Part Number: ILFK120
• Air Delivery: 110 CFM (52 L/s) at 0.2" static pressure
• Housing Material: Durable polycarbonate plastic
• Motor Type: External rotor, ball bearing, 115 VAC, 60 Hz
• Blower Wheel: Backward inclined centrifugal
• Duct Size: 4 inch (102 mm) diameter
• Power Consumption: 46 Watts
• Current Draw: 0.2 Amps
• Product Weight: 6.1 lbs
• UPC: 784891206504
• Certifications: ENERGY STAR Most Efficient 2018, UL Listed

Features

• Remote mounting reduces noise in living areas
• High-performance fan with quiet operation
• Easy mounting to rafters or joists with included bracket
• Compatible with solid state speed controls
• Suitable for use over tubs or showers when connected to GFCI-protected circuits
• Backward inclined centrifugal fan ensures strong air delivery with minimal noise
• Complete installation instructions included

Downloads & Links

• Installation Guide
• Spec Sheet
