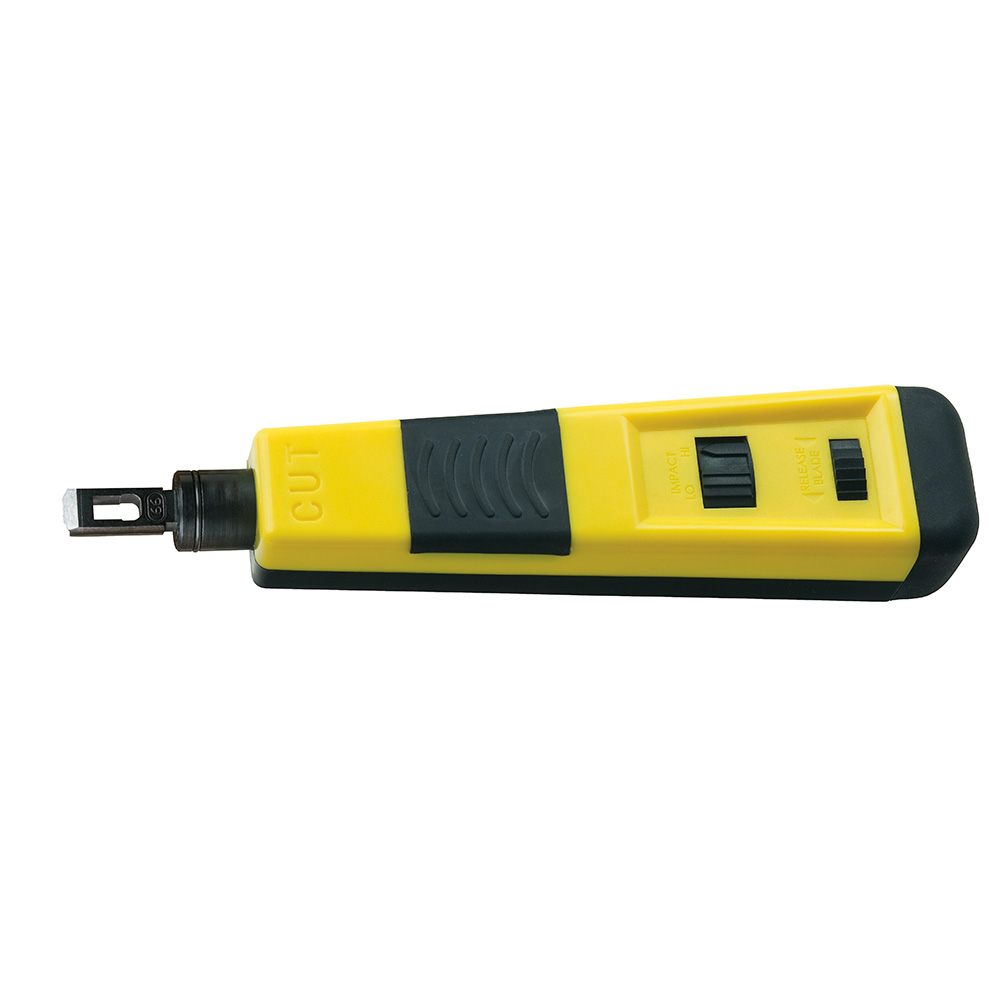

Impact Punchdown Tool, 66/110 Blade – Cable Termination Tool

The Impact Punchdown Tool with a combination 66/110 type blade is designed for cutting and terminating cable in various cross-connect panels, blocks, and keystone jacks. It is suitable for electrical distributors and switchgear suppliers requiring reliable wire and cable termination solutions. The tool is spring-loaded to provide fast, low-effort seating and terminating. It features selectable high and low impact-force settings, meeting industry standard specification 8762D. The cut side of the blade is color-coded yellow for easy identification.

Specifications

• Application: Cable Termination
• Overall Length: 7" (17.8 cm)
• Weight: 7 oz (200 g)

Features

• Combination 66/110 type blade for versatile cable termination
• Spring-loaded mechanism for fast and low-effort operation
• Selectable high/low impact-force settings to meet industry standards
• Color-coded yellow cut side for easy blade identification

Downloads & Links

• Spec Sheet
• Instructions (Blade)
• Instructions (Punchdown Tool)
