Description

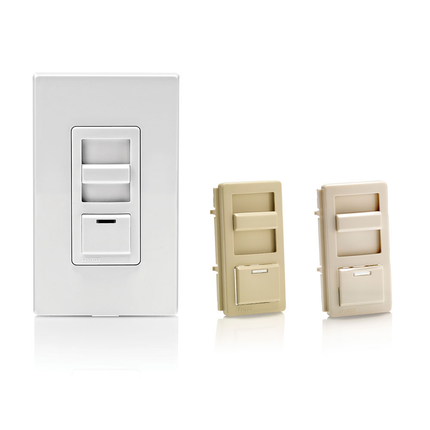

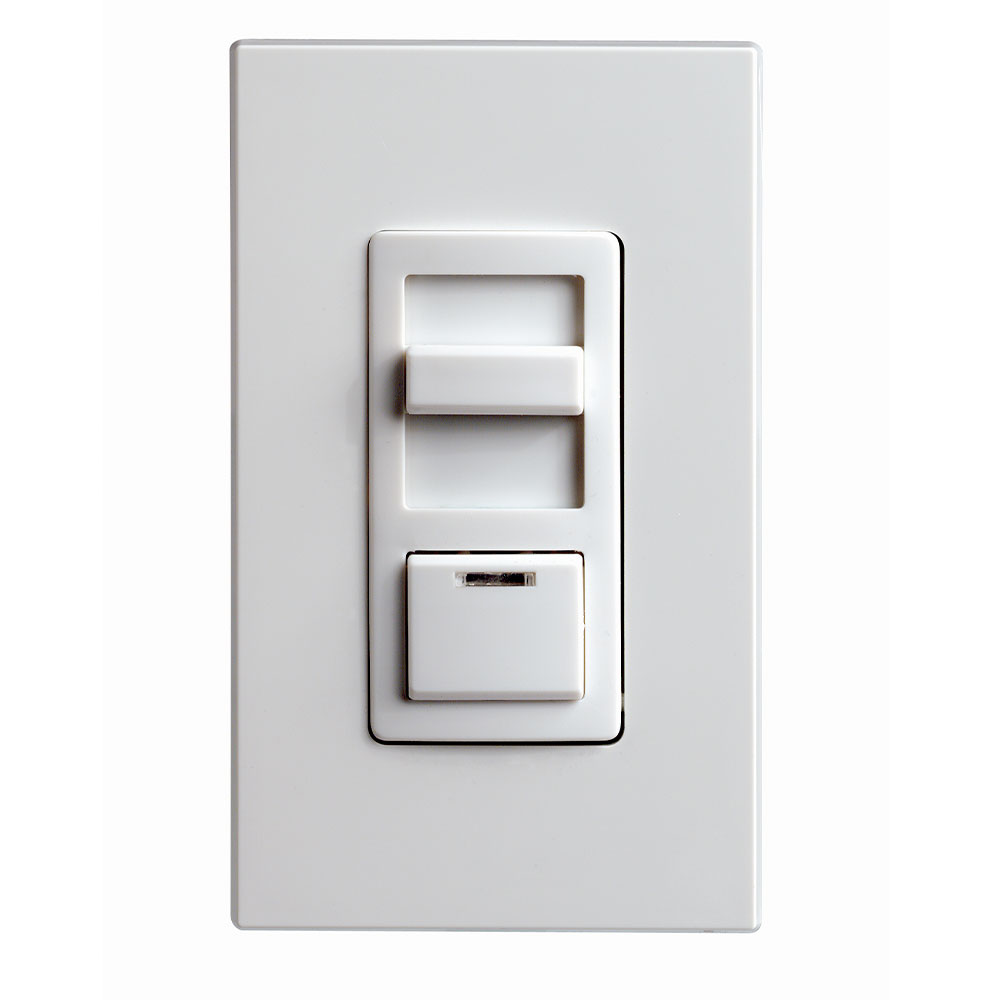

The IllumaTech Dimmer Switch provides precise light control for dimmable 0-10V LED fixtures and Mark 7 Fluorescent Ballasts. It offers smooth dimming functionality in institutional and other spaces where adjustable lighting levels are required for ceiling fixtures.
Compatibility: Designed for both 0-10V LED drivers and Mark 7 fluorescent ballast systems
Control range: Provides full-range dimming from bright to low light levels
Installation: Standard wall-box mounting for single pole or double pole installation, offering straightforward replacement of conventional toggle switches
Interface: User-friendly slider or button operation for intuitive light adjustment
Circuitry: Solid-state electronics ensure reliable, consistent performance with stable voltage control
The IllumaTech Dimmer Switch provides precise lighting control for dimmable LED fixtures with 0-10 Volt power supplies and Mark 7 fluorescent ballasts. It offers smooth dimming capability in residential and business spaces without requiring additional power packs for switching operations.
Compatibility: Designed for dual voltage 120 volts/277 volts with 50 milliamperes maximum sink current
Installation flexibility: Functions in single-pole or 3-way configurations when paired with a 3-way switch

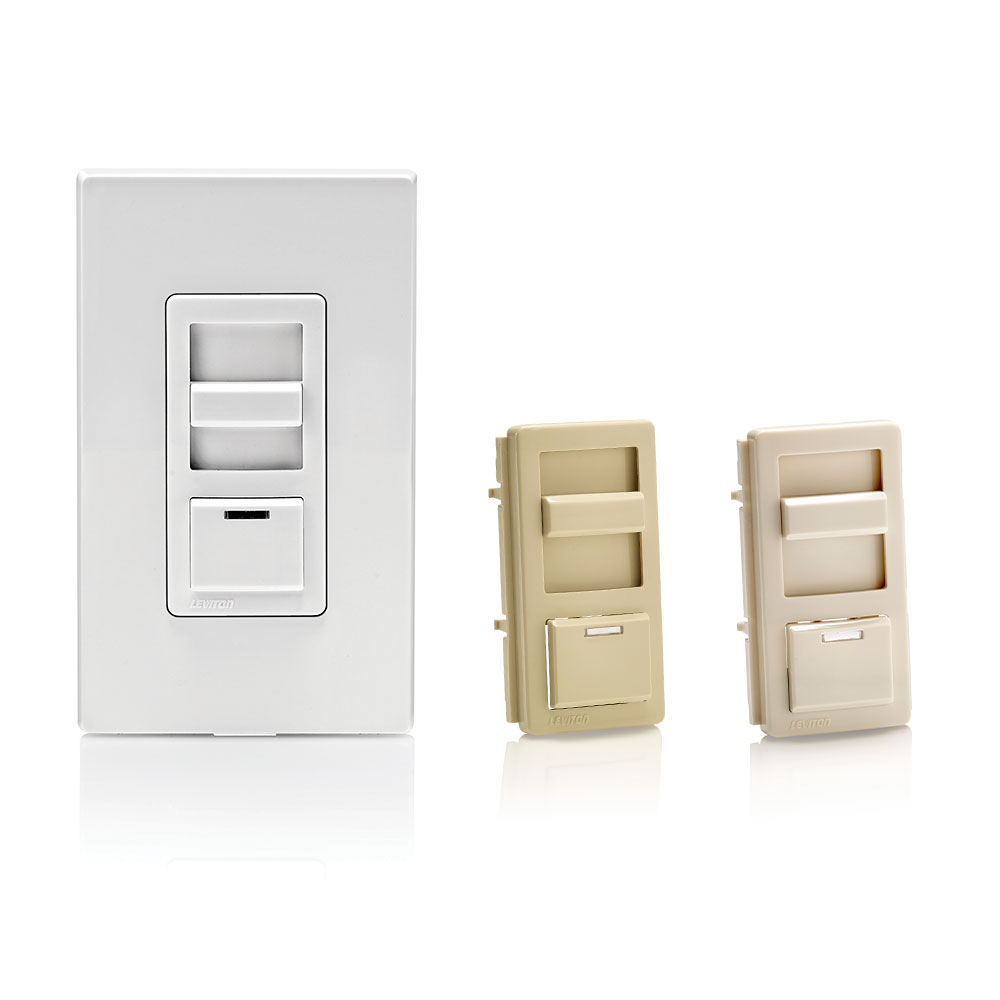

Design options: Includes three changeable faceplates in white, ivory, and light almond finishes
User experience: Features fluid slide movement with captive wraparound bar for adjustable, effortless light adjustment
Mounting: Compatible with Decora Plus screwless and standard designer wallplates (sold separately)
Features
Designed specifically for use with LED fixtures using 0-10V power supplies and Mark 7® 0-10V fluorescent ballasts
Dual voltage 120V/277V; 50mAmps maximum sink current
No power pack required for switching
Provides single pole or 3-way lighting control when used with a 3-way switch
Compatible with Decora Plus™ screwless and Decora standard designer wallplates (sold separately)
Six product options in each box with three changeable faceplates and single pole or 3-way functionality when used with a 3-way switch
Fluid slide movement allows fine adjustment of light level with minimal effort
Captive wraparound slide bar remains securely attached
INNOVATIVE – Designed for use with LED fixtures using 0-10V power supplies
ADVANCED – No power pack required for switching
EXCEPTIONAL – Superior quality and dimming performance
FLEXIBLE – Can be used in a single-pole or 3-way installation (with a 3-way switch, sold separately)
Specifications
Country of Origin: China
RoHS Compliant: True
Product Features
Action: Standard ON/OFF
Available Color Kits: Ivry-I Wht-W Gry-G Blk-E Brwn-B Light Almond-T, R-Red
Color: White, Ivory, Light Almond
Color Change Kit: IPKIT Series
Frequency: 60 Hz
Light: LED Locator Light
Load Rating: 1200VA
Load Type: Electronic 0-10VDC Fluorescent and 0-10VDC LED Power Supply
Ordering Notes: Incl White, Ivory and Light Almond Color Kit
