Features

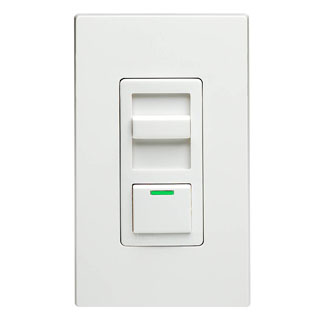

• Leviton offers many products that will help lower electrical costs and add convenience to everyday living. By simply replacing standard switches with dimmers reduces energy consumption and extends bulb life. IllumaTech Preset Dimmers and Fan Speed Controls feature a low-profile fluid slide bar movement for fine adjustment of light levels or fan speeds that’s accompanied by an easy-to-use ON/OFF preset switch. The switch provides quick ON/OFF control without disturbing your favorite pre-selected settings. Most feature a built-in LED locator light, as well. Models are available for incandescent, magnetic or electronic low-voltage, and Mark 10 Powerline dimming-ballast fluorescent lighting, and quiet and standard fan speed control.

Specifications

• Country of Origin: China
• RoHS Compliant: True

Product Features

• Action: Standard ON/OFF
• Available Color Kits: Ivry-I Wht-W Gry-G Blk-E Brwn-B Light Almond-T, R-Red
• Color: White, Ivory, Light Almond
• Color Change Kit: IPKIT Series
• Frequency: 60 Hz
• Light: LED Locator Light
• Load Rating: 1000VA 750W
• Load Type: Magnetic Low-Voltage
• Ordering Notes: Incl White, Ivory and Light Almond Color Kit
• Preset: Preset
• Protection: Radio/TV Filter
• Standards and Certifications: UL/CSA
• Style Name: IllumaTech
• Switch Type: Single-Pole & 3-Way
• Type: Slide
• Voltage: 120 VAC
• Wallplate: Order Separately
• Warranty: 5-Year Limited
