IG4710, Locking Device Receptacle – Industrial Electrical Distributor

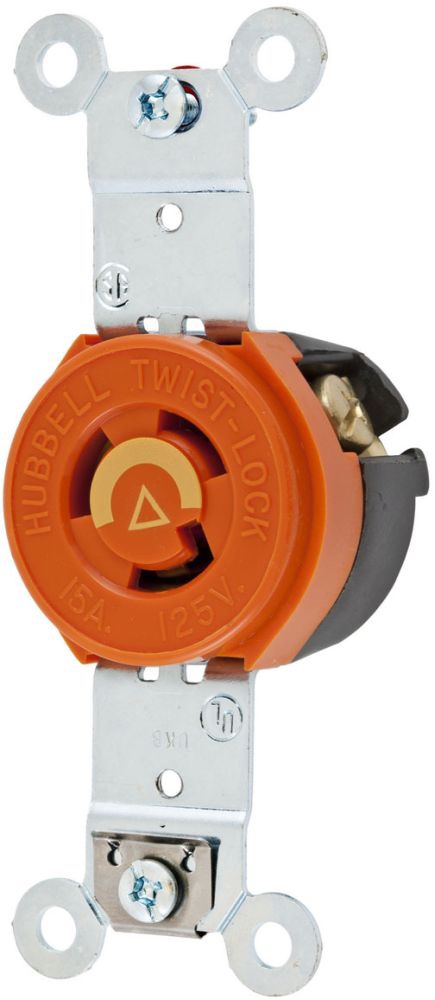

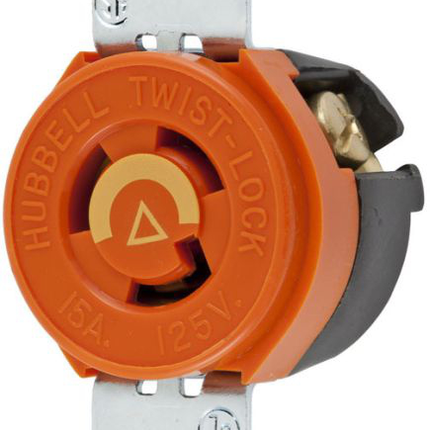

The IG4710 Locking Device Receptacle by Hubbell Wiring Device-Kellems is designed for heavy-duty industrial applications requiring secure and reliable electrical connections. This 15-ampere, 2-pole, 3-wire receptacle features insulation barrier construction that isolates ground contacts from the mounting strip, providing a clean, noise-free ground ideal for sensitive equipment. Suitable for indoor dry environments unless additional protection is applied, it supports 0.5 horsepower loads and complies with NEMA L6-15R standards. The device is mounted via screw mount and wired through screw terminals, making it compatible with standard industrial wiring practices.

Specifications

• Application: Heavy Duty Industrial
• Current: 15 amperes
• Amperage Rating: 15 A
• Material: Thermoplastic
• Mounting: Screw Mount
• Connection: Screw Terminals
• Horsepower: 0.5 horse power
• NEMA Rating: L6-15R
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire
• Dielectric Strength: Withstands 2,000V minimum
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means

Features

• Insulation barrier construction isolates ground contacts from mounting strip for noise-free grounding
• Designed to reduce electromagnetic interference for sensitive equipment
• Mounting strap includes approved grounding clip for grounded metallic boxes
• Compatible with standard copper conductors and industrial wiring codes
