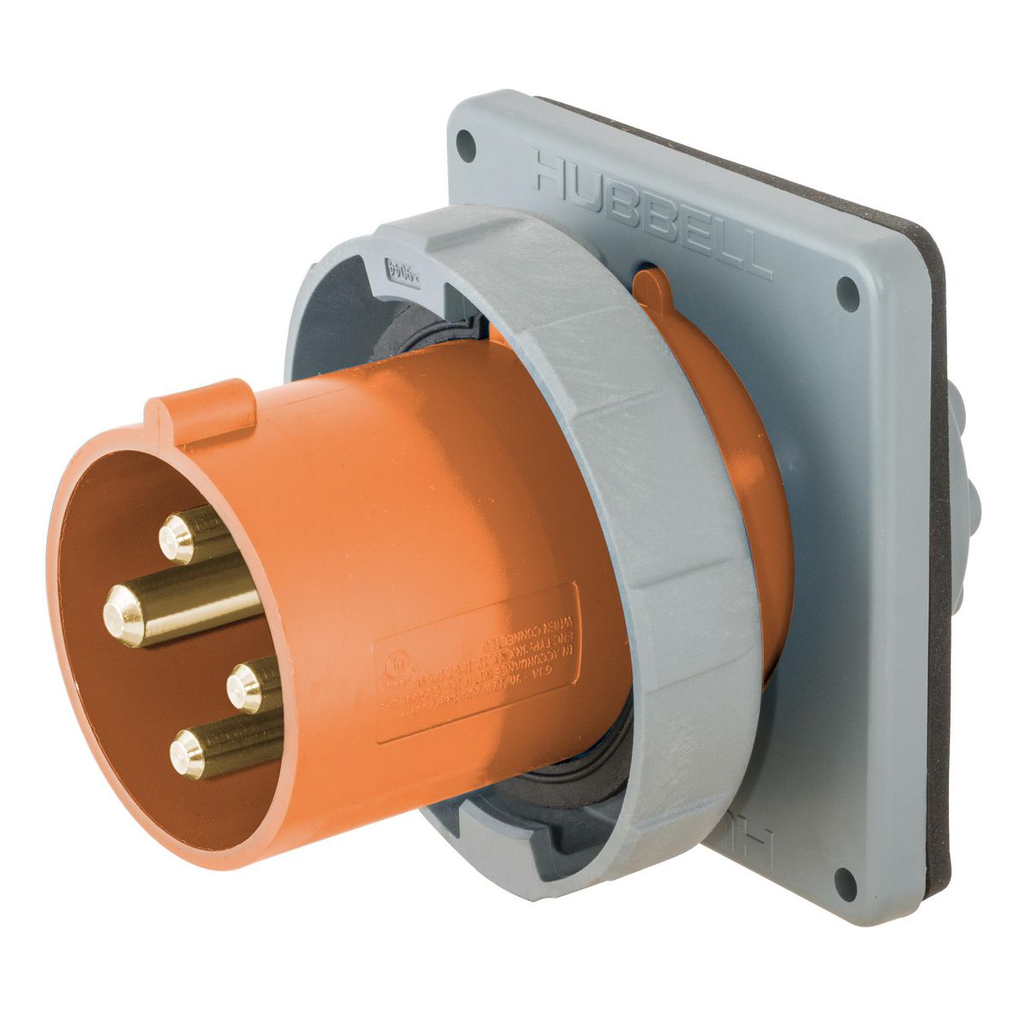

IEC Pin and Sleeve Male Flanged Inlet 30A Watertight

This IEC Pin and Sleeve Male Flanged Inlet is designed for high ampacity watertight connections in industrial electrical applications. Suitable for use by electrical distributors and switchgear suppliers, it provides a reliable, heavy-duty connection for wire and cable systems requiring 30 amperes at 125/250 volts. The device features a 3-pole, 4-wire grounding configuration and is constructed to ensure durability and safety in demanding environments.

Specifications

• Application: High Ampacity Watertight Connections
• Current: 30 amperes
• Amperage Rating: 30 A
• Voltage: 125/250 V
• Number of Poles: 3-Pole
• Number of Wires: 4-Wire
• Material: Thermoplastic
• Color: Orange
• Mounting: Screw Mount
• Connection: Pressure Screw Terminals
• Insulation: Insulated Body
• Dielectric Strength: Withstands 3000V Minimum
• Environmental Conditions: Watertight
• Product Weight: 1.05 lbs
• Width: 4.8 in
• Manufacturer: Hubbell Wiring Device-Kellems
• Country of Origin: Puerto Rico
• Manufacturer Part #: HBL430B12W
• NEMA Rating: Non-NEMA

Features

• Heavy duty IEC pin and sleeve design for industrial grade applications
• Watertight construction suitable for harsh environmental conditions
• Flanged inlet design for secure mounting and installation
• Pressure screw terminals ensure reliable electrical connections
• Insulated body enhances safety and reduces risk of electrical shock
