IE-120, AC Line Filter for Industrial Electrical Applications

The IE-120 is a high-frequency noise filter and surge suppressor designed for critical industrial loads drawing up to 20 Amps of continuous current. It is ideal for microprocessor-based products such as industrial PLCs, OEM applications, and motion control systems. This device is suitable for use by electrical distributors and switchgear suppliers looking to provide reliable protection and filtering solutions in industrial control panels.

Specifications

• Nominal Operating Voltage: 120 VAC, Single Phase
• Operating Voltage Range: 120 VAC ¬± 25%
• Operating Frequency Range: 47 - 63 Hz
• Rated Output Current: 20 Amperes
• Connection/Mounting Type: Series Terminal (Finger Safe) / DIN Rail or Flange

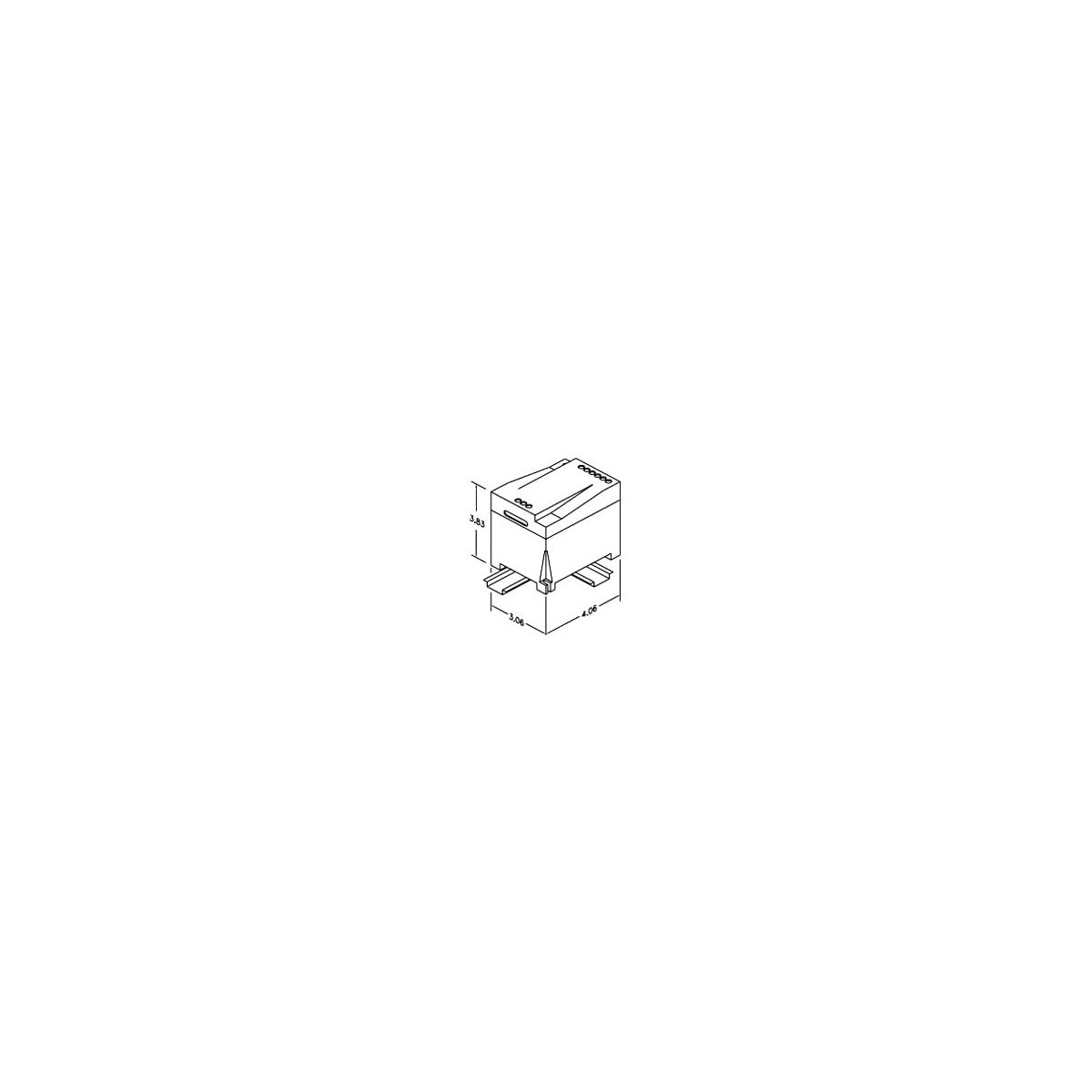

• Size: 4.06 x 3.06 x 3.83 inches (L x W x H)
• Enclosure: High Impact Plastic
• Weight: Less than 3 lbs
• Modes of Protection: Line to Neutral (L-N), Line to Ground (L-G), Neutral to Ground (N-G)
• Operating Temperature: -40¬∞C to 45¬∞C
• Operating Humidity: 0% to 95% Non-condensing
• Response Time: Less than 0.5 ns (Normal Mode), Less than 5 ns (Common Mode)
• Peak Surge Current Capability (8 x 20 ¬µs): 45,000 Amps Total
• Maximum Continuous Operating Voltage (MCOV): 150 VRMS Line to Neutral
• Frequency Response: 100 kHz to 50 MHz (Normal Mode), 5 MHz to 50 MHz (Common Mode)
• Certifications: UL 1283, UL 1449 Third Edition (2009), CUL, CE, RoHS Compliant
• Warranty: 10 Years

Features

• Multi-staged design with hybrid clamping network and active tracking technology
• Surge current capacity up to 45,000 Amps
• Transient protection across all modes: line to neutral, line to ground, and neutral to ground
• LED status indication and Form C contact for remote monitoring
• DIN rail and flange mountable enclosure for easy integration into control panels
• Meets ANSI/IEEE C62.41 Category A & B ringwave standards
• Compact size and lightweight for efficient panel space usage
