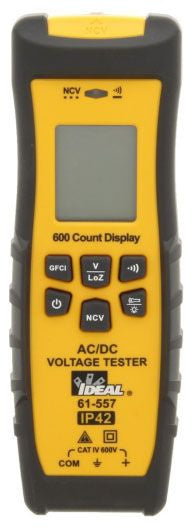

IDEAL 61-557 Voltage and Continuity Tester with LCD – Electrical Testing Equipment

The IDEAL 61-557 Voltage and Continuity Tester is a versatile electrical testing tool designed for accurate detection and measurement of AC/DC voltage and continuity. Suitable for electrical distributors, lighting solutions providers, wire and cable specialists, and switchgear suppliers, this tester offers essential functions including non-contact voltage detection, GFCI testing, and a backlit LCD display for improved visibility in various working conditions.

Specifications

• Manufacturer: IDEAL Industries
• Manufacturer Part #: 61-557
• AC Voltage Range: 6 to 600V
• DC Voltage Range: 6 to 600V
• CAT Safety Rating: CAT IV 600V
• Ingress Protection: IP42
• Display: 600 count LCD with backlight
• Battery Type: 3 x 1.5V AAA
• Product Weight: 0.6900 lbs

Features

• Non-Contact Voltage (NCV) detection with audible indication
• GFCI test capability
• Low Impedance (LoZ) mode to eliminate ghost voltage
• Backlit display for use in low-light environments
• Universal magnetic strap clip for hands-free operation
• Probe holder for convenient test lead storage
• Auto-ranging functionality
• Auto-power off to conserve battery life
• Low battery indicator

Downloads & Links

• Spec Sheet
