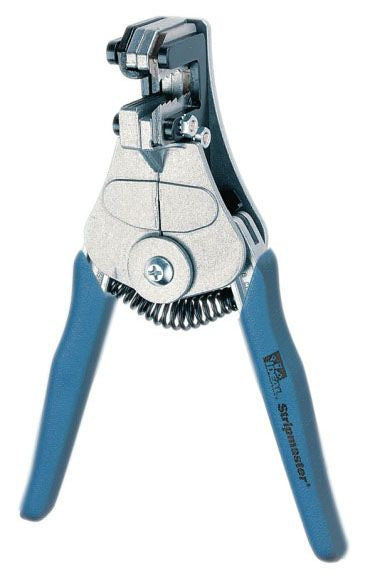

IDEAL 45-892 CUSTOM STEEL STRIPMASTER Wire Stripper

The IDEAL 45-892 Custom Steel Stripmaster is a precision wire stripper designed for efficient and accurate stripping of 22 AWG wire with a .038 inch blade gap. Ideal for electrical distributors and lighting solutions manufacturers, this tool supports non-precision and precision wire stripping applications, including multi-conductor cable preparation. Its durable die-cast zinc construction and mechanical leverage reduce operator effort, making it suitable for wire and cable handling in switchgear and other electrical assembly environments.

Specifications

• Application: .038 Gap, 22 AWG
• Product Weight: 0.9 lbs
• Manufacturer: Ideal Industries
• Manufacturer Part #: 45-892
• Blade Gap (Vertical Height): .038 in.
• Wire Size: 22 AWG multi-conductor
• Strips 30 - 10 AWG solid or stranded wire
• Meets SAE-AS5768 standards

Features

• Precision mil-spec die-type blades for accurate stripping
• Inner cutting hole sized to conductor and counter-bored holes sized to insulation
• Replaceable grippers for extended tool life
• Optional short stop-latch and transparent wire stop for consistent strip lengths
• Cushioned, comfort grip handles for reduced operator fatigue
• Lightweight die-cast zinc construction for mobility and durability
• Spring-action mechanical design provides extra leverage
• Customizable with choice of gripper pads and blade sets
• 90-day warranty
