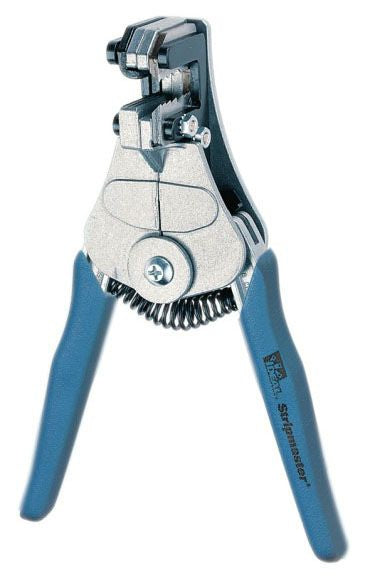

IDEAL 45-891 CUSTOM STEEL STRIPMASTER Wire Stripper for Precision Wire Stripping

The IDEAL 45-891 Custom Steel Stripmaster is a precision wire stripper designed for fast, accurate stripping of 24 AWG wire with a .030 inch blade gap. This tool is suitable for electrical distributors and switchgear suppliers requiring reliable wire preparation in lighting solutions, wire and cable assembly, and other electrical applications. It features a sturdy die-cast zinc frame and precision mil-spec die-type blades that allow for clean stripping without nicking or fraying.

Specifications

• Application: .030 Gap, 24 AWG
• Product Weight: 0.9500 lbs
• Manufacturer: Ideal Industries
• Manufacturer Part #: 45-891
• Blade Gap (Vertical Height): .030 in.
• Wire Size: 24 AWG multi-conductor

Features

• Strips 30 - 10 AWG solid or stranded wire
• Mil-spec die-type blades for precision stripping
• Inner cutting hole sized to conductor and counter-bored holes sized to insulation
• Replaceable grippers for extended tool life
• Optional short stop-latch and transparent wire stop for consistent strip lengths
• Cushioned, comfort grip handles for reduced operator fatigue
• Light-weight die-cast zinc frame designed for mobility and high productivity
• Meets SAE-AS5768 standards for precision wire stripping
• 90-day warranty
