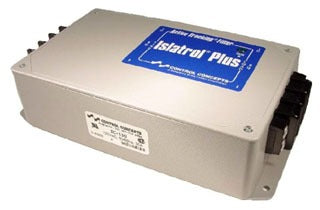

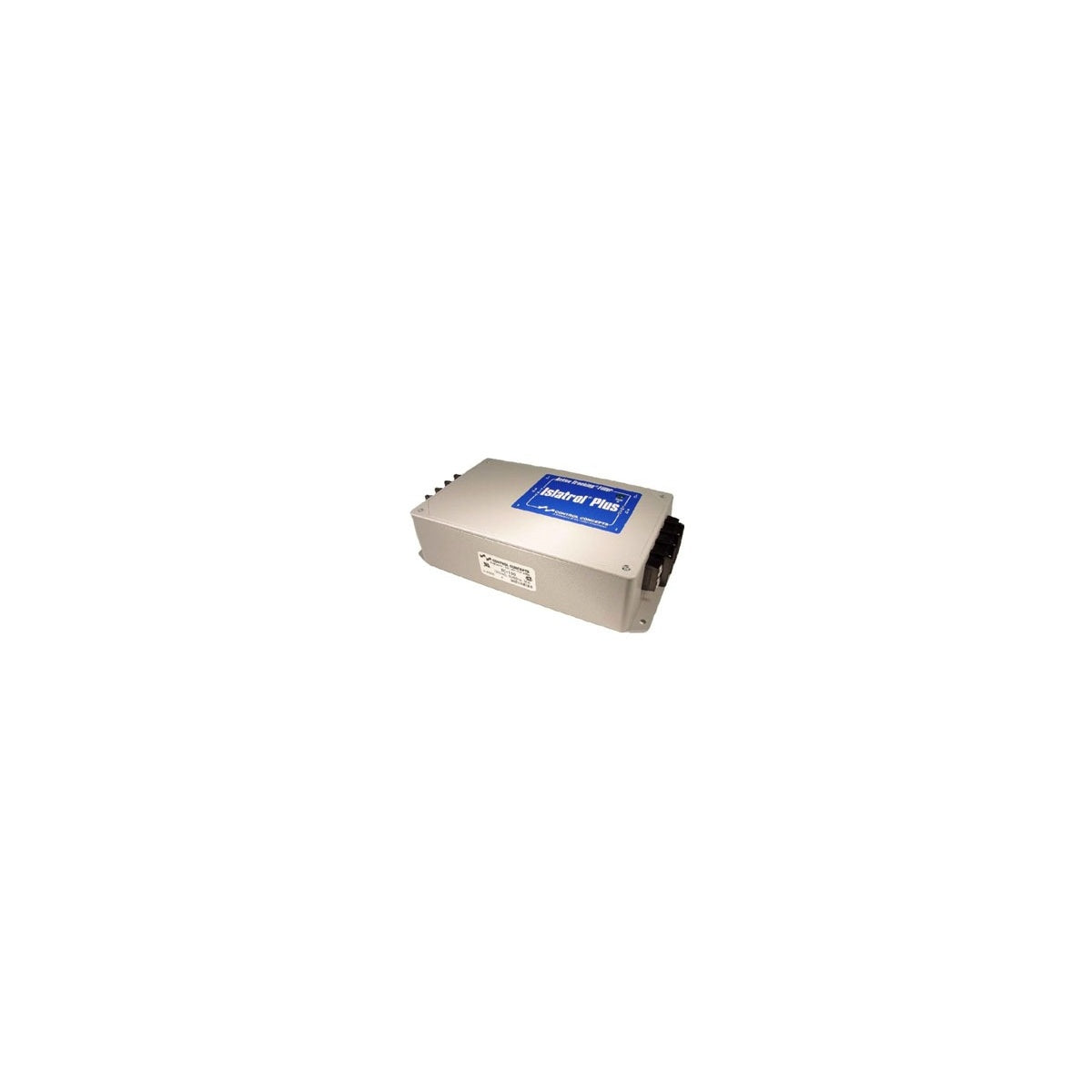

IC+230, High Frequency Noise Filter

The IC+230 is a high-frequency noise filter designed for industrial and office equipment, including computers operating in harsh environments. It provides effective transient protection and noise attenuation, suitable for electrical distributors and switchgear suppliers requiring reliable filtering solutions for wire and cable systems.

Specifications

• Current Rating: 30 amperes
• Frequency Rating: 47 to 63 Hz
• Protection Mode: Line to Neutral (L-N), Line to Ground (L-G), Neutral to Ground (N-G)
• Noise Attenuation: 90 dB minimum at 100 kHz to 50 MHz (Normal Mode), 60 dB minimum at 5 MHz to 50 MHz (Common Mode)
• Maximum Continuous Operating Voltage (MCOV): 240 V
• Operating Temperature: -40 to 45 ¬∞C
• Dimensions: 7.75 inches Length x 4.75 inches Width x 2.35 inches Height
• Mounting Type: Flange
• Product Weight: 5.3 lbs
• Certifications: UL 1283, CSA

Features

• Typically reduces normal mode transients to ¬±2 volts
• Surge current capacity of 45,000 Amps
• Transient protection in all modes: line to neutral, line to ground, and neutral to ground
• LED power indication for operational status
• Active Tracking Filter technology with <1 nanosecond response time
• Solid-state resettable fuses (PTCs) and silicon breakover technology
• Epoxy encapsulated with vacuum impregnated magnetics for durability
• 10-year warranty
