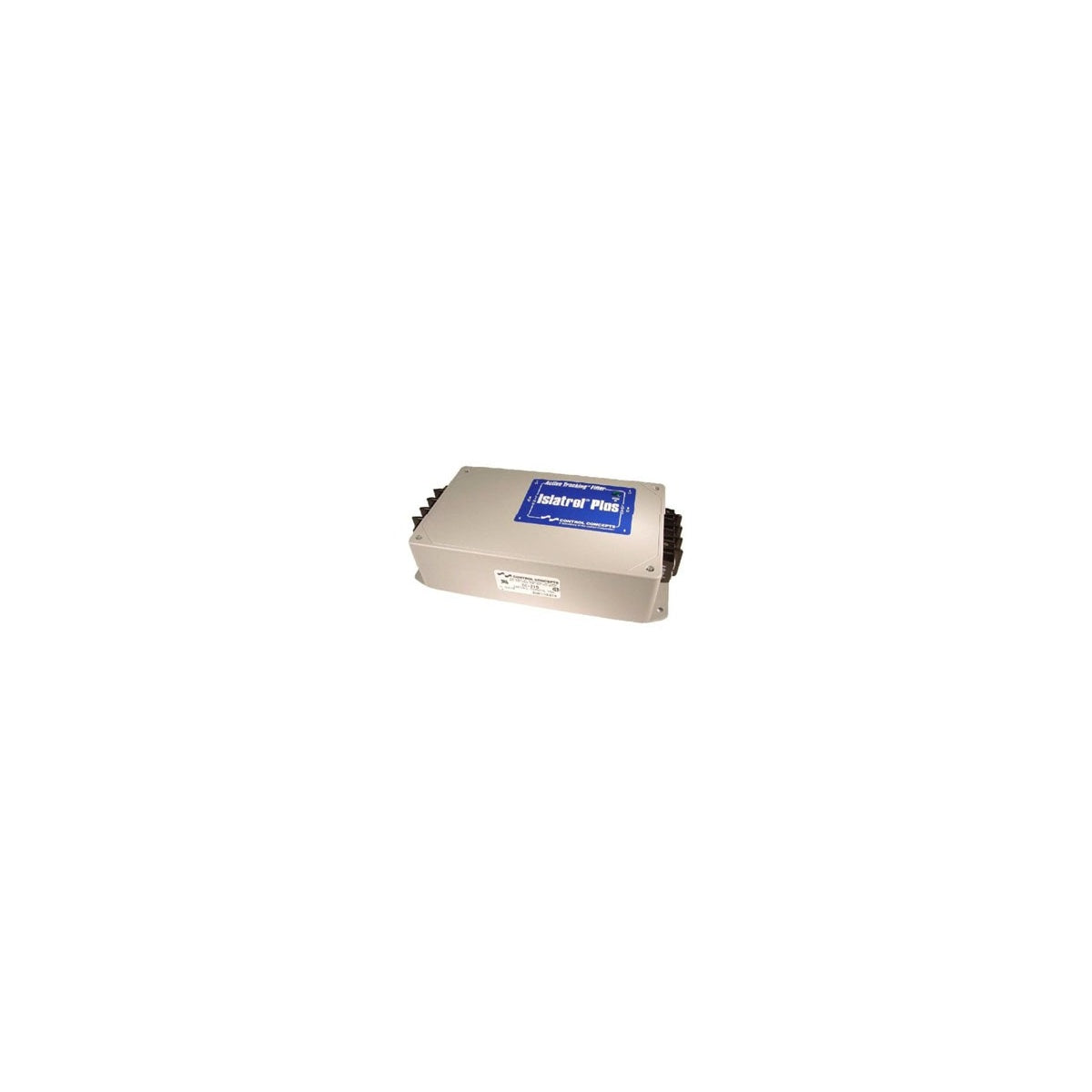

IC+215, High Frequency Noise Filter

The IC+215 High Frequency Noise Filter by Emerson is designed to provide effective noise attenuation and transient protection for industrial and office equipment, including computers. This filter supports a current rating of 15 amperes and operates within a frequency range of 47 to 63 Hz. It offers protection modes for line-to-neutral, line-to-ground, and neutral-to-ground, making it suitable for critical load applications in harsh electrical environments. The product features LED status indication and is UL 1283 and CSA approved, making it a reliable choice for electrical distributors and lighting solutions providers seeking quality wire and cable accessories or switchgear components.

Specifications

• Current Rating: 15 amperes
• Frequency Rating: 47 to 63 Hz
• Protection Mode: Line-to-Neutral, Line-to-Ground, Neutral-to-Ground
• Noise Attenuation: 90 dB minimum at 100 kHz to 50 MHz (Normal Mode), 60 dB minimum at 5 MHz to 50 MHz (Common Mode)
• Maximum Continuous Operating Voltage (MCOV): 240 V
• Operating Temperature Range: -40 to 45 ¬∞C
• Dimensions: 7.75 inches (L) x 4.75 inches (W) x 2.35 inches (H)
• Mounting Type: Flange
• Product Weight: 5.75 lbs
• Certifications: UL 1283, CSA

Features

• High-frequency noise filter with transient protection
• Flexibility for receptacle/line cord or hard-wired connection
• LED power status indication
• Surge current capacity up to 45,000 Amps
• Reduces normal mode transients to ¬±2 volts
• Suitable for industrial and office equipment in harsh environments
• 10-year warranty

Downloads & Links

• Catalog
