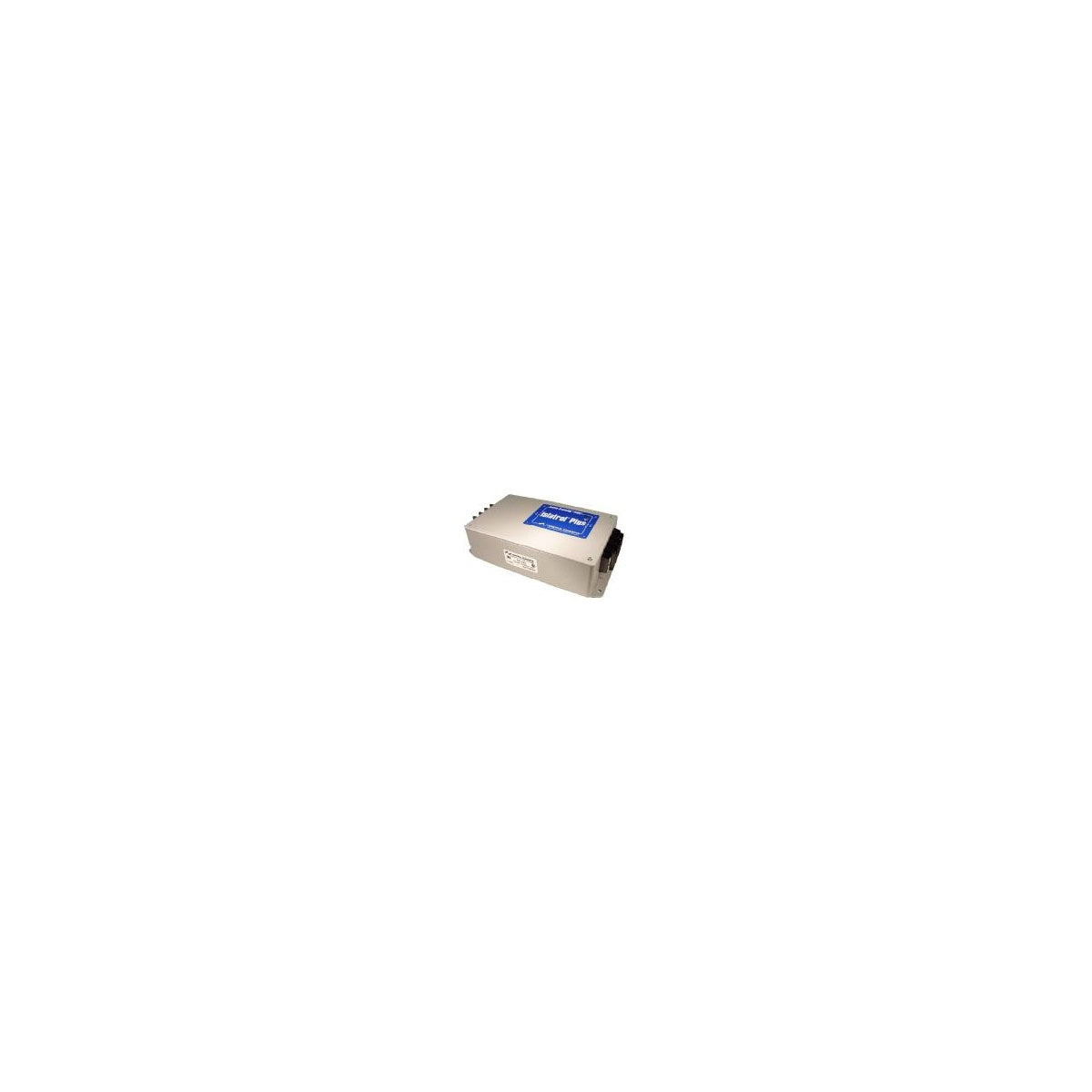

IC+130, High Frequency Noise Filter

The IC+130 High Frequency Noise Filter by Emerson is designed for industrial and office equipment, including computers operating in harsh environments. This active tracking filter provides transient protection and noise attenuation, making it suitable for electrical distributors and lighting solutions requiring reliable wire and cable noise suppression or switchgear supplier applications.

Specifications

• Current Rating: 30 amperes
• Frequency Rating: 47-63 Hz
• Protection Mode: L1-N/L1-2 (Normal Mode), L-G/N-G, L1-G/L2-G (Common Mode)
• Noise Attenuation: 90 dB minimum at 100 kHz to 50 MHz (Normal Mode), 60 dB minimum at 5 MHz to 50 MHz (Common Mode)
• MCOV: 120 V
• Operating Temperature: -40 to 45 ¬∞C
• Size: 7.75 inch L x 4.75 inch W x 2.35 inch H
• Material: High Impact Plastic Case, Vacuum Impregnated Magnetics, Epoxy Encapsulated
• Mounting Type: Flange (6.75 x 3.50 x 7.75 x 0.19 inch)
• Connection: Barrier strip at input and output with wire leads at input and output
• Environmental Conditions: Humidity 0 to 95%
• Approvals: UL 1283, CSA
• Product Weight: 5.85 lbs

Features

• Typically reduces normal mode transients to ¬±2 volts
• Surge current capacity of 45,000 Amps
• Transient protection in all modes: line to neutral, line to ground, and neutral to ground
• LED power indication
• Flexible connection options: receptacle/line cord or hard-wired to critical loads
• Category A Ringwave rating (6 kV, 200 A, 100 kHz)
• 10 year warranty
