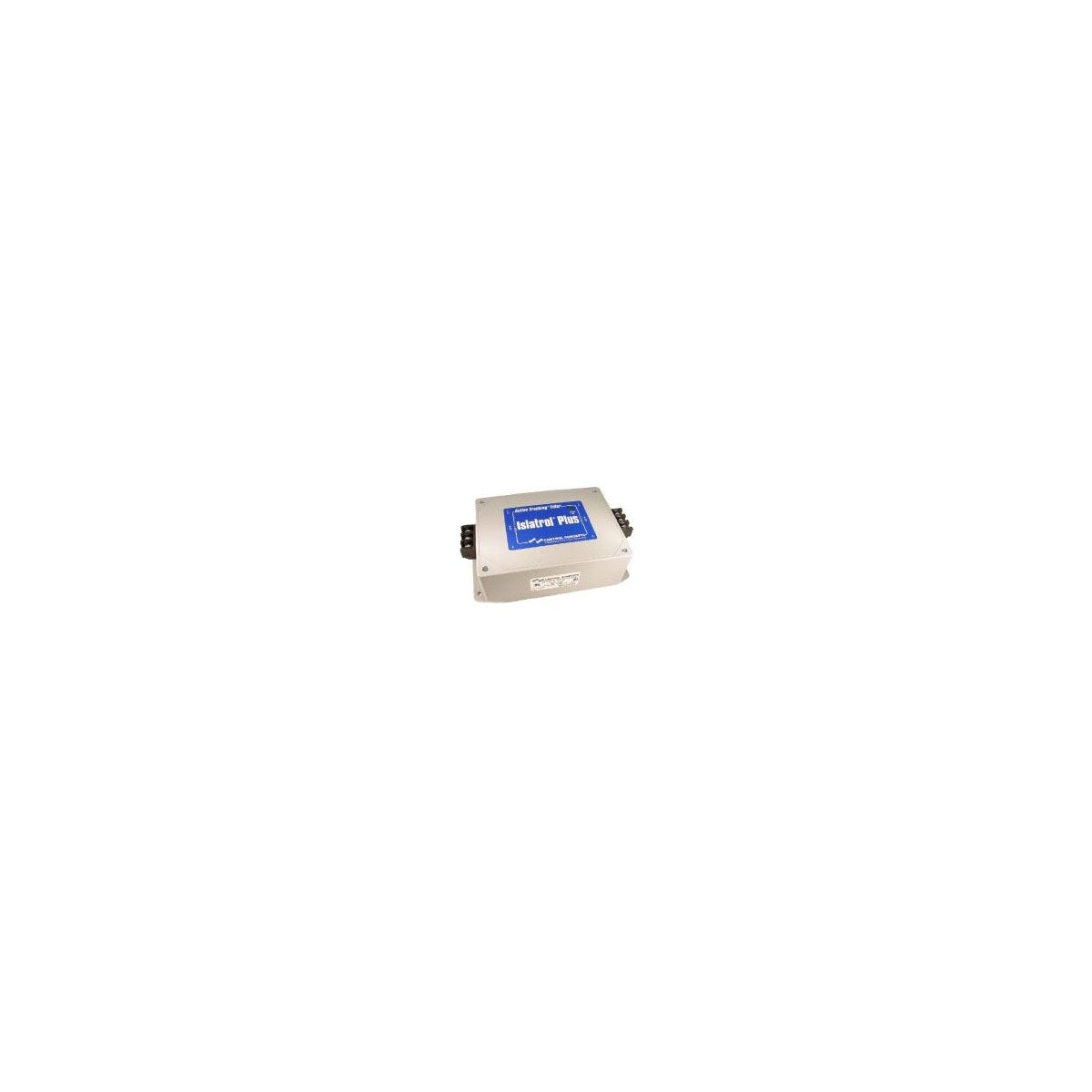

IC+115, High Frequency Noise Filter

The IC+115 High Frequency Noise Filter by Emerson is designed for industrial and office equipment, including computers operating in harsh environments. This active tracking filter provides high-frequency noise attenuation and transient protection, making it suitable for electrical distributors and switchgear suppliers seeking reliable noise filtering solutions.

Specifications

• Current Rating: 15 amperes
• Frequency Rating: 47 to 63 Hz
• Protection Mode: L1-N/L1-2 (Normal Mode), L-G/N-G, L1-G/L2-G (Common Mode)
• Noise Attenuation: 90 dB minimum at 100 kHz to 50 MHz (Normal Mode), 60 dB minimum at 5 MHz to 50 MHz (Common Mode)
• Maximum Continuous Operating Voltage (MCOV): 120 V
• Operating Temperature: -40 to 45 ¬∞C
• Operating Humidity: 0 to 95%
• Dimensions: 6.25 in (L) x 4.75 in (W) x 2.35 in (H)
• Mounting Type: Flange (Dimensions: 5.25 x 3.50 x 6.25 x 0.19 in)
• Connection: Barrier strip at input and output with wire leads at input and output
• Material: High impact plastic case, vacuum impregnated magnetics, epoxy encapsulated
• Approvals: UL 1283, CSA
• Product Weight: 4 lbs

Features

• Typically reduces normal mode transients to ¬±2 volts
• Surge current capacity of 45,000 Amps
• Transient protection in all modes: line to neutral, line to ground, and neutral to ground
• LED status indication for power
• Active tracking filter technology with response time < 0.5 ns (normal mode), < 5 ns (common mode)
• Flexible connection options including receptacle/line cord or hard-wired connection
• Category A Ringwave rating: 6 kV, 200 A, 100 kHz
• 10-year warranty
