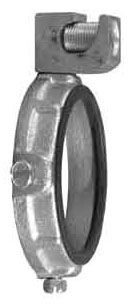

IBC-75LS-4AC IMC/Rigid Conduit Grounding Bushing

The IBC-75LS-4AC is an insulated grounding bushing designed for use with rigid conduit and intermediate metal conduit (IMC). It is intended to fasten and ground threadless rigid metal conduit to electrical enclosures, providing a secure and reliable grounding connection. This product is suitable for electrical distributors and lighting solutions providers dealing with wire and cable installations and switchgear components requiring dependable grounding hardware.

Specifications

• Application: For Rigid Conduit And IMC
• Material: Malleable Iron Body, Aluminum Lug, Steel Clamping Screw And Set Screws
• Finish: Zinc Plated Body, Tin Plated Lug, Zinc Plated Clamping Screw And Set Screws
• Connection: Set-Screw
• Diameter: 1-7/16 inches
• Height: 1/2 Inch
• Product Weight: 0.0900 lbs
• Manufacturer: O-Z Gedney
• Manufacturer Part #: IBC-75LS-4AC

Features

• Insulated bushing with aluminum lay-in lug for copper or aluminum conductors
• Set-screw connection allows fitting to lock bushing in any desired position
• Body is zinc plated malleable iron for corrosion resistance
• Lug is tin plated aluminum for reliable grounding
• Clamping and set screws are zinc plated steel for durability
• UL Listed for use with copper or aluminum grounding conductors (UL Standard 467, UL Listed E6581)
• Temperature rating up to +150 ¬∞C (+302 ¬∞F)
• Self-extinguishing insulating liner resists corrosion, chemicals, and temperature extremes
• Plastic liner prevents abrasion on cable insulation, allowing wire pulls with minimal friction
