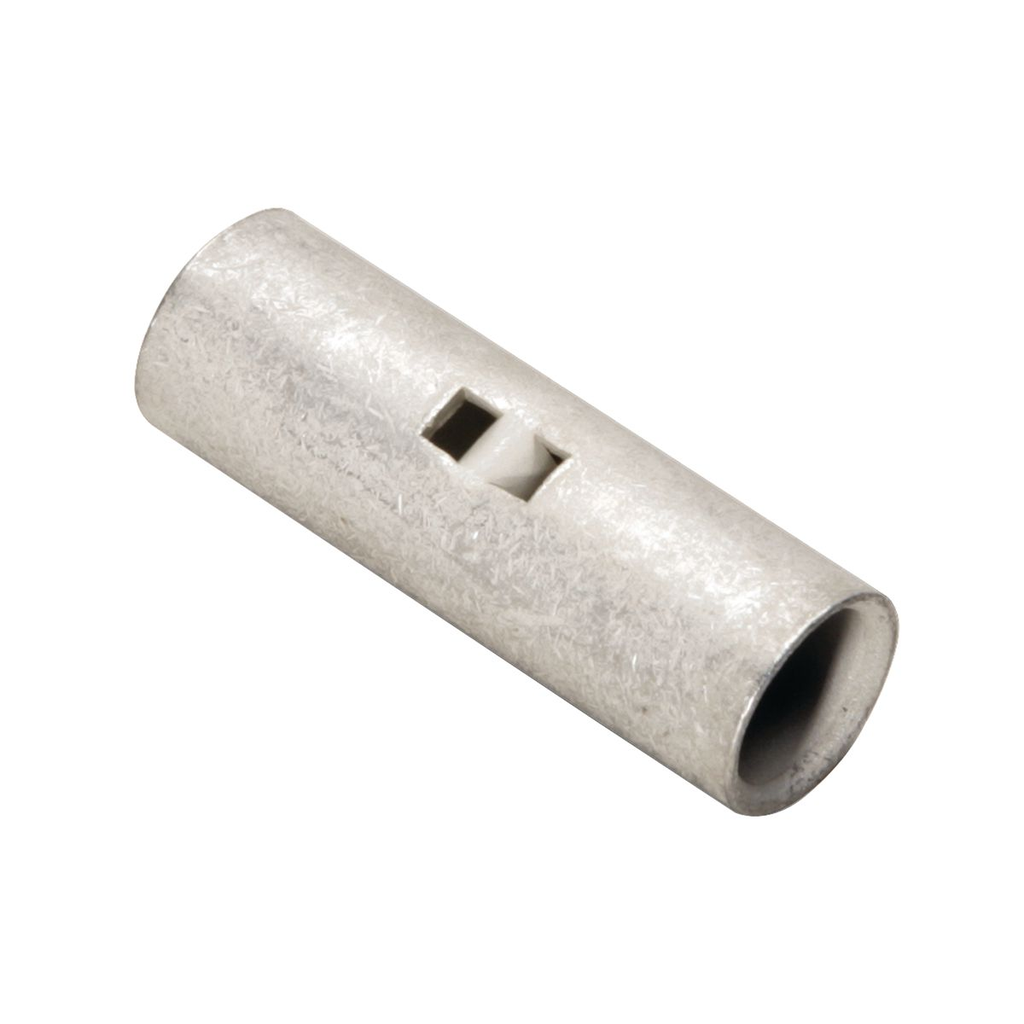

HYLINK™ Uninsulated Compression Butt Splice for Electrical Wire Connections

The HYLINK™ Uninsulated Compression Butt Splice by Burndy is designed for secure electrical connections in aircraft, light duty industrial, and general purpose applications. This seamless standard barrel splice accommodates #6 AWG stranded, solid, AN, and aircraft copper conductors, providing reliable conductivity and durability. It is suitable for electrical distributors and lighting solutions requiring robust wire and cable connection components.

Specifications

• Connection Type: Seamless Butt Splice
• Conductor Size: 6 AWG
• Material: Copper
• Plating Type: Tin
• Voltage Rating: 600 V Maximum
• Length Overall: 1.12 in (28 mm)
• Width: 0.31 in
• Strip Length: 5/8 in
• Certification: UL Listed, CSA Approved, RoHS Compliant
• Country of Origin: United States
• Product Weight: 0.0140 lb

Features

• Manufactured from seamless tubing for high quality and no seams to split
• Electrolytic copper construction provides maximum conductivity and low resistance
• Electro-tin plating offers durable, long-lasting resistance to corrosion
• Positive center wire stops ensure proper depth of wire insertion
• Marked with wire size for easy identification
• Inspection holes allow visual verification of proper wire insertion
• Chamfered barrel style for ease of crimping
• Made in USA
