Hylink-Splice-Belled Long Barrel, 4/0 Str. (550/24) 4/0 AWG, 3.72 in L, UL Listed 90 Deg C, 600 Volts to 35 kV
SKU: #333226
Part: #YSV28FXB
UPC: 781810041468
Hylink-Splice-Belled Long Barrel, 4/0 Str. (550/24) 4/0 AWG, 3.72 in L, UL Listed 90 Deg C, 600 Volts to 35 kV
SKU: #333226
Part: #YSV28FXB
UPC: 781810041468
Description

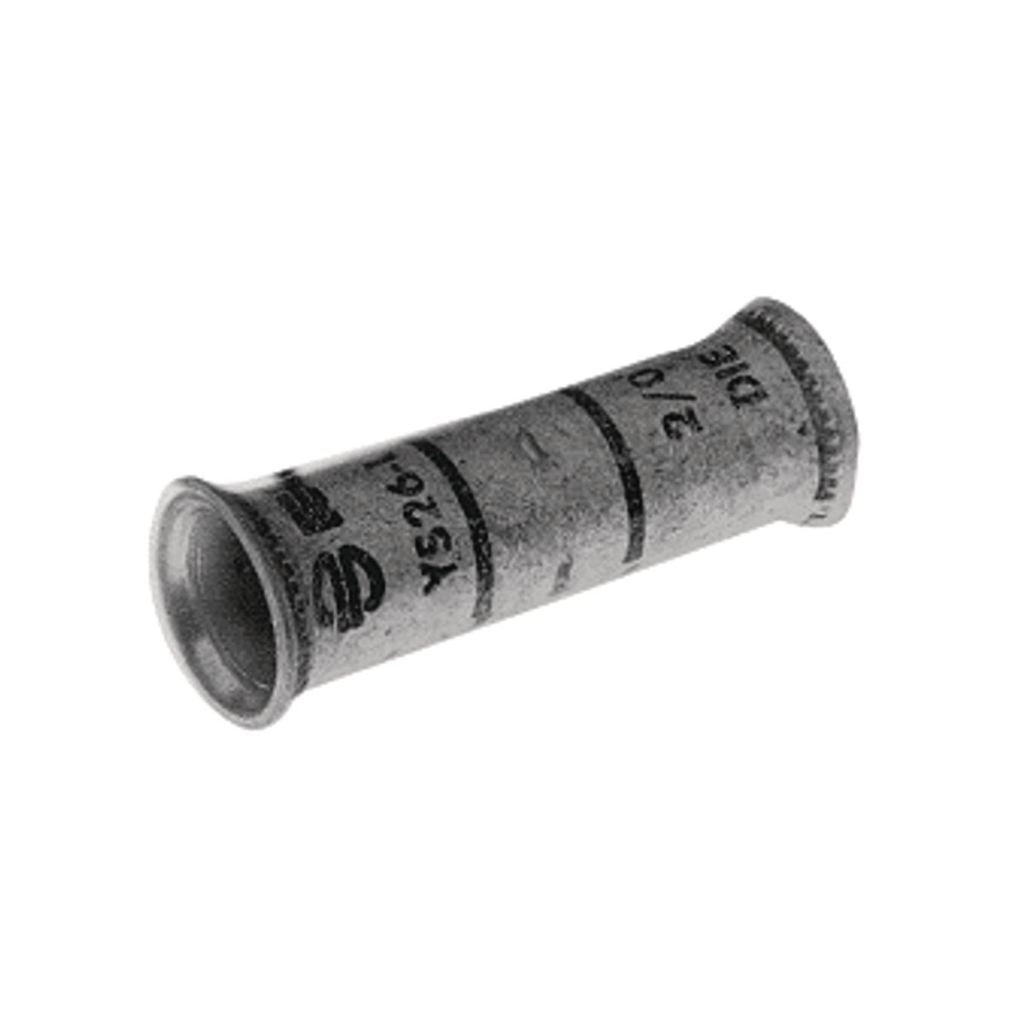

Hylink-Splice-Belled Long Barrel, 4/0 Str. (550/24) 4/0 AWG, 3.72 in L, UL Listed Electrical Splice Connector
This copper splice connector is designed for higher voltage applications, providing reliable electrical connections in wire and cable systems. Manufactured by Burndy, it is UL Listed for use up to 600 volts and 35 kV, suitable for demanding electrical distributor and switchgear supplier needs. The product features a belled long barrel style that facilitates easy insertion of flexible cables while offering mechanical strain relief for individual strands.
Specifications
- Material: Copper, Tin Plated
- Color: Black with Purple Color Coding
- Conductor Size: 4/0 American Wire Gauge (AWG), 4/0 Stranded (550/24)
- Application: For Higher Voltage Applications
- Length Overall: 3.72 in (94 mm)
- Outside Diameter: 0.77 in
- Strip Length: 1-7/8 in
- Barrel Style: Belled
- Barrel Type: Long
- UL Listed: Yes
- CSA Approved: Yes
- RoHS Compliance Status: CM
- Product Weight: 0.2100 lbs
- Country of Origin: United States
- Manufacturer Part Number: YSV28FXB
Features
- Long barrel length designed for high voltage terminations
- Four center conductor stops ensure proper conductor insertion
- High pull-out force for enhanced mechanical and electrical security
- Belled cable entry provides easy insertion and mechanical strain relief for flexible cables
- Color coding (purple) for quick identification
- Compatible with dieless crimping tools including Y81KFT, PAT81KFT-18V, Y35, Y39, Y750, U28RT, and Y46
- Made in the USA
