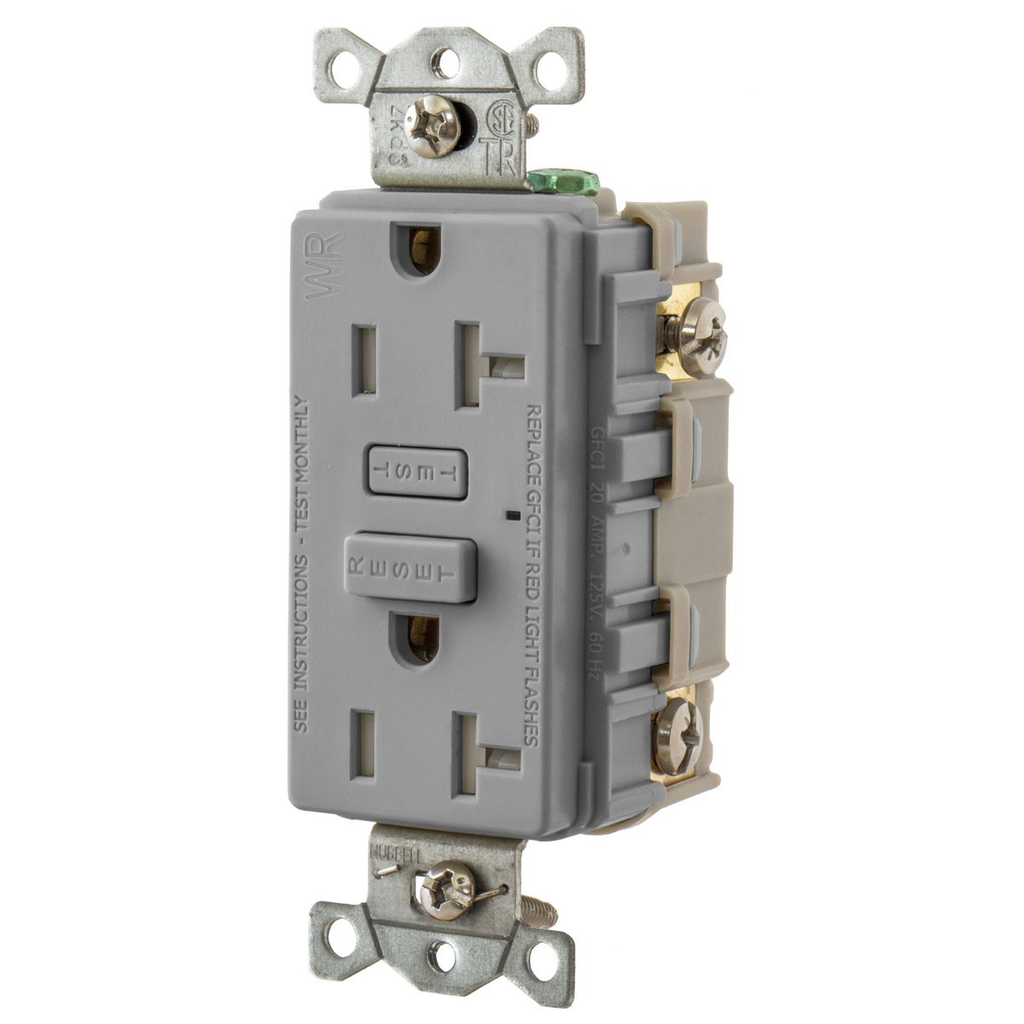

HUBBELLPRO GFCI 20A Weather-Resistant Tamper-Resistant Receptacle

The HUBBELLPRO GFCI receptacle, model GFTW20GY, is a 20 amp, 125V, 2-pole, 3-wire grounding electrical device designed for tamper-resistant and weather-resistant applications. It is engineered for use in residential, commercial, and light industrial environments, providing ground fault circuit interruption to enhance electrical safety. This product is suitable for indoor dry locations unless additional protection is applied, and it is ideal for kitchens, bathrooms, garages, basements, laundry areas, workshops, wet or damp locations, and outdoor porches or decks. It supports rapid installation with terminal screws and mounting screws for secure attachment.

Specifications

• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: GFTW20GY
• Amperage Rating: 20 A
• Current: 20 amperes
• Voltage: 125V
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire Grounding
• NEMA Rating: 5-20R
• Material: Thermoplastic/Composite
• Color: Gray
• Connection Type: Terminal Screws
• Mounting: Mounting Screws
• Product Weight: 3.4 lbs
• Width: 2.048 in
• Environmental Conditions: Indoor Dry unless protected by additional means
• Country of Origin: China

Features

• Tamper-resistant mechanism designed for residential applications
• Weather-resistant construction for outdoor and damp locations
• Patented auto monitor and power denial technology with LED status indicator
• Flush, smooth profile with satin finish to complement décor
• Expanded ground wire area and guide pockets for rapid internal back wire installation
• Clear indication if unit can no longer provide protection (LED red flashes) and will not reset
