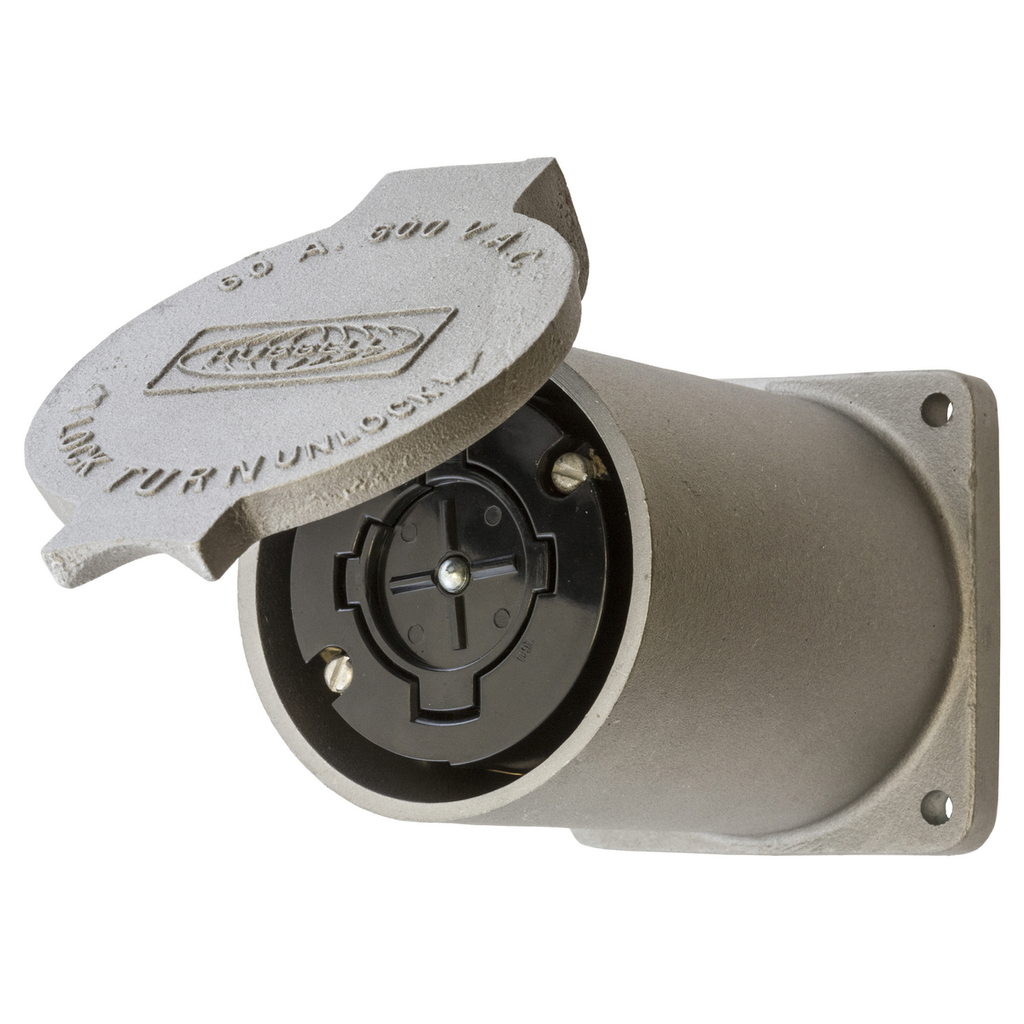

Hubbellock Industrial Receptacle 60A – Heavy Duty Industrial Electrical Connector

The Hubbellock Industrial Receptacle 60A is designed for heavy duty industrial applications, providing a reliable connection solution for electrical distributors and switchgear suppliers. It supports 60 amperes at 600 volts AC with a 3-pole, 4-wire grounding configuration. This receptacle features a phenolic interior housed in a durable aluminum cast enclosure with a lift cover, suitable for indoor dry environments unless additional protection is applied. Its screw terminal connection and screw mount design facilitate secure installation and wiring.

Specifications

• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: HBL26420
• Application: Heavy Duty Industrial
• Amperage Rating: 60 A
• Current: 60 amperes
• Voltage Rating: 600 V AC
• Number of Poles: 3-Pole
• Number of Wires: 4-Wire
• Material: Aluminum, Cast
• Color: Aluminum
• Mounting: Screw Mount
• Connection: Screw Terminal
• NEMA Rating: Non-NEMA
• Dielectric Strength: Withstands 2,000V minimum
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Product Weight: 12.95 lbs
• Width: 4.9 in
• Country of Origin: Puerto Rico

Features

• Phenolic interior for electrical insulation and durability
• Longuminum housing with lift cover for protection and longevity
• Designed for screw terminal connections to ensure secure wiring
• Heavy duty construction suitable for industrial electrical distribution and lighting solutions
• Non-NEMA rated, suitable for specialized industrial applications
• Compact dimensions with robust mounting options for easy integration
