Hubbell Building & Automation
HUBBELL USB8300ACPDW RCPT HG DUP 20A 125V USB AC PD W
SKU: #404990
Part: #USB8300ACPDW
UPC: 783585723143
Hubbell Building & Automation
HUBBELL USB8300ACPDW RCPT HG DUP 20A 125V USB AC PD W
SKU: #404990
Part: #USB8300ACPDW
UPC: 783585723143
Description

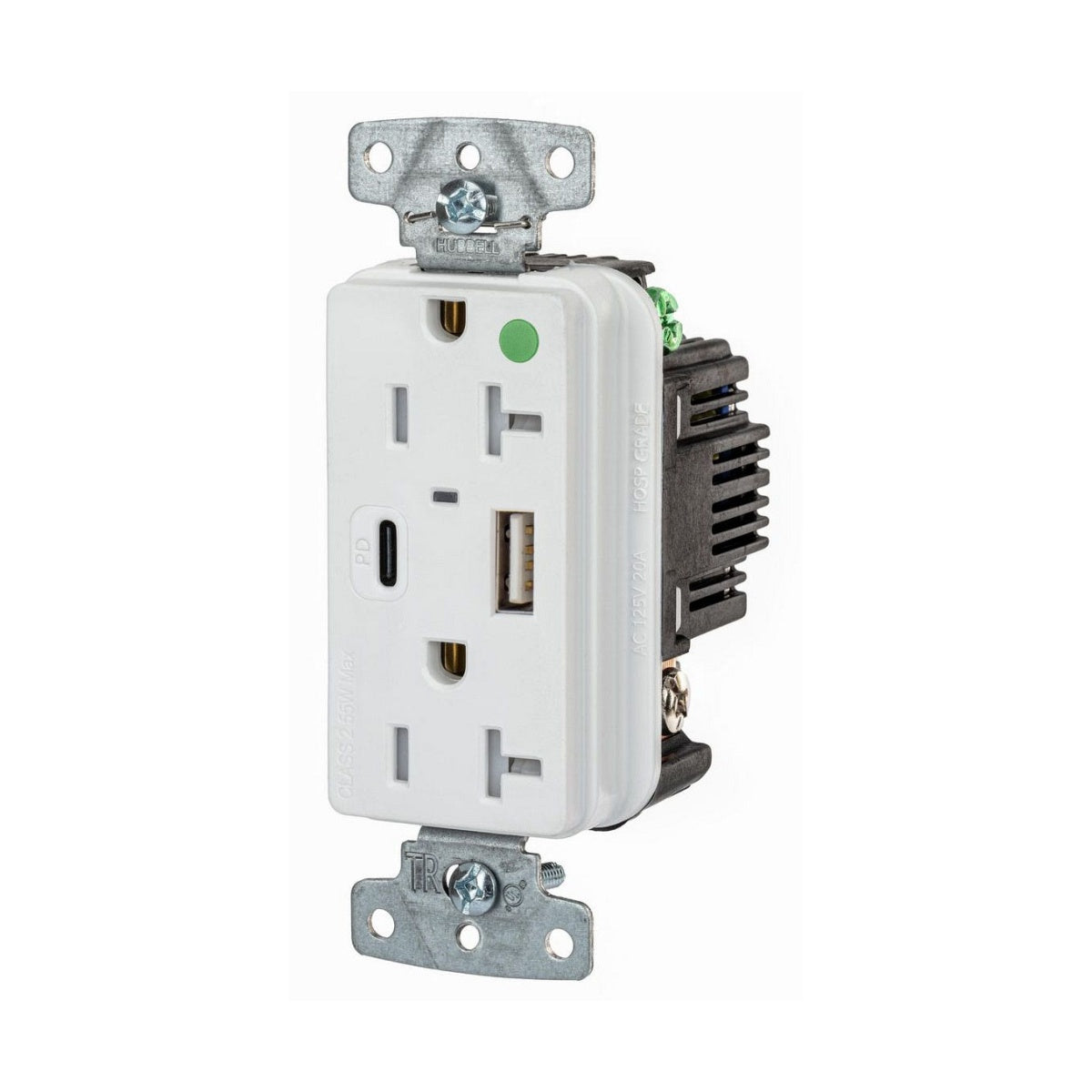

HUBBELL USB8300ACPDW RCPT HG DUP 20A 125V USB AC PD W - USB Charger Receptacle
The HUBBELL USB8300ACPDW is a hospital-grade tamper-resistant duplex receptacle designed for commercial and industrial electrical distribution applications. It integrates a 20A, 125V electrical outlet with USB charging ports, combining traditional power delivery with modern USB charging capabilities. This device is suitable for use by electrical distributors, lighting solutions providers, wire and cable specialists, and switchgear suppliers requiring reliable, code-compliant power and charging solutions.
Specifications
- Manufacturer: Hubbell Building & Automation
- Manufacturer Part #: USB8300ACPDW
- NEMA Rating: 5-20R
- Number of Poles: 2-Pole
- Number of Wires: 3-Wire
- Product Weight: 4.35 lbs
- Voltage Rating: 125V
- Current Rating: 20A
- USB Charging: One USB-C Power Delivery port with up to 55W output and one USB-Type A convenience port (1.5A, 5V output)
- Tamper-Resistant Duplex Receptacle
- USB Ports Rated for 10,000 Cycles
Features
- Hospital Grade, Tamper-Resistant design for enhanced safety
- Integrated USB charging ports supporting USB BC1.2 battery charging and USB 3.0 power delivery standards
- Heavy-duty stainless steel USB ports rated for extended durability
- LED indicator shows power status and charging activity
- Compatible with USB 2.0, 3.0, and 3.1 devices
- Designed for installation in standard single gang wall boxes per NEC Article 314
- Compliant with FCC Class B digital device limits to minimize interference
