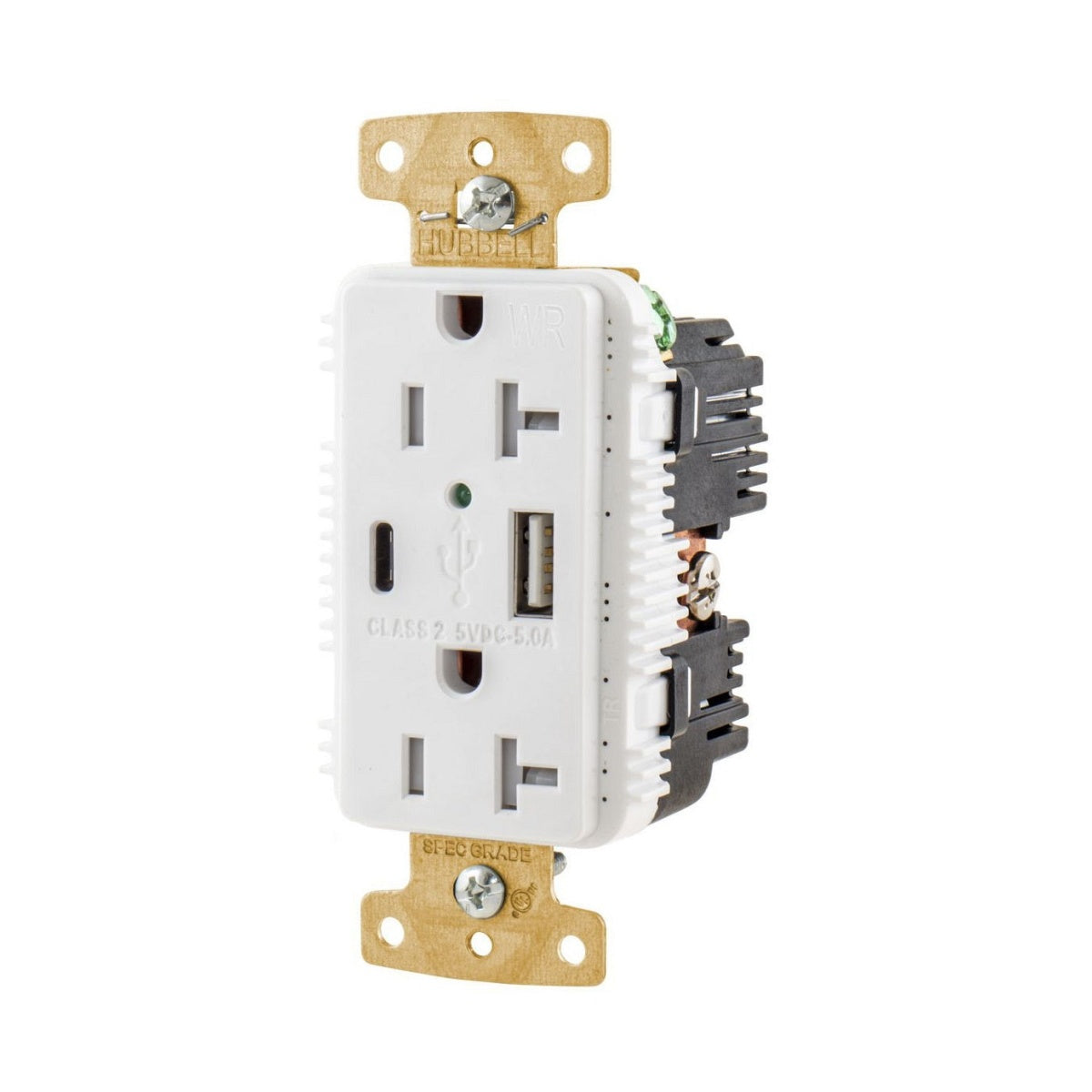

HUBBELL USB20AC5WWR DUP TRWR 20A 125V USB Port 5A5V AC White - USB Charging Outlet

This Hubbell USB20AC5WWR duplex receptacle combines standard electrical power with integrated USB charging ports, designed for USB charging and power applications. It offers a tamper-resistant, weather-resistant solution suitable for commercial and residential installations, providing reliable power distribution with high-capacity USB charging. This product is ideal for electrical distributors and lighting solutions providers seeking to offer integrated wire and cable power outlets with USB capabilities, meeting NEC and local electrical code requirements.

Specifications

• Application: USB Charging/Power
• Amperage Rating: 20 A
• Voltage Rating: 125 V
• Number of Poles: 2
• Number of Wires: 3
• NEMA Rating: 5-20R
• Material: Composite
• Mounting: Screw Mount
• Connection: Terminal Screws
• Product Weight: 4.0 lbs

Features

• Two USB ports providing 5 Amp, 5 Volt DC high power USB output
• Tamper-resistant duplex receptacle design for enhanced safety
• Weather-resistant construction suitable for outdoor and damp locations
• Power indicating green LED light to show USB port power status
• Terminal capacity supports #14 AWG to #10 AWG copper conductors
• Compatible with standard single gang electrical boxes (minimum 3" x 2" x 2-1/2")
• Complies with NEC Article 406.9 for weather-resistant receptacles
• USB ports rated for 10,000 insertion cycles
