Hubbell Building & Automation
HUBBELL USB20A5GY RCPT DUP 20A 125V 5A 5V USB PORT A GY
SKU: #154259
Part: #USB20A5GY
UPC: 883778306983
Hubbell Building & Automation
HUBBELL USB20A5GY RCPT DUP 20A 125V 5A 5V USB PORT A GY
SKU: #154259
Part: #USB20A5GY
UPC: 883778306983
Description
HUBBELL USB20A5GY RCPT DUP 20A 125V 5A 5V USB PORT A GY USB Charging Receptacle

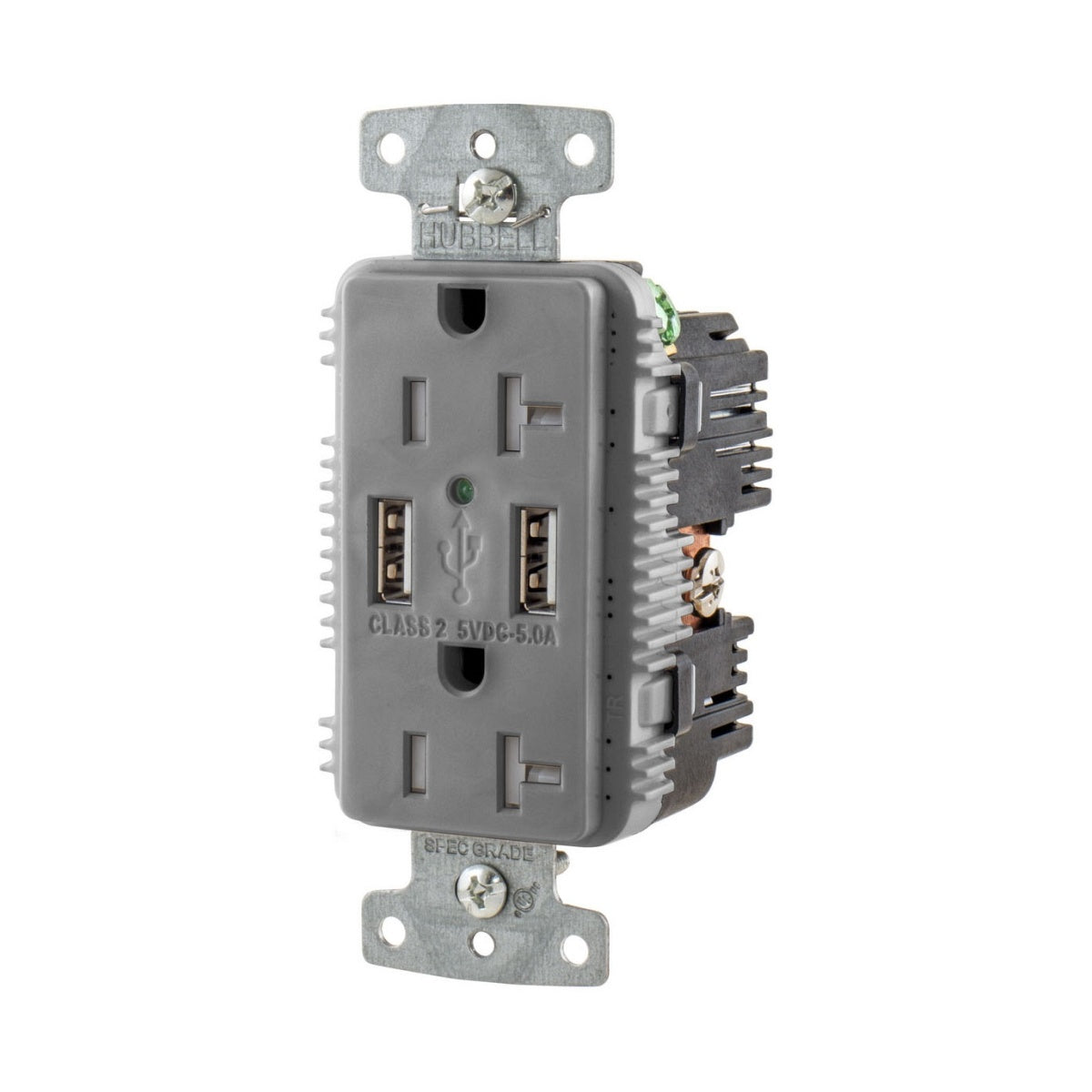

This Hubbell USB20A5GY duplex receptacle combines standard 20 Amp, 125 Volt electrical outlets with two Type A USB charging ports delivering 5 Amp, 5 Volt DC output. Designed for USB charging and power applications, it is suitable for indoor dry environments and meets the needs of electrical distributors and lighting solutions providers requiring integrated wire and cable connectivity with USB charging capabilities. The device features tamper-resistant duplex receptacles and is intended for installation by qualified electricians in compliance with national and local electrical codes.
Specifications
- Manufacturer: Hubbell Building & Automation
- Manufacturer Part #: USB20A5GY
- Amperage Rating: 20 A
- Voltage Rating: 125 V
- NEMA Rating: 5-20R
- Number of Poles: 2-Pole
- Number of Wires: 3-Wire
- Material: Composite
- Mounting: Mounting Screws
- Connection: Terminal Screws
- Product Weight: 4.1 oz
- Environmental Conditions: Indoor Dry Unless Protected by Additional Means
- Application: USB Charging/Power
Features
- Two Type A USB ports providing 5 Amp, 5 Volt DC charging output
- Tamper-resistant duplex receptacle for enhanced safety
- Green LED indicator shows USB port power status
- Compatible with #14 AWG to #10 AWG copper conductors
- Terminal screws torque rating: 10-12 lb•in (1.1-1.4 N•m)
- Designed for standard single gang electrical wall box installation
- USB ports rated for 10,000 insertion cycles
- Meets NEC requirements for tamper-resistant receptacles
