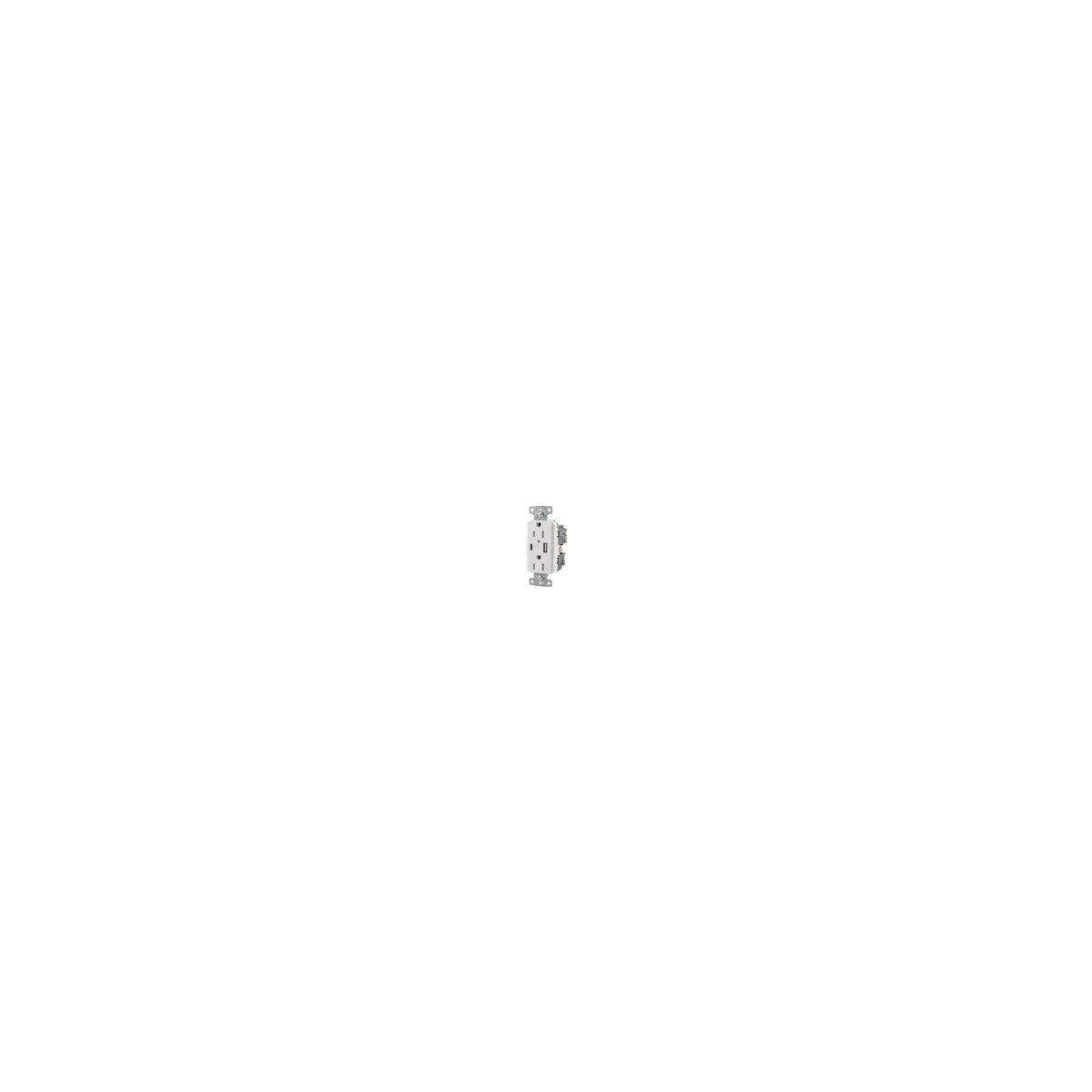

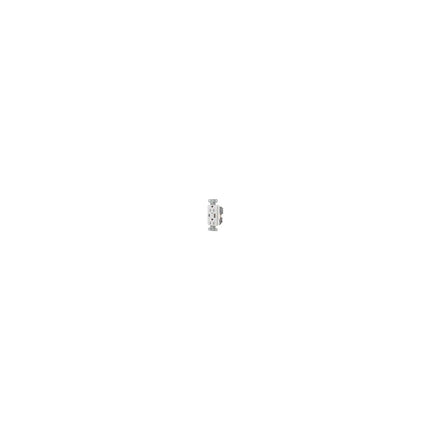

HUBBELL USB15AC5W RCPT DUP 15A 125V 5A 5V USB PORT AC WH USB Charger Receptacle

The HUBBELL USB15AC5W is a tamper-resistant duplex receptacle combining standard 15 Amp, 125 Volt AC power outlets with high-power USB charging ports. Designed for indoor dry environments, this device provides integrated USB charging with a 5 Amp, 5 Volt DC output, suitable for powering portable electronics and tablets simultaneously. It is ideal for electrical distributors and lighting solutions providers looking to offer combined wire and cable power and USB charging in commercial, industrial, and residential installations. The device features screw mounting and terminal screw connections for secure installation and complies with relevant electrical codes and standards.

Specifications

• Application: USB Charging/Power
• Amperage Rating: 15 A
• Voltage Rating: 125 V AC
• USB Output: 5 Amp, 5 Volt DC
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire
• NEMA Rating: 5-15R
• Material: Composite
• Mounting: Screw Mount
• Connection: Terminal Screws
• Environmental Conditions: Indoor Dry Unless Protected by Additional Means
• Product Weight: 4.0 lbs
• Manufacturer: Hubbell Building & Automation
• Manufacturer Part Number: USB15AC5W

Features

• Tamper-Resistant duplex receptacle with integrated USB charging ports
• One Type A and one Type-C USB port configuration with 5 Amp, 5 Volt DC output
• LED indicator light signals USB and line voltage power availability
• USB stainless steel ports rated for 10,000 insertions and removals
• Complies with USB battery charging specification BC1.2
• Compatible with USB 1.1, 2.0, and 3.0 devices, including Apple products
• Designed for commercial, industrial, and home use
• Meets NEC Section 406.9 requirements for tamper-resistant receptacles
