Description
HUBBELL USB15AC5BK RCPT DUP 15A 125V 5A 5V USB PORT AC BK - USB Charger Receptacle

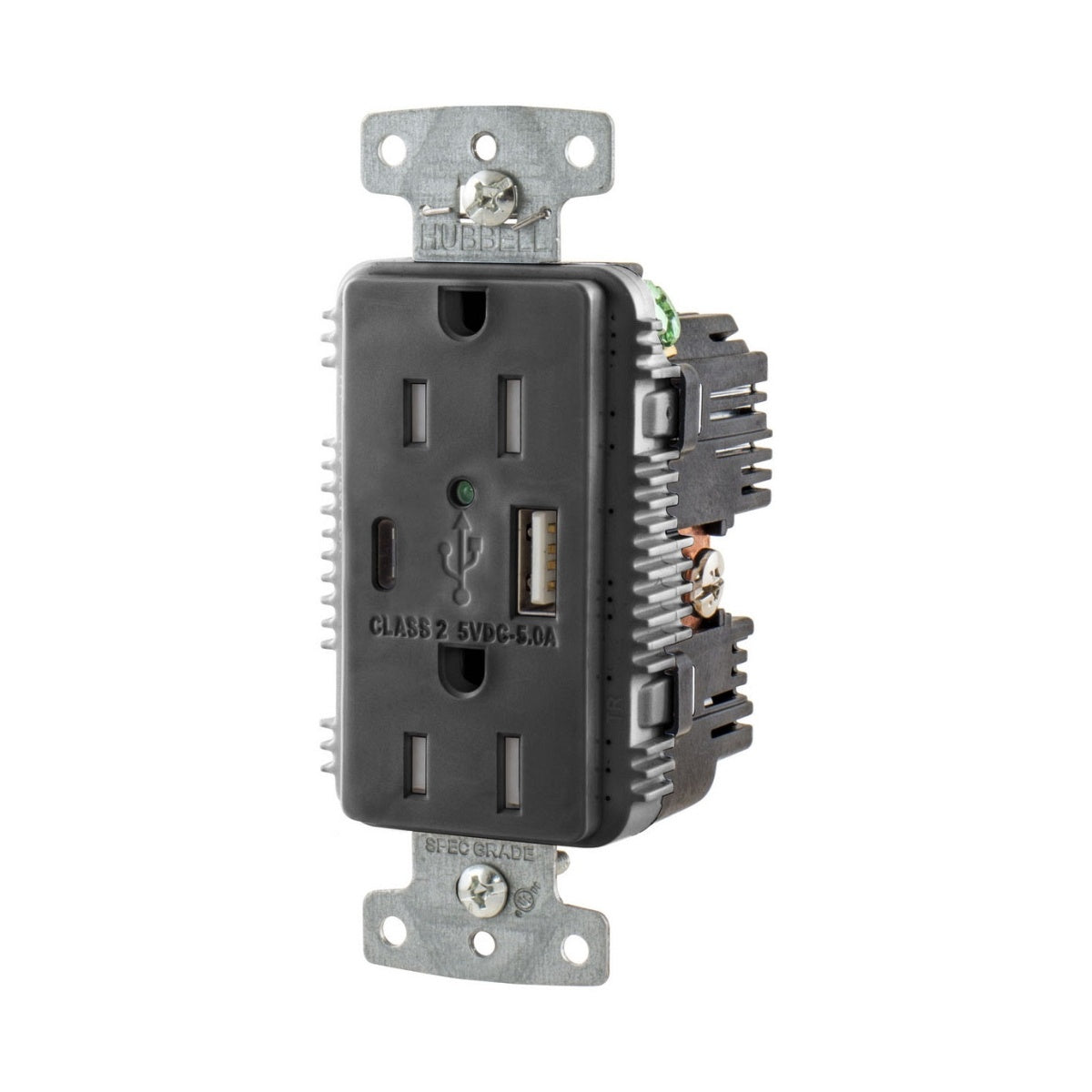

This Hubbell USB15AC5BK is a tamper-resistant duplex receptacle designed for USB charging and power applications. It combines a standard 15A, 125V AC receptacle with a high-power USB charger port capable of delivering 5A at 5V DC. Suitable for indoor dry environments, this device is ideal for electrical distributors, lighting solutions providers, wire and cable installers, and switchgear suppliers looking to integrate USB charging capabilities into commercial and residential electrical systems.
Specifications
- Application: USB Charging/Power
- Amperage Rating: 20 A
- NEMA Rating: 5-15R
- Number of Poles: 2-Pole
- Number of Wires: 3-Wire
- Material: Composite
- Mounting: Mounting Screws
- Connection: Terminal Screws
- Product Weight: 3.95 lbs
- Environmental Conditions: Indoor Dry Unless Protected by Additional Means
- Manufacturer: Hubbell Building & Automation
- Manufacturer Part Number: USB15AC5BK
Features
- Tamper-resistant duplex receptacle with integrated USB charging port
- USB port rated for 5 Amp, 5 Volt DC output suitable for high-power device charging
- Green LED indicator to show when USB ports are powered
- Compatible with standard single gang electrical boxes
- Terminal capacity supports #14 AWG to #10 AWG copper conductors
- UL and CSA listed for safety and performance compliance
- Designed for indoor dry locations unless additional protection is provided
