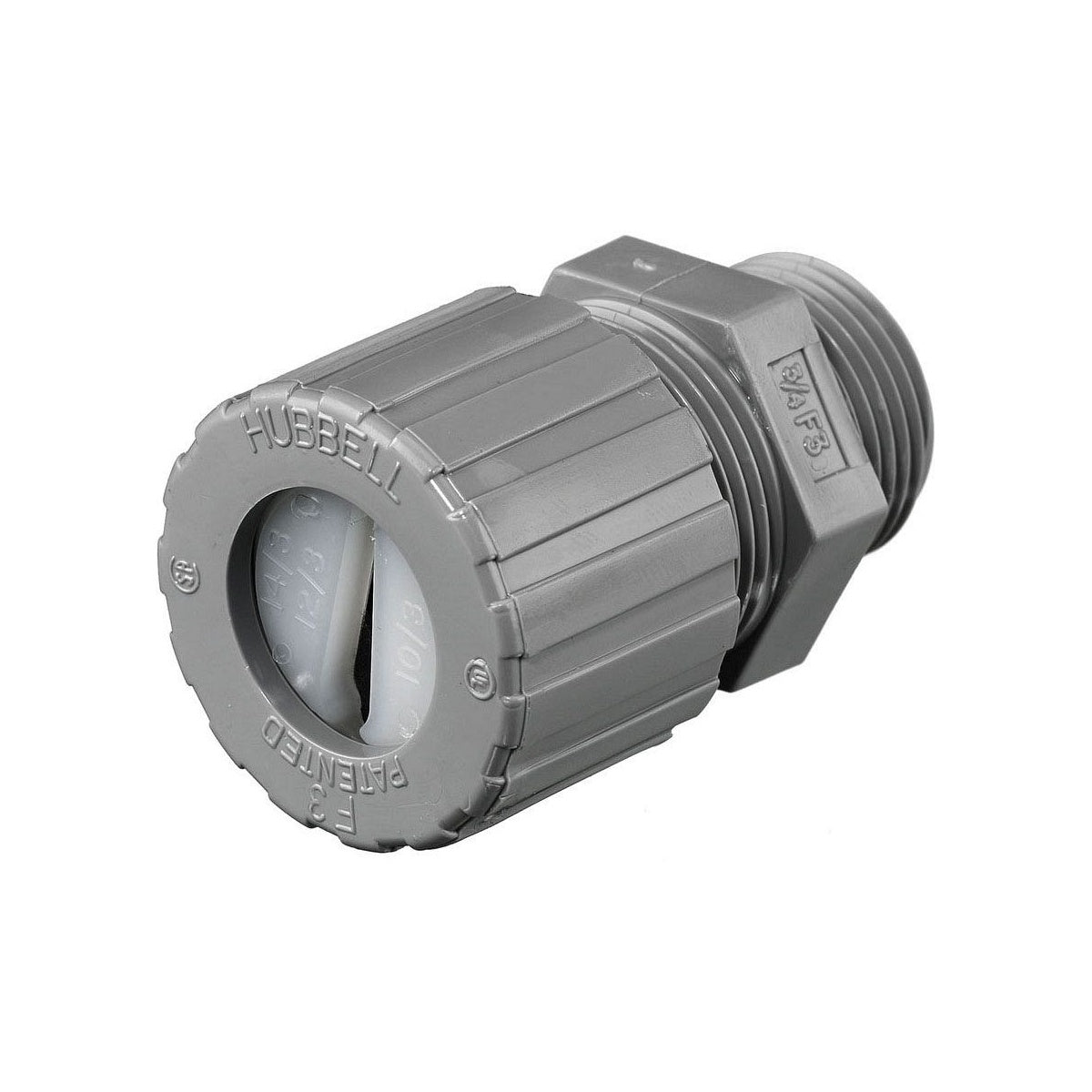

HUBBELL UFC0003CR Underground Feeder Connector - Electrical Distributor Wire and Cable Solution

The HUBBELL UFC0003CR is a straight male underground feeder connector designed for secure and reliable electrical connections in wire and cable applications. This connector is suitable for use in wet locations when installed with a listed nylon washer between the box and fitting, making it ideal for demanding environments encountered by electrical distributors and switchgear suppliers. Constructed from durable nylon with a smooth finish, it supports conductor ranges from 0.2 x 0.6 inches minimum to 0.26 x 0.78 inches maximum and accommodates three conductors, ensuring compatibility with various underground feeder cables.

Specifications

• Application: Straight Male
• Material: Nylon
• Color: Gray
• Finish: Smooth
• Mounting: Locknut or Tapped Opening
• NEMA Rating: IP66
• Conductor Range: 0.2 x 0.6 in Min, 0.26 x 0.78 in Max
• Number of Conductors: Single
• Product Weight: 1.9 lbs
• Manufacturer: Hubbell Building & Automation
• Manufacturer Part #: UFC0003CR
• Environmental Conditions: Suitable for use in wet locations when used with a listed nylon washer between box and fitting

Features

• UL Listed to Type 4, 4X, 12, and 13 for robust protection
• IP66 rated for dust-tight and water-resistant performance
• Designed for underground feeder cable applications with precise conductor accommodation
• Locknut or tapped opening mounting for flexible installation
• Durable nylon construction with smooth finish for corrosion resistance

Downloads & Links

• Spec Sheet
