Hubbell Building & Automation
HUBBELL SNAP2162GYTRA SNAPCONNECT DECO 20A/125V TR GR
SKU: #405841
Part: #SNAP2162GYTRA
UPC: 783585551807
Hubbell Building & Automation
HUBBELL SNAP2162GYTRA SNAPCONNECT DECO 20A/125V TR GR
SKU: #405841
Part: #SNAP2162GYTRA
UPC: 783585551807
Description

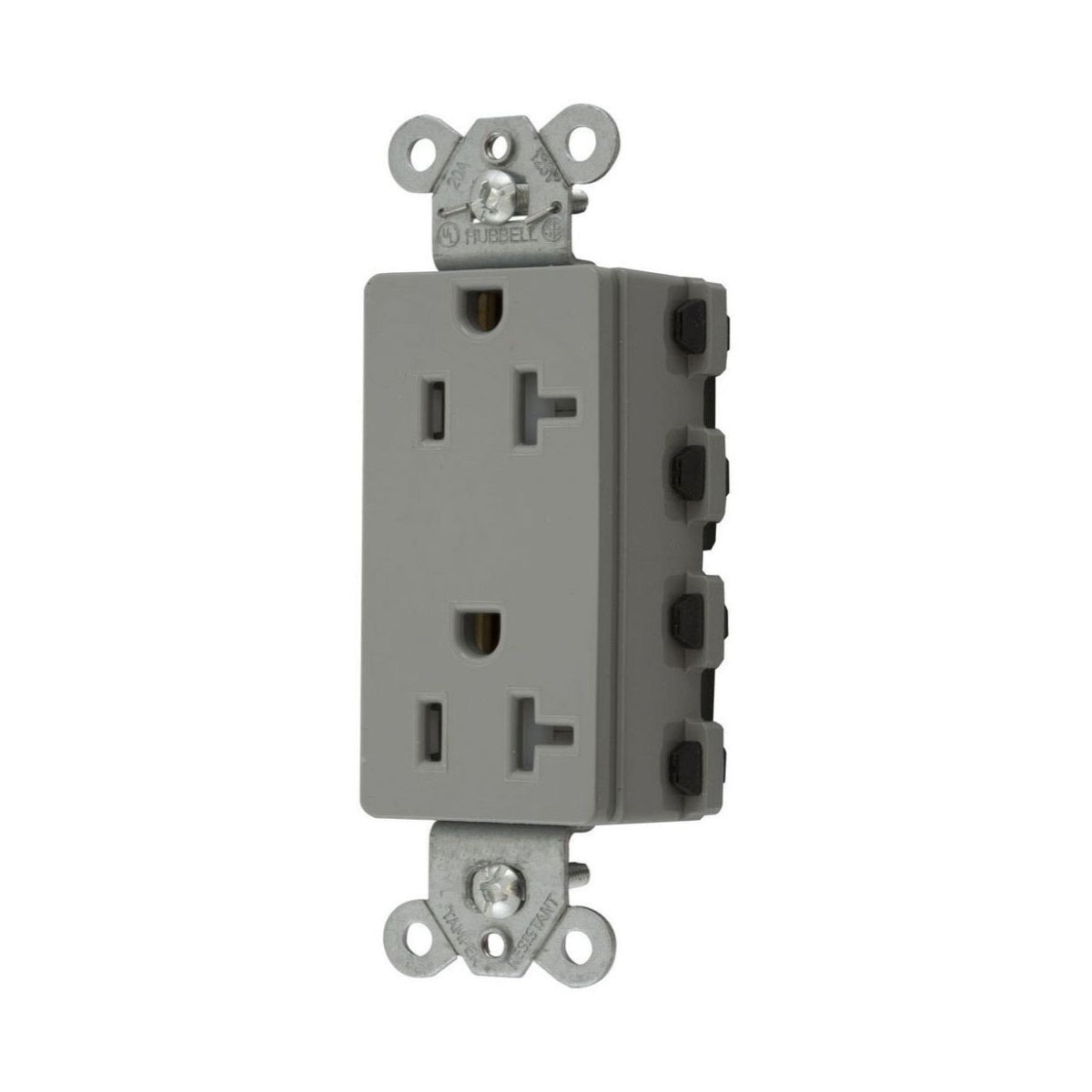

HUBBELL SNAP2162GYTRA SNAPCONNECT DECO 20A/125V TR GR Electrical Receptacle
The HUBBELL SNAP2162GYTRA is a specification grade, tamper-resistant electrical receptacle designed for extra heavy duty applications. It is suitable for indoor dry environments unless additional protection is provided. This receptacle is ideal for electrical distributors and switchgear suppliers needing reliable, modular wiring solutions in commercial and industrial settings.
Specifications
- Application: Extra Heavy Duty Specification Grade
- Amperage Rating: 20 A
- Voltage Rating: 125 V
- NEMA Rating: 5-20R
- Number of Poles: 2-Pole
- Number of Wires: 3-Wire
- Material: Nylon
- Mounting: Mounting Screws
- Connection: Terminal Screws
- Dielectric Strength: Withstands 2,000V minimum
- Environmental Conditions: Indoor Dry Unless Protected By Additional Means
- Product Weight: 2.3 lbs
- Manufacturer: Hubbell Building & Automation
- Manufacturer Part #: SNAP2162GYTRA
Features
- Tamper-Resistant design enhances safety compliance
- Modular SNAP Connect® system simplifies installation with pigtailed connectors
- Flush, nylon face for durability and clean appearance
- Compatible with standard Style Line® decorator wall plates
- Assembled in the USA ensuring quality control
- Designed for use with copper conductors only, per UL and CSA standards
