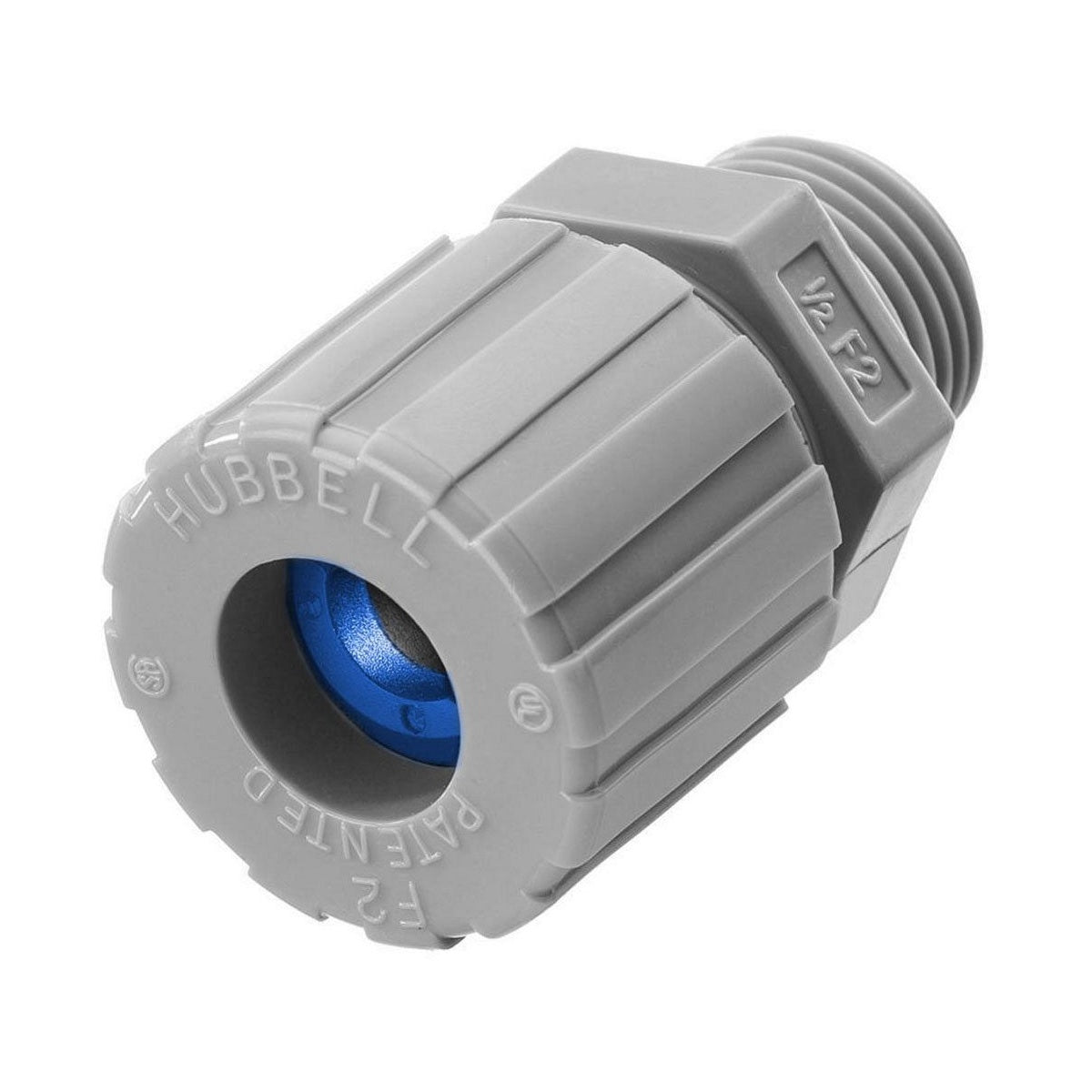

HUBBELL SHC1039CR Cord Connector for Wire and Cable

The HUBBELL SHC1039CR is a straight male cord connector designed for electrical distributors and switchgear suppliers requiring reliable wire and cable connections. It is suitable for applications needing a Form 4 connection with a conductor range of 0.38 to 0.50 inches (9.7-12.7 mm). This connector is constructed from durable nylon with a smooth gray finish, providing a secure and weather-resistant solution for lighting solutions and electrical wiring systems.

Specifications

• Application: Straight Male - Form 4
• Conductor Range: 0.38-0.5 in (9.7-12.7 mm)
• Material: Nylon
• Color: Gray
• Finish: Smooth
• Mounting: Locknut or Tapped Opening
• NEMA Rating: NEMA Type 4, 4X, 12 and 13
• Number of Conductors: Single
• Product Weight: 1.4170 lbs
• Manufacturer Part #: SHC1039CR
• UPC: 783585208114

Features

• Suitable for use in wet locations when used with a listed nylon washer between box and fitting
• Durable nylon construction provides impact resistance and weather protection
• Designed to provide a liquid-tight seal ensuring reliable electrical connections
• Compatible with locknut or tapped opening mounting for flexible installation
• UL Listed to NEMA Types 4, 4X, 12, and 13 for industrial and commercial applications
