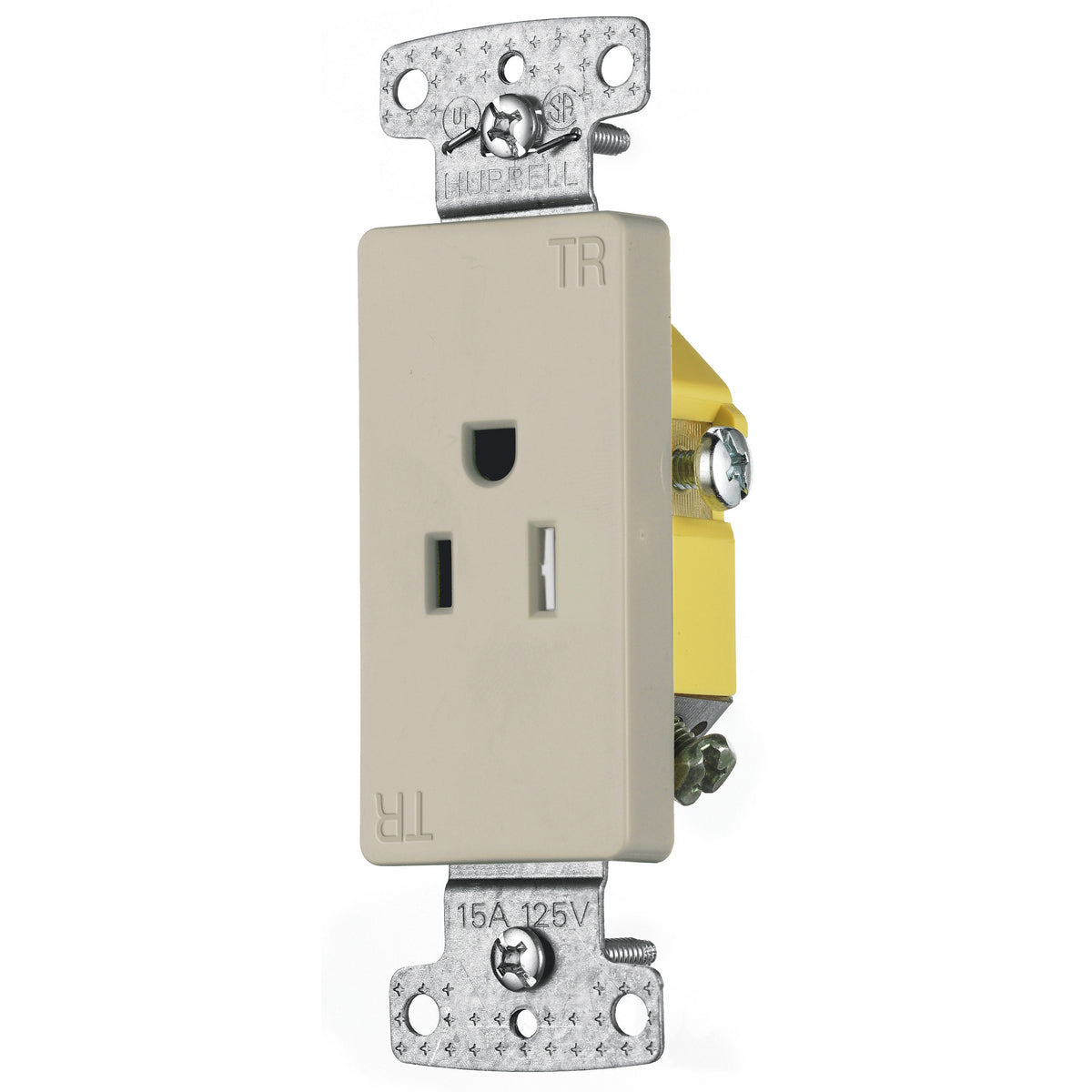

HUBBELL RRD151ALTR Residential Receptacle 15A 125V

This Hubbell RRD151ALTR single receptacle is designed for residential electrical applications, providing reliable power distribution with a 15 amp, 125 volt rating. Suitable for indoor dry environments unless additional protection is applied, it is ideal for electrical distributors and lighting solutions requiring durable wire and cable connections. The device features a thermoplastic construction and complies with NEMA 5-15R standards, ensuring compatibility with standard residential wiring systems.

Specifications

• Name: HUBBELL RRD151ALTR RESI SGL RCPT 15A 125V DEC TR AL
• Amperage Rating: 15 A
• Voltage Rating: 125 V
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire Grounding
• Material: Thermoplastic
• NEMA Rating: 5-15R
• Application: Residential Receptacles
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Product Weight: 0.2 lbs
• Manufacturer: Hubbell Building & Automation
• Manufacturer Part #: RRD151ALTR

Features

• Durable thermoplastic construction for long-lasting performance
• Standard NEMA 5-15R configuration for residential compatibility
• Designed for 3-wire grounding systems ensuring safety and code compliance
• Compact dimensions suitable for standard electrical boxes (approx. 4.2" height x 1.3" width x 1.01" depth)

Downloads & Links

• CAD Drawing
