Description

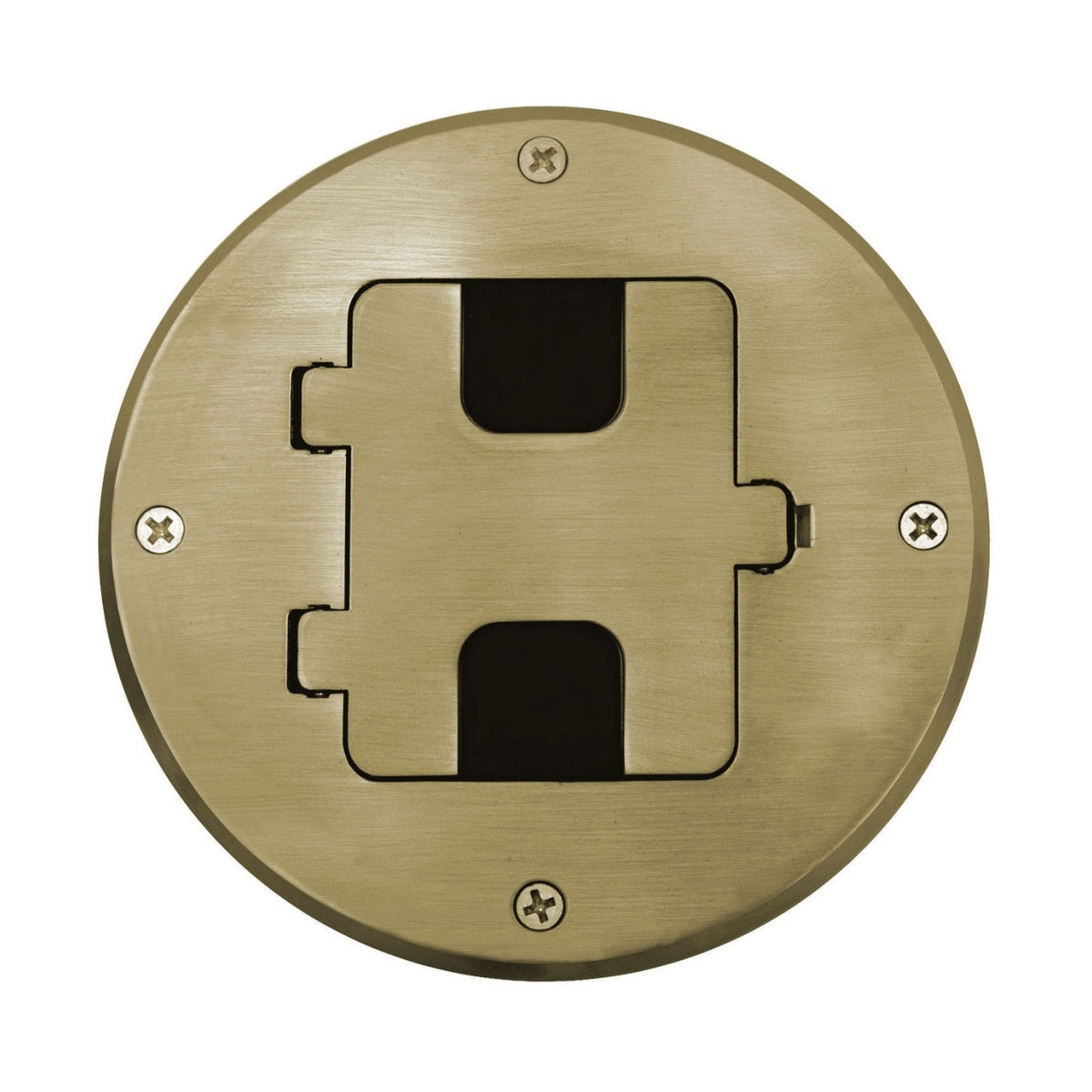

HUBBELL RF509BR Woodfloor Box for Electrical Distributor Applications
The HUBBELL RF509BR is a brass flush-fit floor box designed for multi-service in-floor delivery systems, specifically for structural wood floors. It enables the placement of electrical power and voice/data devices, making it suitable for electrical distributors and lighting solutions providers needing reliable wire and cable management in wood floor installations. The box is cast into concrete for secure mounting and features a cable access door for efficient wiring.
Specifications
- Material: Brass
- Color: Brass
- Mounting: Cast Into Concrete
- Construction: Stamped
- Cable Entry: Cable Access Door
- Product Weight: 13.85 lbs
- Application: Multi Service In-Floor Delivery Systems
- Manufacturer Part #: RF509BR
- UPC: 883778303913
Features
- Flush fit cover designed for hardwood and tile floors
- Pre-assembled flange and cover for fast installation
- Removable neoprene gaskets allow for independent use of either side of the receptacle with the cover closed
- Height adjustable up to ¾ inch for optimal alignment and fit after mounting
- Back and side knockouts provide proper wiring access
- Recessed receptacle minimizes plug protrusion, allowing furniture placement over the plug
- Top screw fastening and side joist mounting provided
