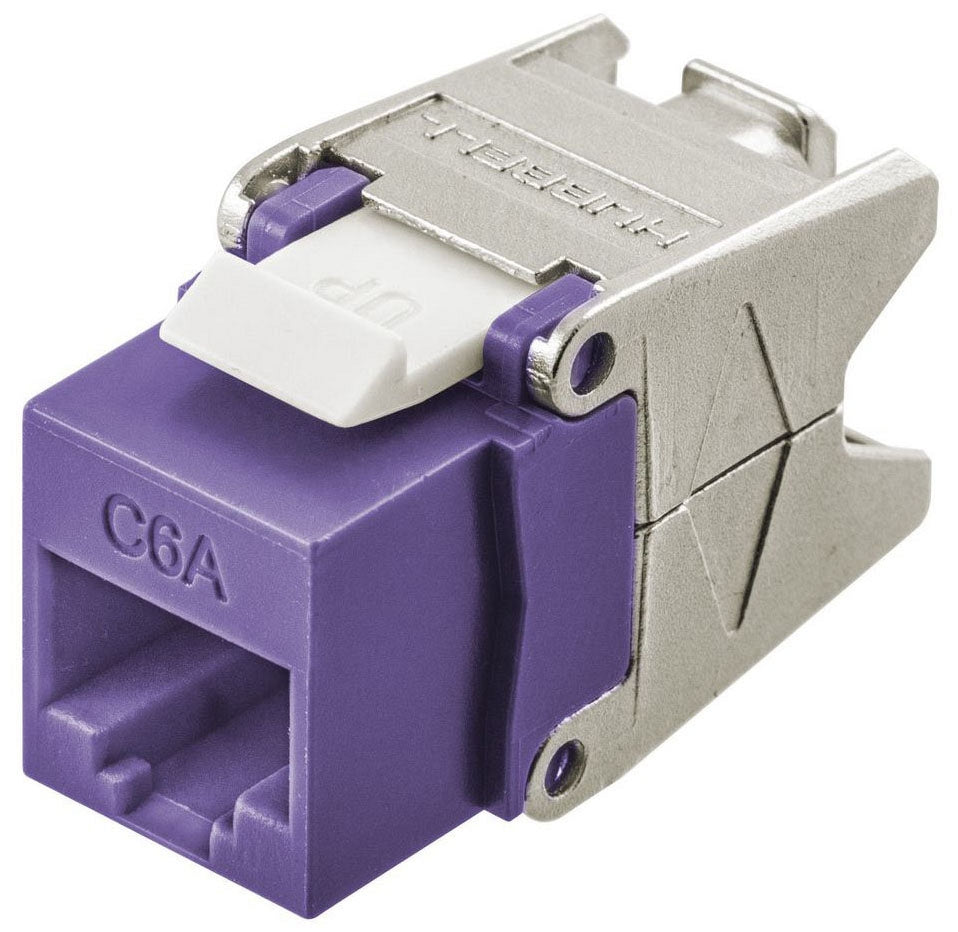

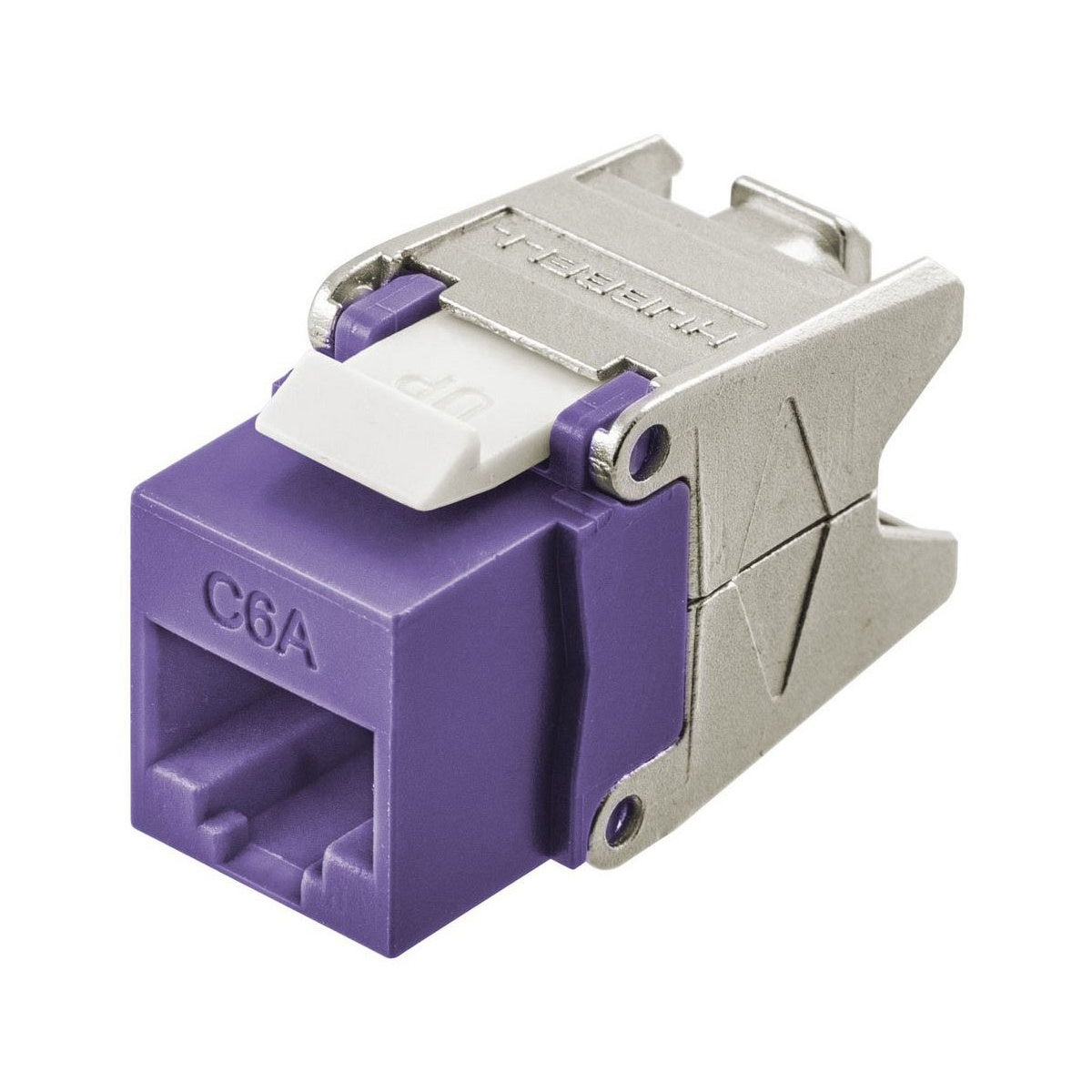

HUBBELL HJU6AP JACK, HJU6A, CAT6A, UNI, PU - Category 6A Jack

The HUBBELL HJU6AP is a Category 6A jack designed for high-performance network applications supporting up to 10GBASE-T and 802.3bt POE. This jack is suitable for indoor dry environments and is ideal for electrical distributors and lighting solutions providers requiring reliable wire and cable connectivity components. It features a snap-fit mounting system and is engineered to meet rigorous industry standards, ensuring compatibility with structured cabling systems.

Specifications

• Application: Up to 10GBASE-T, 802.3bt POE
• Color: Purple
• Dimensions (L x W x H): 7.5 in x 3.5 in x 0.78 in
• Contact Material: IDC - Phosphor Bronze with 100 Micro-Inch Tin Over Plating
• Mounting: Snap-fit
• Product Weight: 0.0500 lbs
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Manufacturer: Hubbell Building & Automation
• Manufacturer Part Number: HJU6AP

Features

• Exceeds TIA 568.2-D component requirements for Category 6A
• Supports short links less than 10 meters
• Designed and tested for 1.5A of continuous current per pair
• Compliant with TIA-568-C.2 and IEC 60603-7-41 Category 6A standards
• Qualified to 150% of IEEE 802.3bt current level
• UL Plenum rated for safe indoor installation
• COBRA-LOCK™ termination for secure wire retention and easy installation
• Quick lace wire manager supports both A and B wiring schemes, ensuring correct polarity
• Easily re-terminable up to 25 times with a small screwdriver
