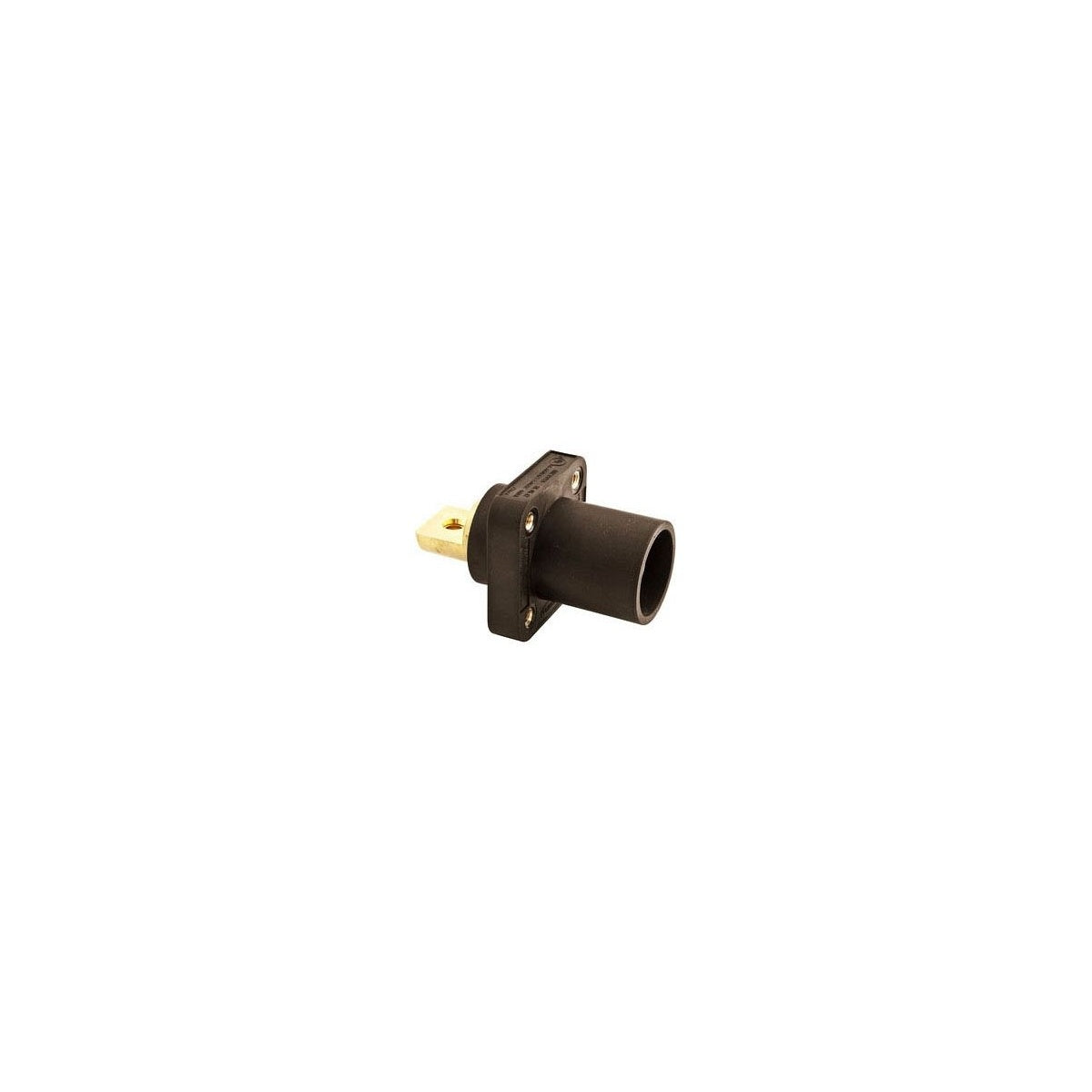

HUBBELL HBLMRBBN SINGLEPOLE 300/400A MALE BUS RECEP BRN - High Ampacity Electrical Connector

The HUBBELL HBLMRBBN is a single-pole, high ampacity male bus receptacle designed for secure electrical connections in industrial and commercial applications. Suitable for use by electrical distributors and switchgear suppliers, this device supports up to 400 amps and is engineered for indoor dry environments unless additional protection is applied. It is made from durable thermoplastic material and features screw terminal connections with screw mount installation for reliable and robust electrical distribution and lighting solutions involving wire and cable systems.

Specifications

• Name: HUBBELL HBLMRBBN SINGLEPOLE 300/400A MALE BUS RECEP BRN
• Application: High Ampacity Connections
• Amperage Rating: 400 A
• Number of Poles: 1-Pole
• Material: Thermoplastic
• Mounting: Screw Mount
• Connection: Screw Terminals
• NEMA Rating: Non-NEMA
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Product Weight: 16.45 lbs
• Manufacturer: Hubbell Building & Automation
• Manufacturer Part #: HBLMRBBN

Features

• Compatible with 300 and 400 amp inlines for flexible system integration
• Panel mount design with threaded hole for secure attachment
• Thermoplastic elastomer construction provides durability and electrical insulation
• Double setscrews ensure secure conductor connection with torque specification of 200 in-lbs
• Suitable for use with copper conductors rated for 90¬∞C insulation types
• Designed for 600 VAC / 250 VDC applications conforming to enclosure types 3, 3S, 3R, 4, 4X, and 12 when properly installed
