Hubbell Building & Automation
HUBBELL HBLFRSCGN SINGLEPOLE 300/400A FEM STUD RECP GN THR
SKU: #146377
Part: #HBLFRSCGN
UPC: 783585093628
Hubbell Building & Automation
HUBBELL HBLFRSCGN SINGLEPOLE 300/400A FEM STUD RECP GN THR
SKU: #146377
Part: #HBLFRSCGN
UPC: 783585093628
Description
HUBBELL HBLFRSCGN SINGLEPOLE 300/400A FEM STUD RECP GN THR - High Ampacity Electrical Connector

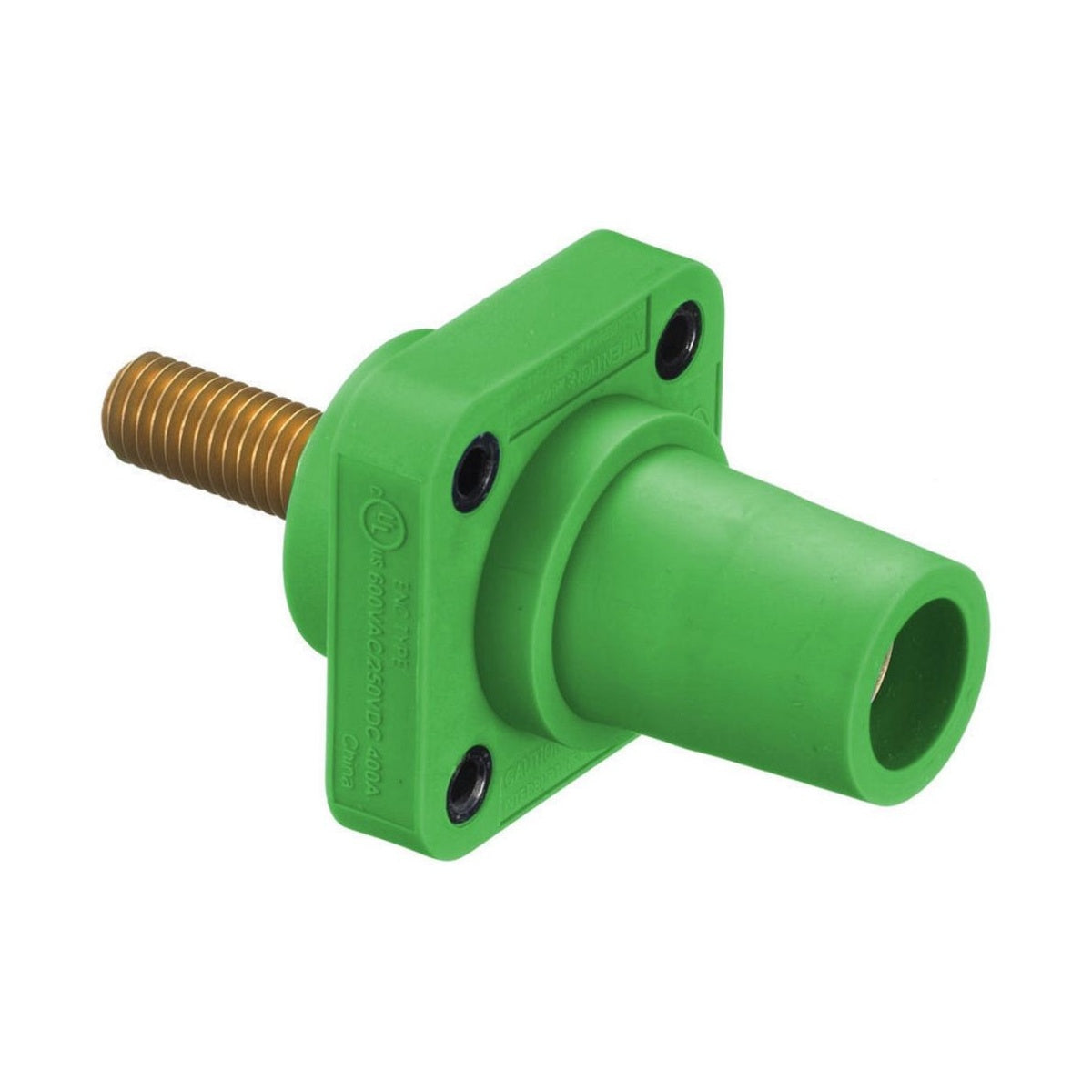

The HUBBELL HBLFRSCGN is a single-pole female stud receptacle designed for high ampacity connections in industrial and commercial electrical systems. Manufactured by Hubbell Building & Automation, this device supports up to 400 amps and is suitable for use in indoor dry environments unless additional protection is provided. It is engineered for panel mount applications with threaded thru-hole mounting, providing a secure and reliable connection for wire and cable installations. This component is ideal for electrical distributors and switchgear suppliers requiring robust and durable connectors compatible with 300 and 400 amp inlines.
Specifications
- Amperage Rating: 400 A
- Number of Poles: 1-Pole
- Number of Wires: 1-Wire
- Material: Elastomer / Elastomeric
- Mounting: Threaded Thru-Hole
- Connection: Stud Type
- NEMA Rating: Non-NEMA
- Application: High Ampacity Connections
- Product Weight: 0.7000 lbs
- Environmental Conditions: Indoor Dry Unless Protected By Additional Means
- Manufacturer Part #: HBLFRSCGN
- UPC: 783585093628
Features
- Thermoplastic elastomer construction for durability and insulation
- Compatible with 300 and 400 amp inlines for flexible system integration
- Designed for use with copper conductors rated for 90º C power cables
- Secure mounting with threaded thru-hole installation
- Supports cable sizes from 2/0 to 4/0 AWG
- Meets enclosure types 3, 3S, 3R, 4, 4X, and 12 when properly installed
- Torque specifications for mounting hardware ensure safe and reliable connections
