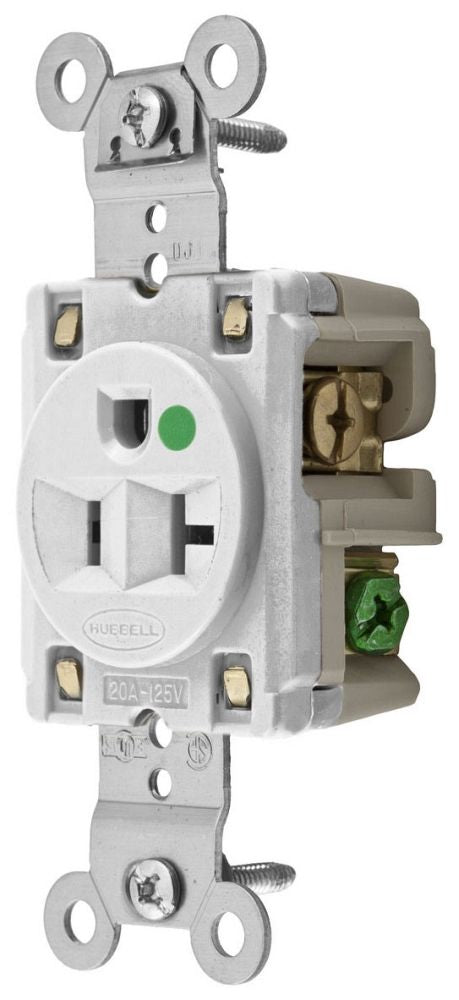

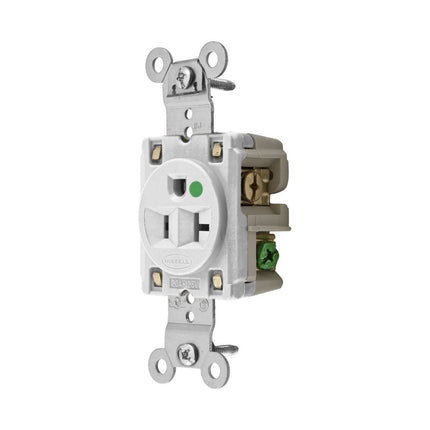

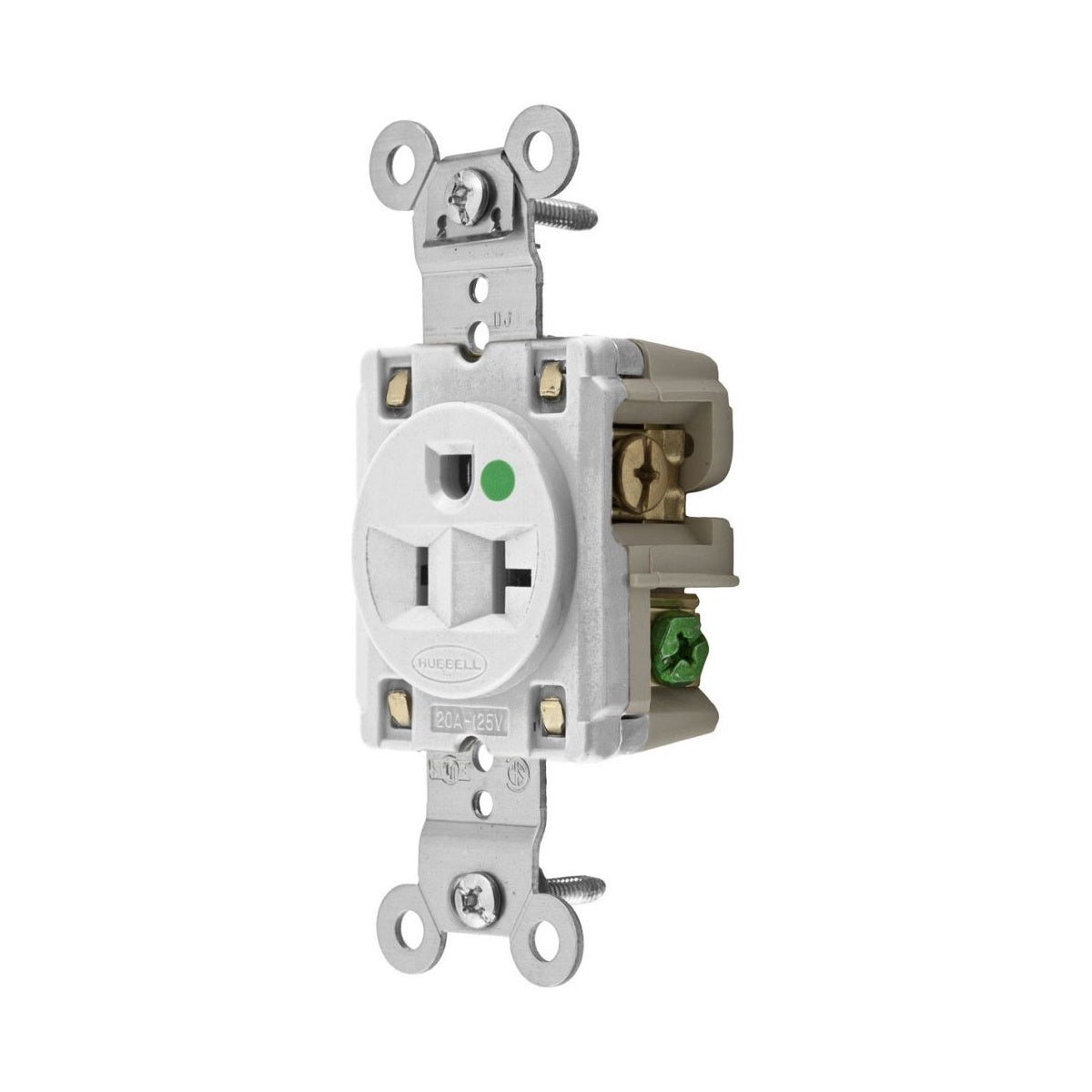

HUBBELL HBL8310W SGL RCPT HG 20A 125V 5-20R WH - Hospital Grade Receptacle

The HUBBELL HBL8310W is an extra heavy duty hospital grade single receptacle designed for reliable electrical connections in demanding healthcare and commercial environments. This device is suitable for use by electrical distributors and switchgear suppliers providing robust wiring and lighting solutions. It supports 20 ampere, 125 volt applications and complies with NEMA 5-20R standards, making it ideal for hospital-grade installations requiring high durability and safety.

Specifications

• Application: Extra Heavy Duty Hospital Grade
• Amperage Rating: 20 A
• Voltage Rating: 125 V
• NEMA Rating: 5-20R
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire
• Material: Nylon
• Mounting: Screw Mount
• Connection: Back and Side Wired Screw Terminals
• Dielectric Strength: Withstands 2,000V minimum
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Product Weight: 2.4 lbs
• Manufacturer: Hubbell Building & Automation
• Manufacturer Part #: HBL8310W

Features

• Extra heavy duty construction for hospital-grade reliability and safety
• Back and side wired screw terminals for versatile installation
• High dielectric strength ensures electrical insulation and safety
• Durable nylon face resists impact and wear in commercial environments
• Screw mount design allows secure and stable mounting in standard electrical boxes
• Complies with NEC requirements for hospital-grade receptacles
