HUBBELL HBL8210 SGL RCPT HG 15A 125V 5-15R BR
SKU: #399488
Part: #HBL8210
UPC: 783585016214
HUBBELL HBL8210 SGL RCPT HG 15A 125V 5-15R BR
SKU: #399488
Part: #HBL8210
UPC: 783585016214
Description

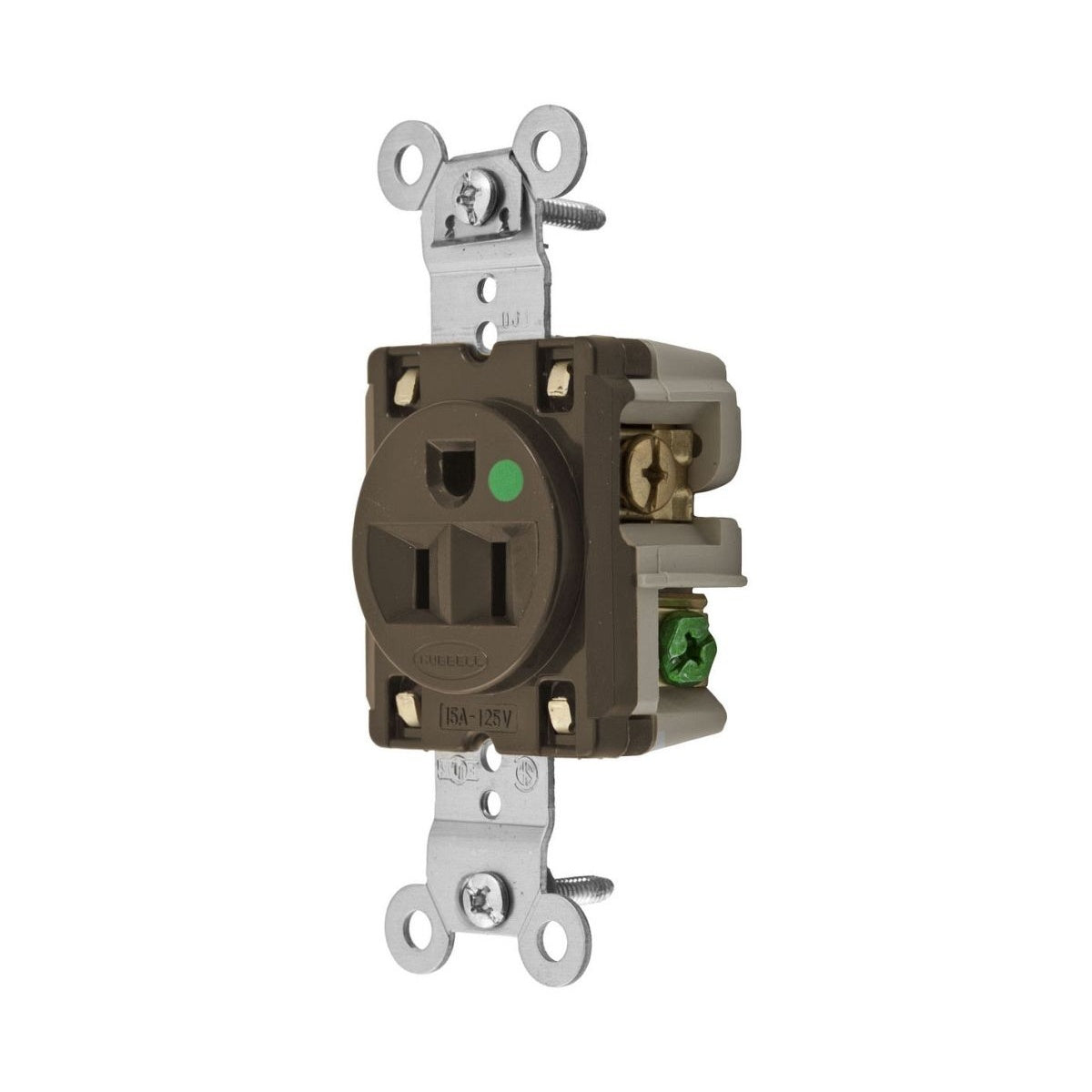

HUBBELL HBL8210 SGL RCPT HG 15A 125V 5-15R Brown Hospital Grade Receptacle
The HUBBELL HBL8210 is an extra heavy duty hospital grade single receptacle designed for reliable electrical distribution in healthcare and other demanding indoor dry environments. This device is suitable for use by electrical distributors and lighting solutions providers requiring durable, high-performance wiring devices. It features a NEMA 5-15R configuration rated at 15 amperes and 125 volts, making it compatible with standard North American electrical systems. The receptacle is constructed with nylon material and supports back and side wired screw terminals, ensuring secure and versatile connection options. Its screw mount design facilitates straightforward installation in switchgear and wiring applications.
Specifications
- Application: Extra Heavy Duty Hospital Grade
- Amperage Rating: 15 A
- Voltage Rating: 125 V
- NEMA Rating: 5-15R
- Number of Poles: 2-Pole
- Number of Wires: 3-Wire
- Material: Nylon
- Mounting: Screw Mount
- Connection: Back and Side Wired Screw Terminals
- Dielectric Strength: Withstands 2,000V minimum
- Environmental Conditions: Indoor Dry Unless Protected By Additional Means
- Product Weight: 2.35 lbs
- Manufacturer Part #: HBL8210
- UPC: 783585016214
Features
- Extra heavy duty construction suitable for hospital-grade applications
- Back and side wired terminals for flexible installation options
- Nylon face and body for enhanced durability and electrical insulation
- Screw mount facilitates secure and stable installation
- Complies with electrical safety standards for hospital-grade receptacles
- Designed to withstand high dielectric stress of at least 2,000 volts
