HUBBELL HBL8200SGRA Tamper-Resistant Hospital Grade Receptacle

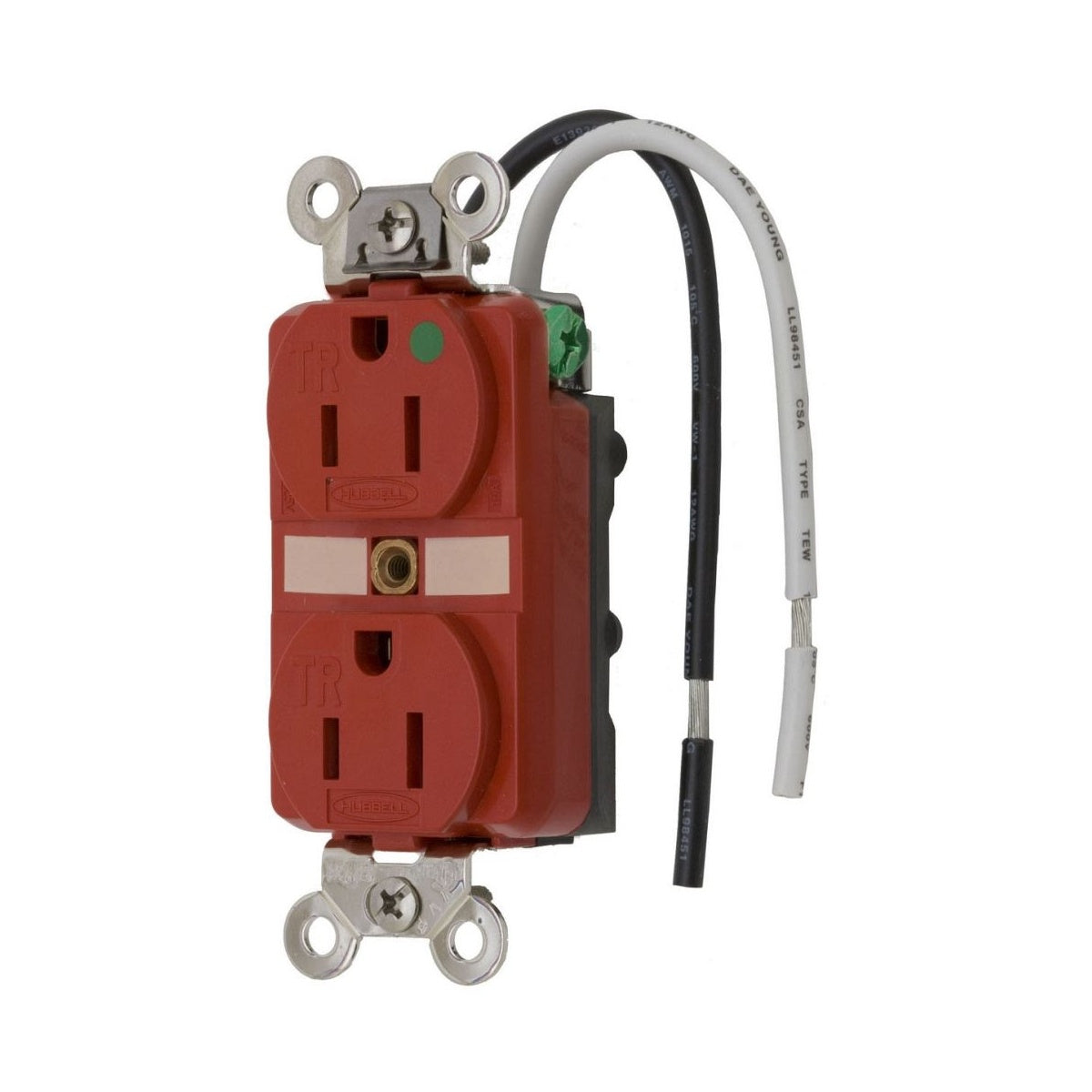

The HUBBELL HBL8200SGRA is an extra heavy duty hospital grade tamper-resistant duplex receptacle designed for demanding electrical distributor and lighting solutions applications. This device is suitable for use in medical and healthcare facilities requiring reliable, durable wiring devices. It features a 15A, 125V rating with a 5-15R NEMA configuration, making it compatible with standard electrical systems. The receptacle is constructed from thermoplastic material for enhanced durability and is intended for indoor dry environments unless protected by additional means. Its back and side wired screw terminals provide versatile and secure connection options. This receptacle is an essential component for wire and cable installations in healthcare and institutional settings, supplied by trusted switchgear suppliers.

Specifications

• Application: Extra Heavy Duty Hospital Grade
• Amperage Rating: 15 A
• Voltage Rating: 125 V
• NEMA Rating: 5-15R
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire
• Material: Thermoplastic
• Mounting: Screw Mount
• Connection: Back and Side Wired Screw Terminals
• Dielectric Strength: Withstands 2,000V minimum
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Product Weight: 3.35 lbs
• Manufacturer Part #: HBL8200SGRA
• UPC: 783585152257

Features

• Tamper-Resistant design compliant with NEC Section 517-18(c) for pediatric locations
• Extra heavy duty construction for hospital-grade reliability
• Back and side wired terminals for flexible installation
• Thermoplastic construction for durability and safety
• Meets rigorous dielectric strength requirements for safety
