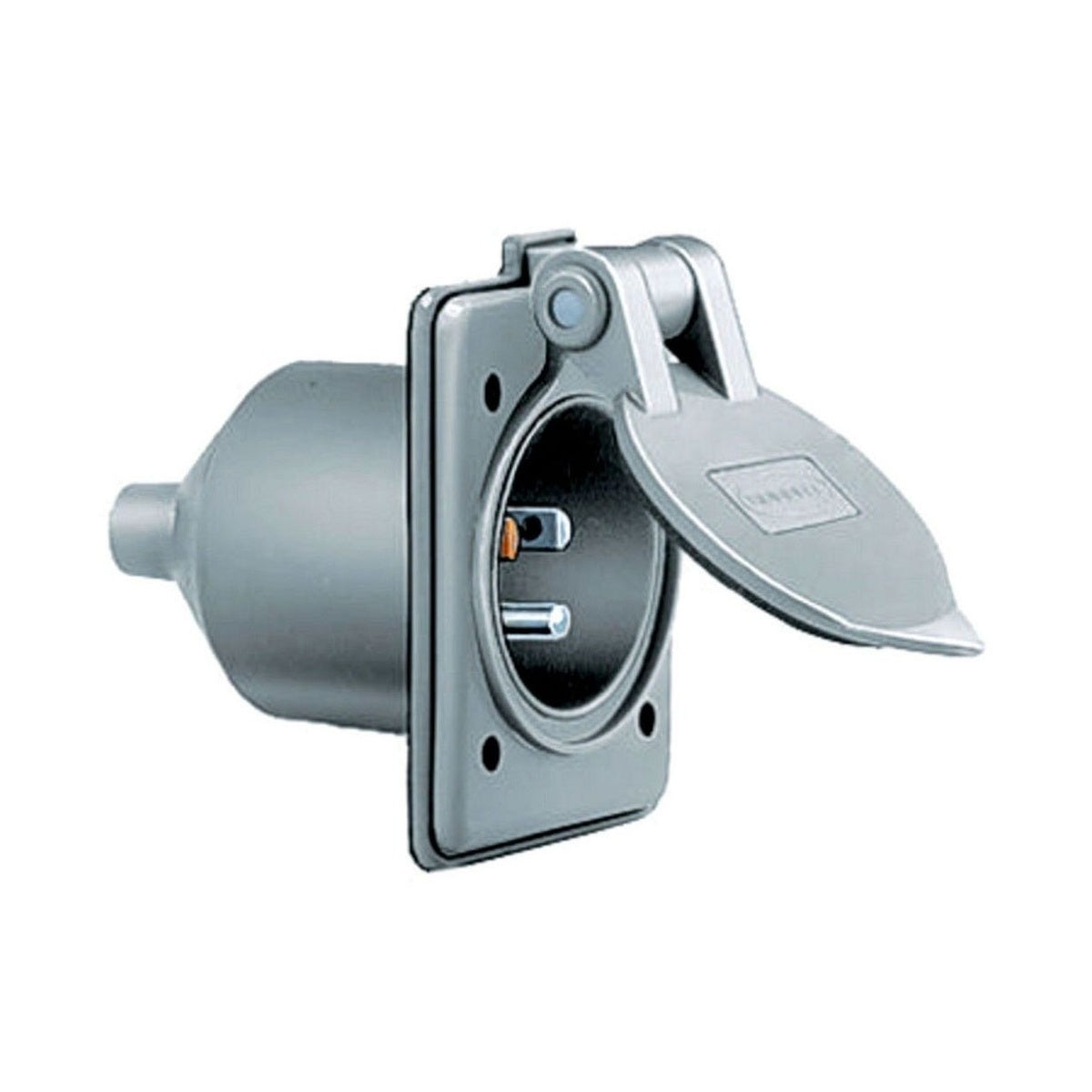

HUBBELL HBL61CM64 Marine Hull Inlet 15A 125V - Marine Wiring Devices

The HUBBELL HBL61CM64 is a weatherproof marine hull inlet designed for secure electrical connections in marine environments. It is ideal for use by electrical distributors and switchgear suppliers providing lighting solutions and wire and cable systems for marine applications. This inlet supports 15 ampere, 125 volt circuits with a NEMA 5-15P configuration, suitable for 2-pole, 3-wire straight blade connectors. Its thermoplastic construction and insulated body ensure durability and safety in indoor dry conditions unless additional protection is applied.

Specifications

• Application: Marine Wiring Devices
• Amperage Rating: 15 A
• Voltage Rating: 125 V
• NEMA Rating: 5-15P
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire
• Material: Thermoplastic
• Mounting: Screw Mount
• Connection: Screw Terminals
• Insulation: Insulated Body
• Dielectric Strength: Withstands 2,000V minimum
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Product Weight: 0.25 lbs
• Manufacturer: Hubbell Building & Automation
• Manufacturer Part #: HBL61CM64

Features

• Weatherproof design with lift cover and boot for protection against environmental exposure
• Thermoplastic housing provides corrosion resistance suitable for marine environments
• Screw terminal connections allow secure and reliable wiring installation
• Compatible with locking fork terminals and copper conductors (14-12 AWG)
• Meets UL and CSA standards for safety and performance
• Designed for panel or bulkhead mounting with four screw holes
• Supports strain relief compliance per American Boat and Yacht Council (ABYC) standards
