Hubbell Building & Automation
HUBBELL HBL560B9W PS IEC INLET 4P5W 60/63A 120/208V 4X/69K
SKU: #411808
Part: #HBL560B9W
UPC: 783585405636
Hubbell Building & Automation
HUBBELL HBL560B9W PS IEC INLET 4P5W 60/63A 120/208V 4X/69K
SKU: #411808
Part: #HBL560B9W
UPC: 783585405636
Description

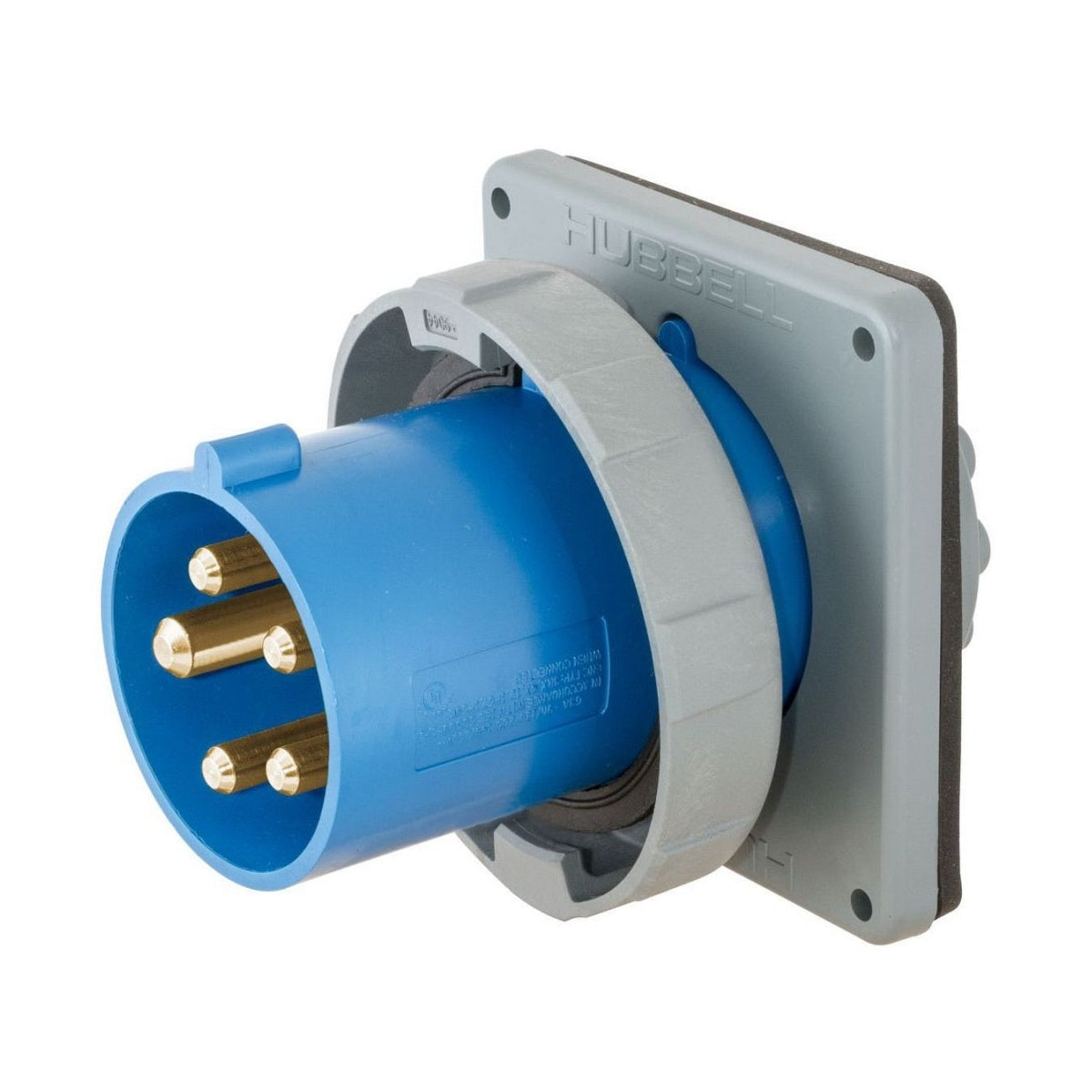

HUBBELL HBL560B9W PS IEC INLET 4P5W 60/63A 120/208V 4X/69K Electrical Connector
The HUBBELL HBL560B9W IEC inlet is designed for high ampacity watertight connections in industrial and commercial electrical applications. It provides a secure 4-pole, 5-wire connection rated for 60 A at 120/208 V, suitable for use by electrical distributors and switchgear suppliers requiring reliable wire and cable terminations with watertight integrity.
Specifications
- Manufacturer: Hubbell Building & Automation
- Amperage Rating: 60 A
- Voltage: 120/208 V
- Number of Poles: 4-Pole
- Number of Wires: 5-Wire
- Material: Thermoplastic
- Mounting: Screw Mount
- Connection Type: Pressure Screw Terminals
- Insulation: Insulated Body
- Environmental Conditions: Watertight
- Dielectric Strength: Withstands 3000V Minimum
- NEMA Rating: Non-NEMA
- Product Weight: 1.9 lbs
Features
- Complies with IEC 309-1 and 309-2 standards for pin and sleeve devices
- Designed for high ampacity applications requiring watertight connections
- Durable thermoplastic housing ensures electrical insulation and mechanical protection
- Pressure screw terminals provide secure and reliable wire termination
- Mounts easily with screw mount design for stable installation
- Rated to withstand 3000 volts dielectric strength for enhanced safety
- Compatible with wiring devices requiring 4-pole, 5-wire configurations at 60 amps
