Description
HUBBELL HBL5378C FLG-INLET 20A 125V 5-20P WH Electrical Connector

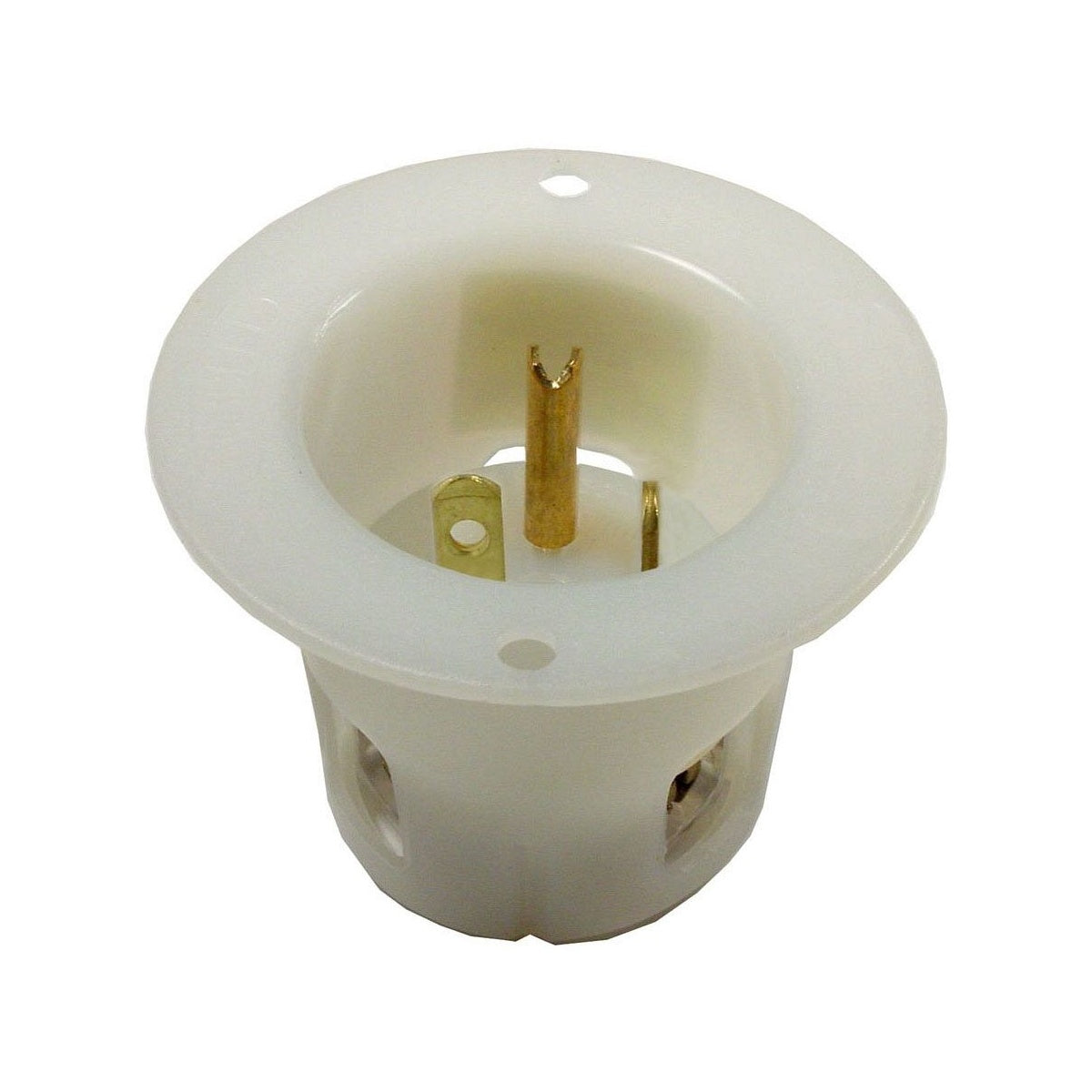

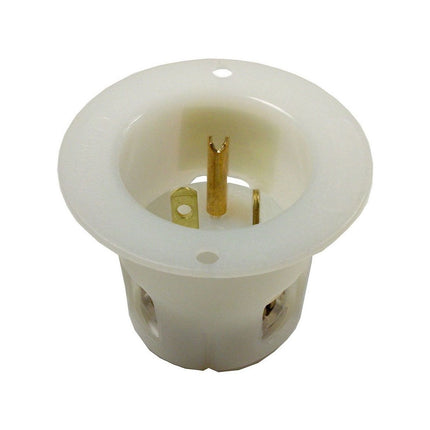

The HUBBELL HBL5378C is a flanged inlet designed for extra heavy duty industrial applications. This device is suitable for use by electrical distributors and switchgear suppliers requiring reliable and durable wiring solutions. It features a nylon insulated body with back and side wired screw terminals, ensuring secure and efficient electrical connections in indoor dry environments, unless additional protection is applied.
Specifications
- Manufacturer: Hubbell Building & Automation
- Manufacturer Part #: HBL5378C
- Application: Extra Heavy Duty Industrial
- Amperage Rating: 20 A
- Voltage Rating: 125 V
- NEMA Rating: 5-20P
- Number of Poles: 2-Pole
- Number of Wires: 3-Wire
- Material: Nylon
- Mounting: Screw Mount
- Connection: Back and Side Wired Screw Terminals
- Insulation: Insulated Body
- Dielectric Strength: Withstands 2,000V minimum
- Environmental Conditions: Indoor Dry Unless Protected By Additional Means
- Product Weight: 0.1000 lbs
Features
- Durable nylon casing designed for heavy industrial use
- Back and side wired screw terminals for flexible wiring options
- Insulated body enhances electrical safety and durability
- Screw mount design for secure and stable installation
- Complies with NEMA 5-20P standards ensuring compatibility with standard 20A, 125V circuits
- High dielectric strength withstands up to 2,000 volts
