Hubbell Building & Automation
HUBBELL HBL5362RWR WR RCPT DUP SB HD SPEC 20A 125V RD
SKU: #401724
Part: #HBL5362RWR
UPC: 783585320588
Hubbell Building & Automation
HUBBELL HBL5362RWR WR RCPT DUP SB HD SPEC 20A 125V RD
SKU: #401724
Part: #HBL5362RWR
UPC: 783585320588
Description

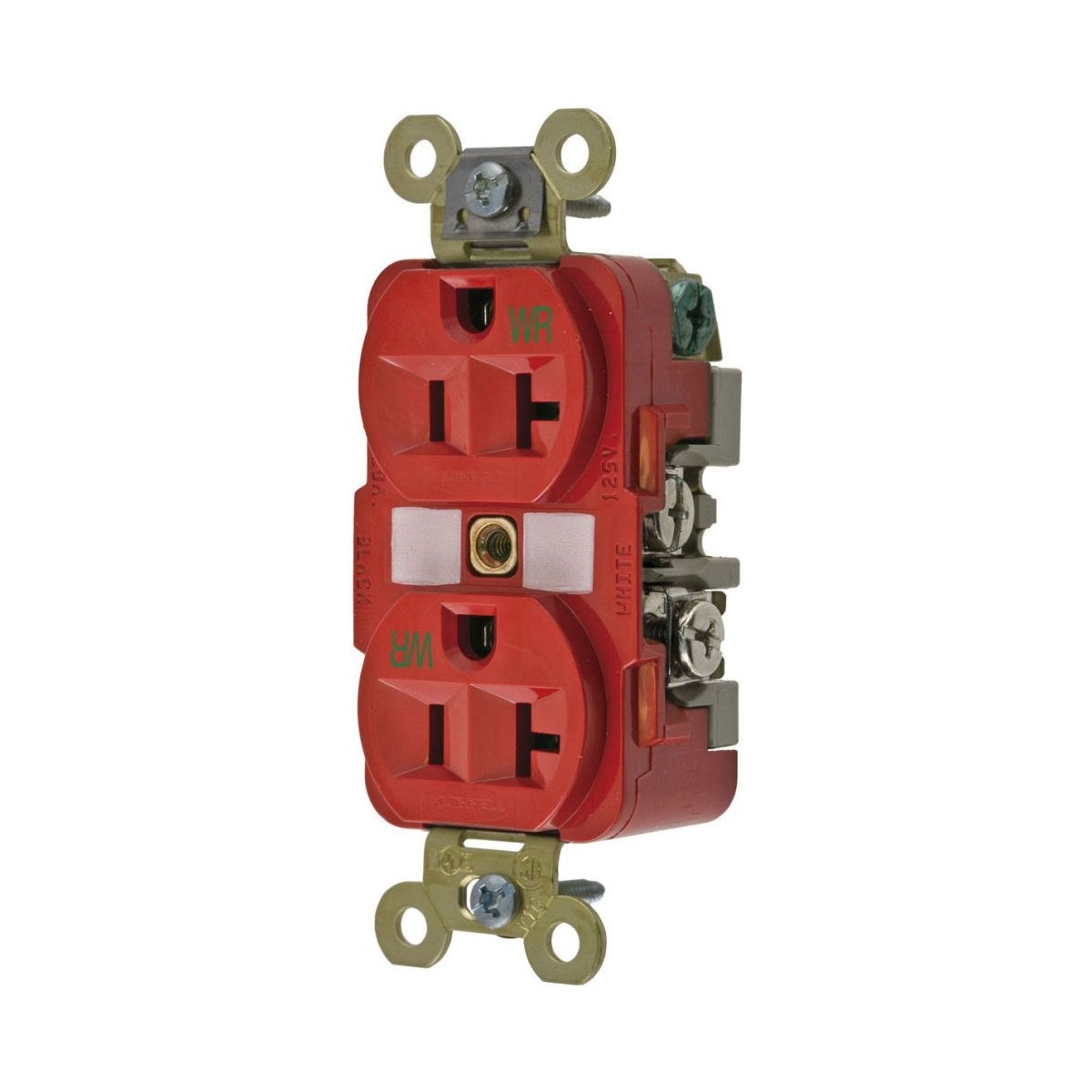

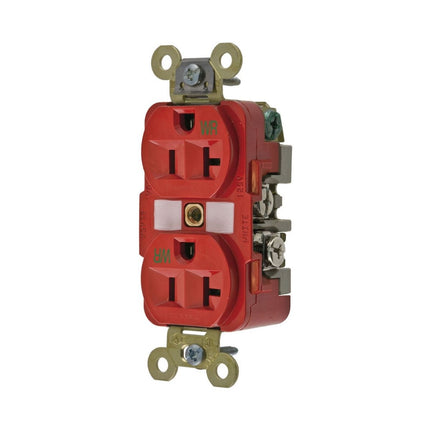

HUBBELL HBL5362RWR WR RCPT DUP SB HD SPEC 20A 125V RD Electrical Receptacle
The HUBBELL HBL5362RWR is an extra heavy duty specification grade duplex receptacle designed for robust electrical applications. It is suitable for use by electrical distributors and switchgear suppliers requiring reliable, weather-resistant wiring devices. This receptacle supports 20 ampere, 125 volt circuits and is engineered for both back and side wired screw terminal connections, making it adaptable for various wiring configurations in commercial and industrial environments.
Specifications
- Application: Extra Heavy Duty Specification Grade
- Amperage Rating: 20 A
- Voltage Rating: 125 V
- NEMA Rating: 5-20R
- Number of Poles: 2-Pole
- Number of Wires: 3-Wire
- Material: Thermoplastic/Composite
- Mounting: Screw Mount
- Connection: Back and Side Wired Screw Terminals
- Dielectric Strength: Withstands 2,000V minimum
- Environmental Conditions: Weather Resistant
- Product Weight: 2.95 lbs
Features
- Weather resistant design suitable for outdoor and damp locations
- Extra heavy duty construction for high durability and long service life
- Back and side wiring options for flexible installation
- Thermoplastic/composite face for corrosion resistance
- Complies with specification grade standards for commercial use
