Hubbell Building & Automation
HUBBELL HBL5226 W/PROOF GFCI PLATE 1G GY PBT
SKU: #144150
Part: #HBL5226
UPC: 783585812502
Hubbell Building & Automation
HUBBELL HBL5226 W/PROOF GFCI PLATE 1G GY PBT
SKU: #144150
Part: #HBL5226
UPC: 783585812502
Description
HUBBELL HBL5226 Weatherproof GFCI Plate – Electrical Distributor Lighting Solutions

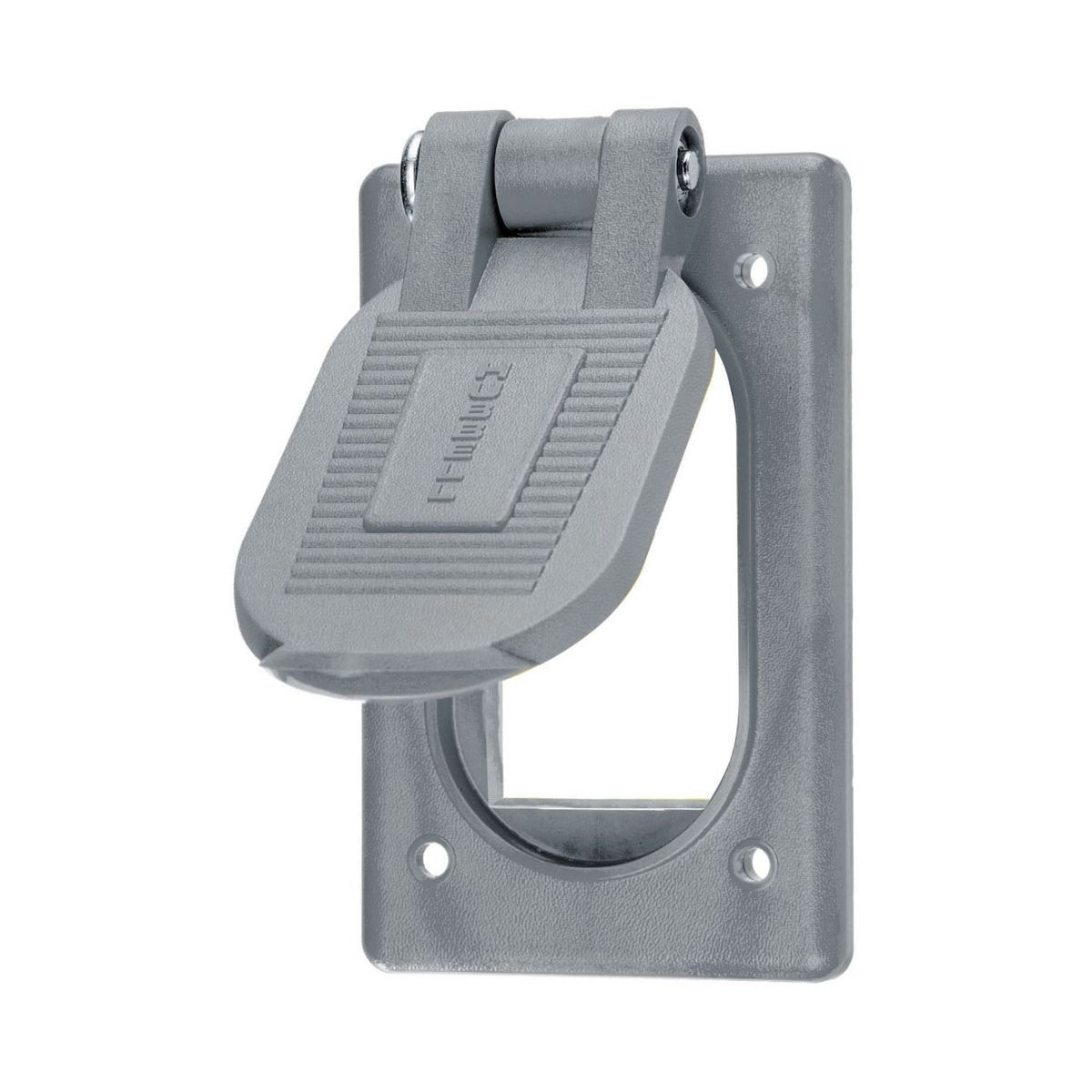

The HUBBELL HBL5226 is a thermoplastic, gray weatherproof lift cover plate designed for decorator opening applications, specifically for ground fault circuit interrupter (GFCI) receptacles. Suitable for use in wet and damp locations, this plate provides durable protection and maintains electrical safety in demanding environments. It is ideal for electrical distributors and switchgear suppliers requiring reliable weatherproof solutions for wire and cable installations.
Specifications
- Application: Decorator Opening
- Material: Thermoplastic
- Color: Gray
- Construction: Cast
- Number of Outlet: 1-Device
- Width: 3.4 in
- Height: 1.6 in
- Length: 5 in
- Knockouts: None
- Product Weight: 0.1640 lbs
- Manufacturer: Hubbell Building & Automation
- Manufacturer Part #: HBL5226
Features
- Thermoplastic vertical spring-loaded lift cover for weatherproofing GFCI and decorator-type devices
- Marine drip-proof rated with stainless steel hardware
- IP44 suitability for protection against water splashes
- Designed for mounting on smooth, rigid surfaces without caulking; caulking required for surfaces with indentations less than 1/16” (1.6 mm)
- Includes gasket and hardware for secure installation
- Cast construction ensures durability and long service life
- Compatible with standard decorator openings and provides protection in wet or damp locations
