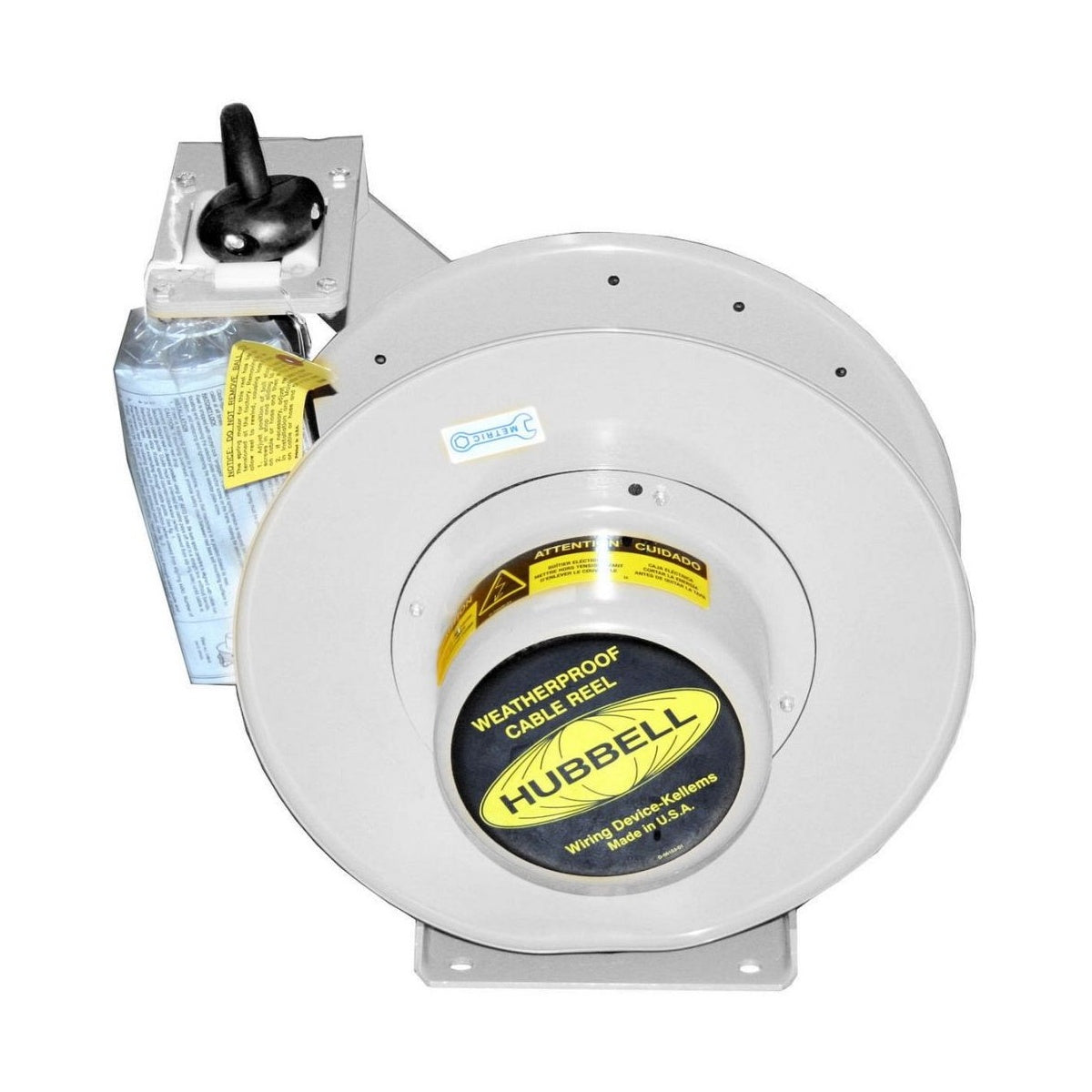

HUBBELL HBL501232WM1 Weatherproof Electrical Cable Reel

The HUBBELL HBL501232WM1 is a heavy-duty weatherproof electrical cable reel designed for bench, ceiling, and wall mounting applications. It provides reliable cable management solutions suitable for electrical distributors and lighting solutions providers requiring durable wire and cable handling equipment. This reel features a robust steel construction with an internal spring motor for automatic cable retraction, supporting a 50 ft active length of #10/3 SOW-A cable and a 5 ft feeder cord. Its white powder-coated finish offers corrosion resistance, making it suitable for dry, indoor, and wet outdoor non-hazardous environments.

Specifications

• Manufacturer: Hubbell Building & Automation
• Manufacturer Part #: HBL501232WM1
• Application: Bench, Ceiling and Wall Mounted
• Duty: Heavy Duty
• Base Material: Steel
• Construction: Steel
• Motor Type: Internal Spring
• Cable Type: #10/3 SOW-A
• Cable Active Length: 50 Ft
• Cable Inactive Length: 5' Length
• Feeder Cord: 5' 10/3 SOW-A
• Color: White (NEMA Color)
• Product Weight: 98 lbs
• Listing/Certification: UL 355 and CSA, C22.2 No. 308
• Environment: Type 4X enclosure suitable for dry, indoor, and wet/damp outdoor non-hazardous locations

Features

• Heavy-duty powder-coated steel construction for corrosion resistance
• Internal spring motor provides automatic cable retraction with adjustable tension
• Multi-position roller guide for flexible mounting and cable pay-off directions
• Ratchet lock can be disengaged for constant tension applications
• Weatherproof Type 4X enclosure protects internal components from hosedown and corrosion
• Includes a 5 ft feeder cord for easy power connection
• Designed for safe and efficient cable management in industrial and commercial electrical applications
