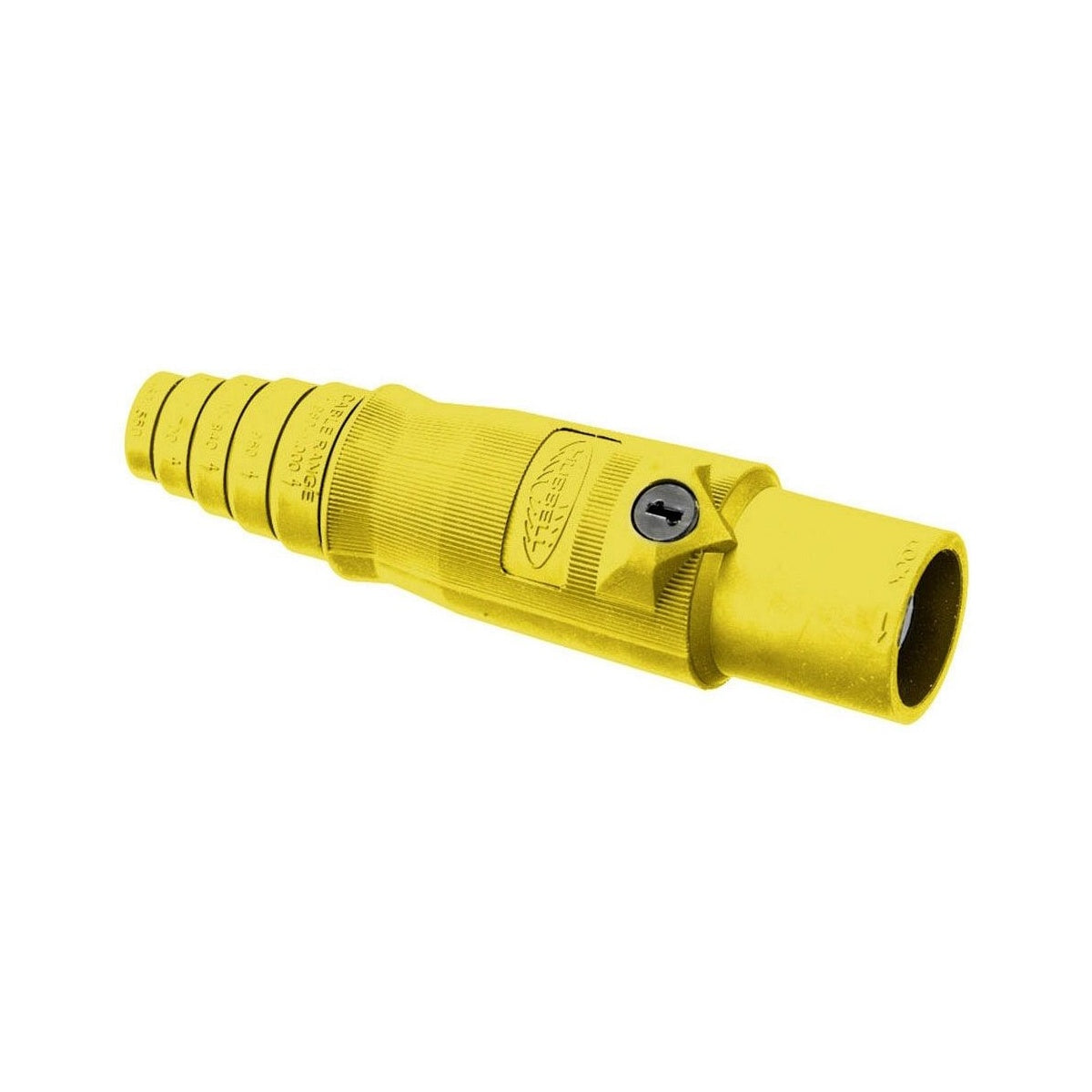

HUBBELL HBL400MY SINGLEPOLE 400A MALE PLUG YELLOW - High Ampacity Electrical Connector

The HUBBELL HBL400MY Single Pole 400A Male Plug is designed for high ampacity connections in electrical distribution systems. It is suitable for use in indoor dry environments unless additional protection is applied. This cord-mounted device is constructed from composite material for durability and features pressure terminal screws for secure wire connections. It supports a single pole and single wire configuration, rated at 400 amperes, making it ideal for heavy-duty wire and cable applications. As a product from a leading switchgear supplier and electrical distributor, it integrates seamlessly into lighting solutions and electrical distribution setups requiring robust, high-current connectors.

Specifications

• Name: HUBBELL HBL400MY SINGLEPOLE 400A MALE PLUG YELLOW
• Application: High Ampacity Connections
• Amperage Rating: 400 A
• Number of Poles: 1-Pole
• Number of Wires: 1-Wire
• Material: Composite
• Mounting: Cord Mounted
• Cord Type: Listed SC/PPC Type
• Connection: Pressure Terminal Screws
• NEMA Rating: Non-NEMA
• Environmental Conditions: Indoor Dry unless protected by additional means
• Product Weight: 0.7000 lbs
• Manufacturer: Hubbell Building & Automation
• Manufacturer Part #: HBL400MY

Features

• Thermoplastic elastomer housing suitable for cable sizes 2/0 to 4/0 AWG
• Compatible with Hubbell single pole devices enclosure Types 3, 3S, 3R, 4, 4X, and 12 when properly installed
• Designed for use with copper conductors only, rated for 90ºC power cable types SC, SCE, SCT, G, PPE, PPC, or W
• Pressure terminal screws provide secure and reliable electrical connections
• Locking pin mechanism ensures secure mating and prevents accidental disconnection
• Yellow color coding for easy identification in electrical distribution systems
