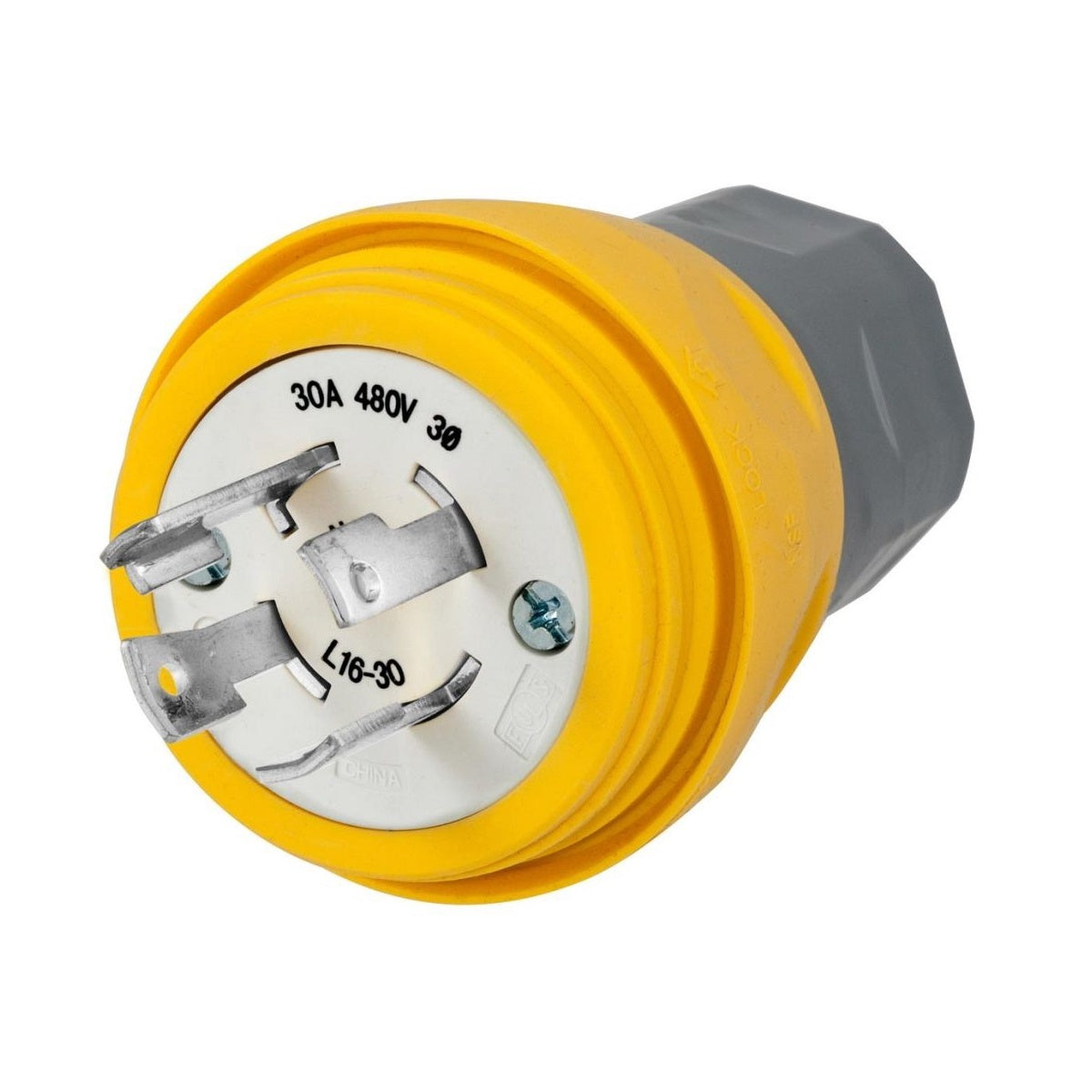

HUBBELL HBL28W76 Plug with Tight 3P 30A 480V L16-30P Watertight Electrical Connector

This HUBBELL HBL28W76 is a watertight, cord-mounted plug designed for industrial and commercial electrical applications. It provides secure and reliable connections for 30 amp, 480 volt circuits with a NEMA L16-30P rating. Suitable for use by electrical distributors, lighting solutions providers, wire and cable specialists, and switchgear suppliers requiring durable, high-performance locking connectors.

Specifications

• Application: Industrial/Commercial
• Amperage Rating: 30 A
• Voltage Rating: 480 V
• NEMA Rating: L16-30P
• Number of Poles: 3-Pole
• Number of Wires: 4-Wire
• Material: Elastomeric/Composite
• Mounting: Cord Mounted
• Cord Type: All Portable
• Connection Type: Screw Terminals
• Environmental Conditions: Watertight
• Product Weight: 7.0740 lbs
• Manufacturer Part #: HBL28W76
• UPC: 783585131726

Features

• Watertight design suitable for harsh environments, meeting IP65, 66, 67, and 69k standards when mated with equivalent connectors (based on product family standards).
• Constructed with durable elastomeric and composite materials for long-lasting performance and resistance to environmental factors.
• Screw terminal connections ensure secure wiring and facilitate installation by qualified electricians.
• Cord-mounted design supports all portable cord types, enhancing versatility in industrial and commercial settings.
• Complies with NEMA enclosure type ratings including 3R, 4, 4X, 6, and 6P when mated with compatible devices.
• Certified for use in food processing splash zones by NSF International, supporting hygienic cleaning protocols.
