Hubbell Building & Automation
HUBBELL HBL2733ST LKG CONN 30A 3P 480V L16-30R B/W SP
SKU: #403238
Part: #HBL2733ST
UPC: 783585719054
Hubbell Building & Automation
HUBBELL HBL2733ST LKG CONN 30A 3P 480V L16-30R B/W SP
SKU: #403238
Part: #HBL2733ST
UPC: 783585719054
Description

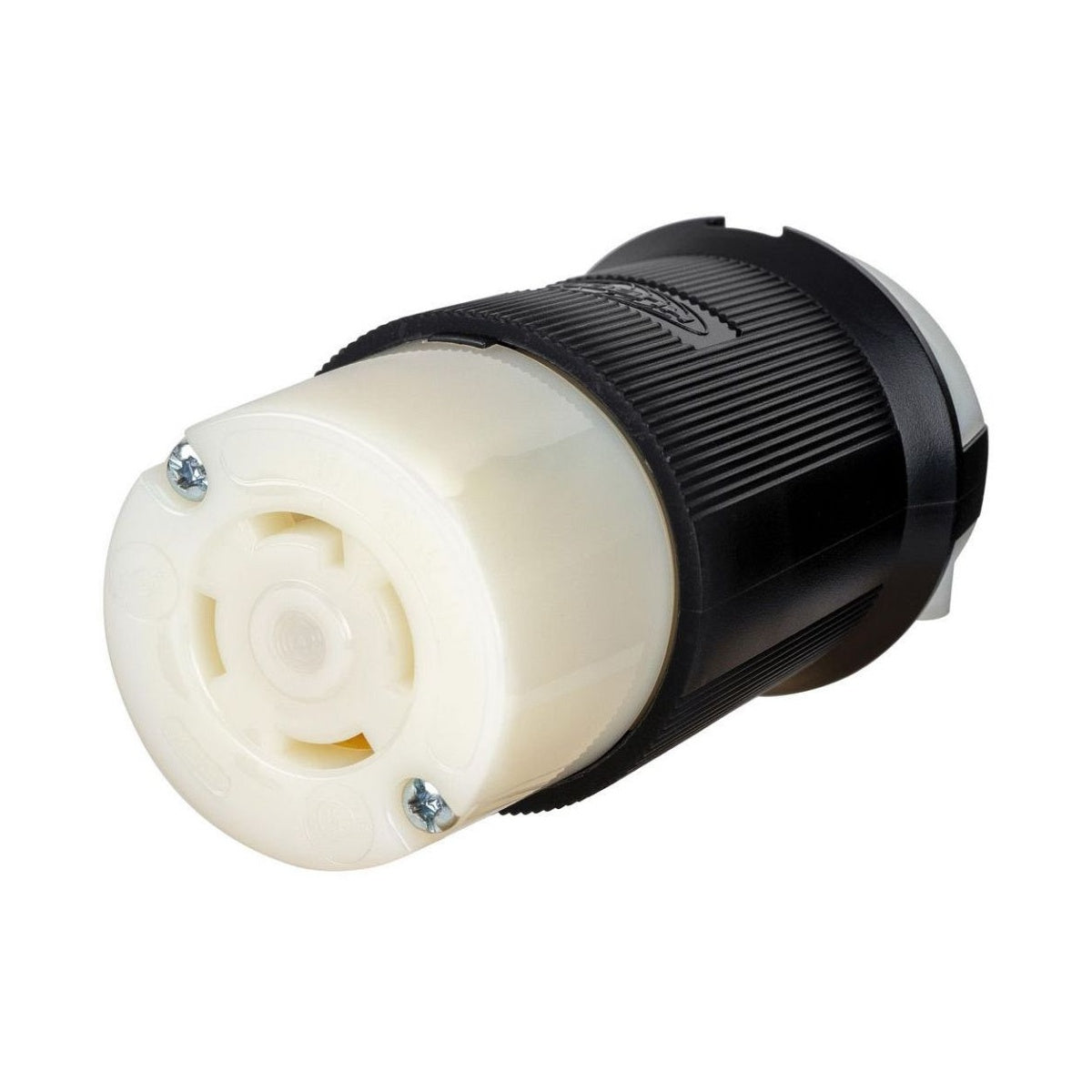

HUBBELL HBL2733ST LKG CONN 30A 3P 480V L16-30R B/W SP Connector
The HUBBELL HBL2733ST is a 30 Amp, 3 Pole, 4 Wire grounding connector designed for industrial electrical applications. It features the patented EdgeConnect™ screwless termination system for efficient and secure wiring. This connector is suitable for use with wire and cable in lighting solutions, electrical distribution, and switchgear applications requiring a NEMA L16-30R rating at 480 volts.
Specifications
- Manufacturer: Hubbell Building & Automation
- Manufacturer Part #: HBL2733ST
- Application: Industrial
- Material: Nylon
- Mounting: Screw Mount
- Connection: EdgeConnect™ Screwless Termination
- NEMA Rating: L16-30R
- Number of Poles: 3
- Number of Wires: 4
- Dielectric Strength: Withstands 3,000V minimum
- Environmental Conditions: IP20 Suitability
- Product Weight: 0.4500 lbs
- UPC: 783585719054
Features
- EdgeConnect™ screwless termination enables quick, reliable wiring without screws
- Constructed from durable nylon for corrosion resistance and industrial use
- Screw mount design ensures secure installation in electrical panels or junction boxes
- Rated for 30A at 480V with 3 poles and 4 wires including grounding
- IP20 rated for indoor environments protecting against solid objects larger than 12mm
- Meets NEMA L16-30R configuration for locking connectors
