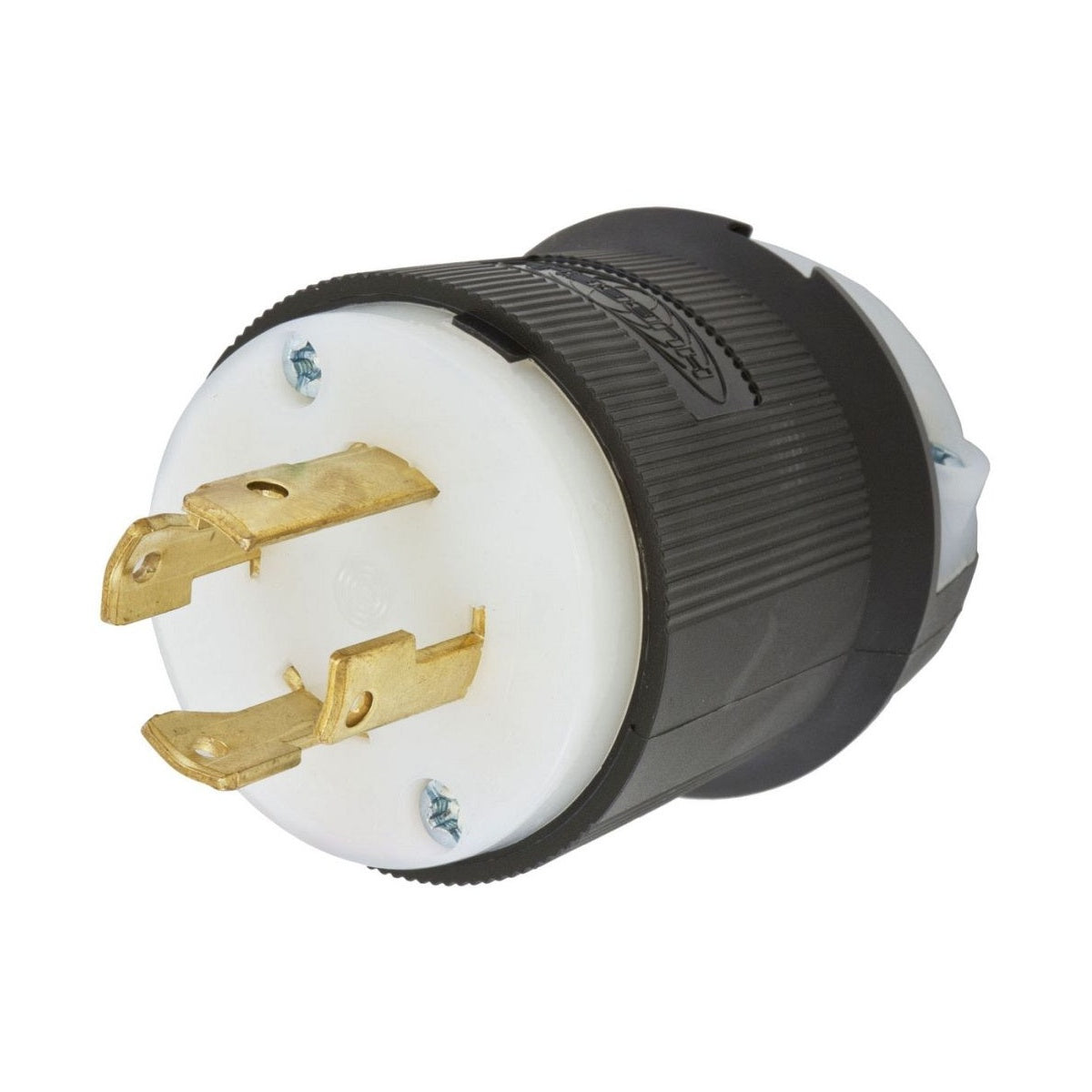

HUBBELL HBL2731ST LKG PLUG 30A 3P 480V L16-30P ST - Twist-Lock Plug

The HUBBELL HBL2731ST is a 30 Amp, 3 Pole, 4 Wire grounding Twist-Lock plug designed for use in electrical distribution and lighting solutions. Rated for 480V AC, it is suitable for industrial and commercial wiring applications requiring secure and reliable connections. This plug is compatible with wire and cable sizes ranging from 0.350" to 1.150" in diameter and is engineered for use by electrical distributors and switchgear suppliers seeking durable and code-compliant connectors.

Specifications

• Manufacturer: Hubbell Building & Automation
• Manufacturer Part #: HBL2731ST
• Voltage Rating: 480V AC
• Current Rating: 30 Amps
• Number of Poles: 3
• Number of Wires: 4
• UPC: 783585681535
• Product Weight: 12.0 lbs
• NEMA Configuration: L16-30P
• Cord Diameter Range: 0.350" to 1.150" (9 to 29 mm)

Features

• Twist-Lock design ensures secure, vibration-resistant connections
• Insulgrip® nylon body with spring termination for easy, screwless wiring
• Corrosion resistant construction for extended service life
• Compatible with stranded copper conductors only
• Designed for use with round cords sized 0.350" to 1.150" diameter
• Meets UL and CSA standards for safety and performance
