Description
HUBBELL HBL2635 LKG FLG-INLT 30A 277V L7-30P WH - Industrial Electrical Connector

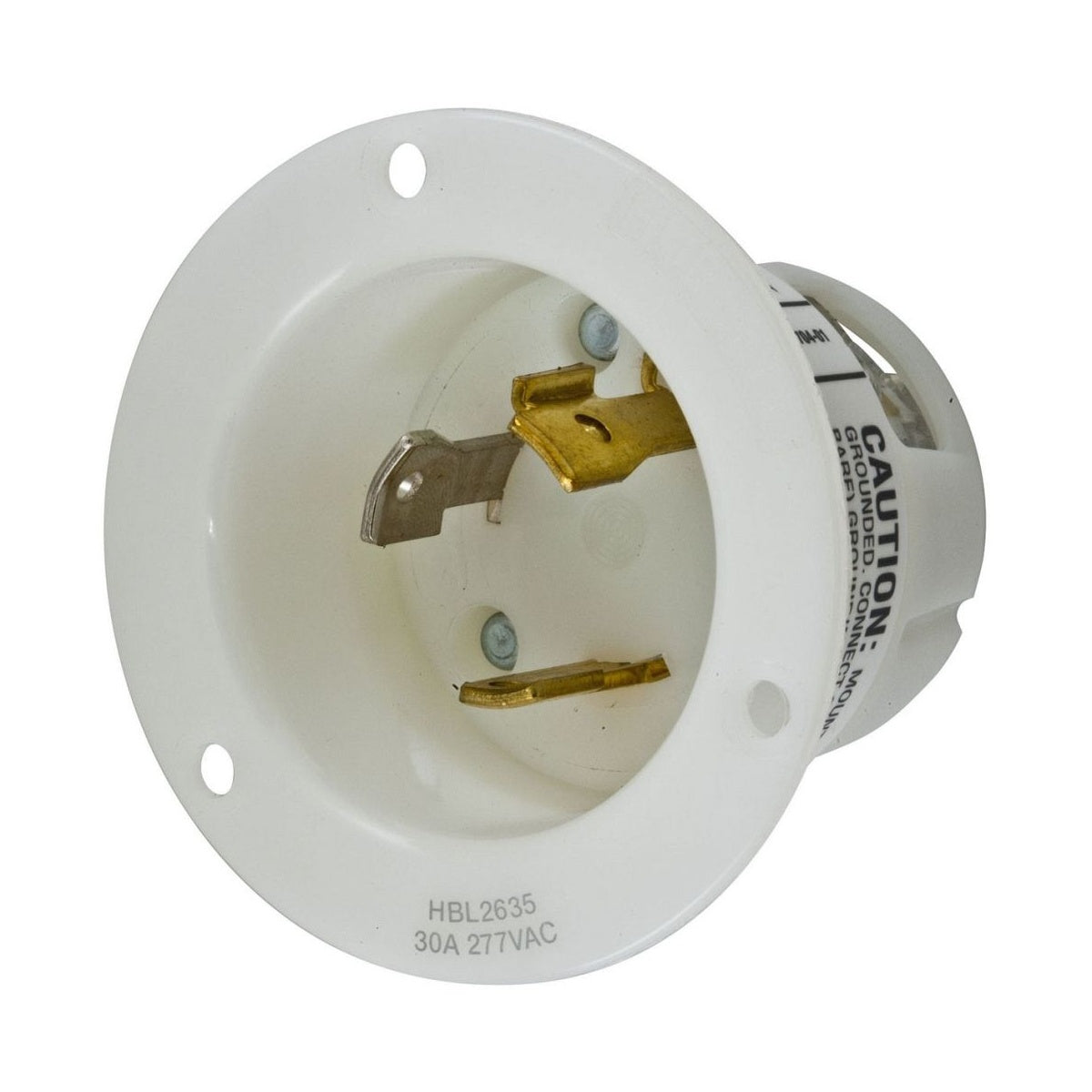

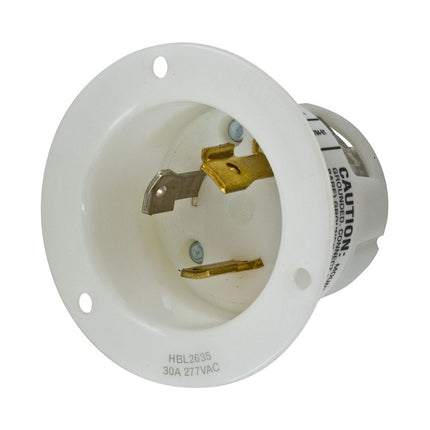

The HUBBELL HBL2635 is a heavy-duty flanged inlet designed for industrial electrical applications. It serves as a reliable connection point for 30 amp, 277 volt circuits, suitable for use by electrical distributors and lighting solutions providers requiring robust wire and cable components. This device supports a 2-pole, 3-wire configuration with a NEMA L7-30P rating, making it compatible with specific locking connectors and switchgear systems.
Specifications
- Application: Extra Heavy Duty Industrial
- Amperage Rating: 30 A
- Voltage Rating: 277 V
- Number of Poles: 2-Pole
- Number of Wires: 3-Wire
- Material: Nylon
- Mounting: Screw Mount
- Connection: Screw Terminals
- Insulation: Insulated Body
- NEMA Rating: L7-30P
- Dielectric Strength: Withstands 2,000V minimum
- Environmental Conditions: Indoor Dry Unless Protected By Additional Means
- Product Weight: 0.2000 lbs
- Manufacturer: Hubbell Building & Automation
- Manufacturer Part #: HBL2635
Features
- Screw terminal connections ensure secure and reliable wiring
- Insulated nylon body provides electrical insulation and durability
- Screw mount design facilitates stable installation in industrial panels
- Designed for extra heavy-duty industrial environments
- Meets NEMA L7-30P locking configuration standards for compatibility
- High dielectric strength supports safety and operational reliability
