Description

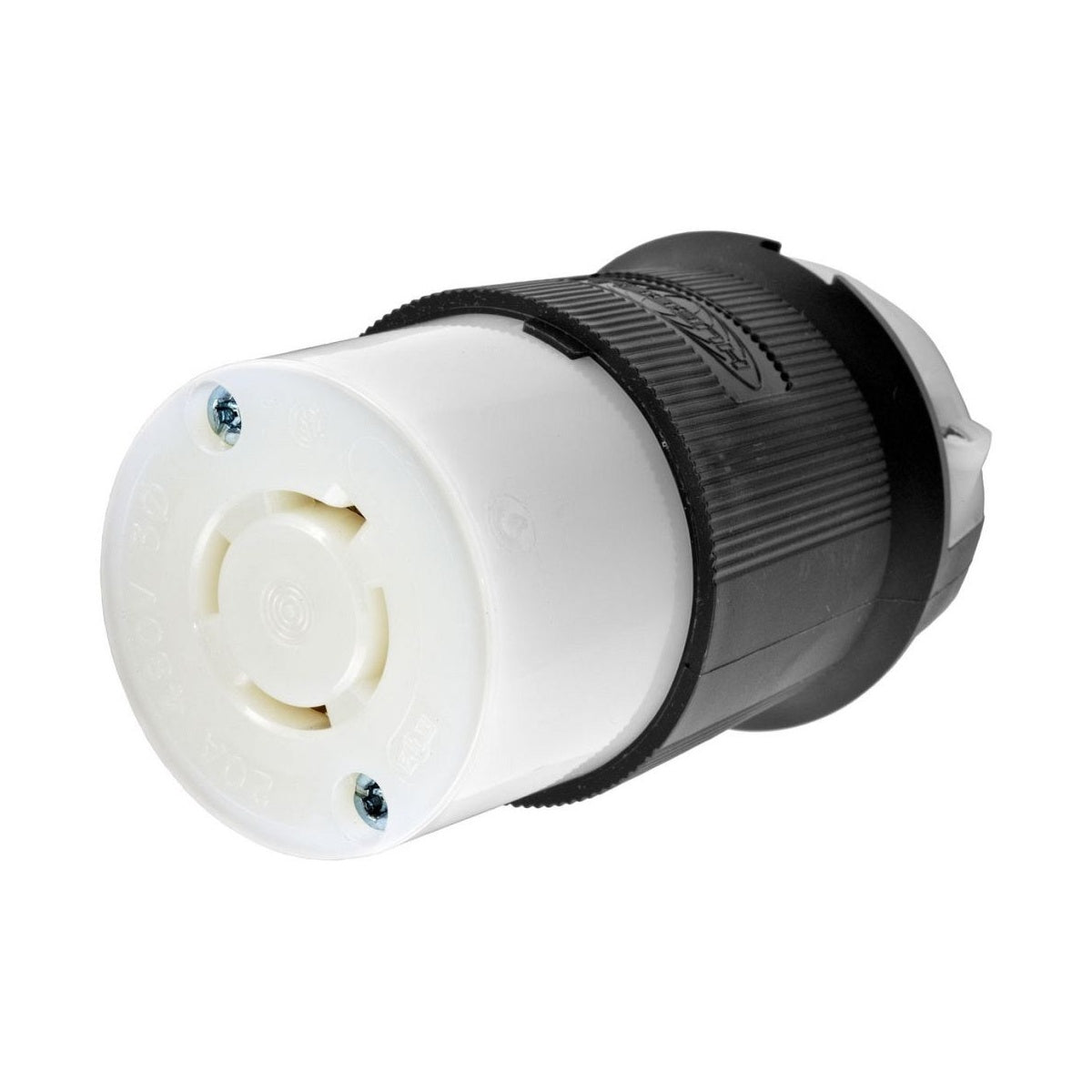

HUBBELL HBL2433 LKG CONN 20A 3P 480V L16-20R Connector
The HUBBELL HBL2433 locking connector is designed for heavy duty industrial applications, providing reliable electrical connections in wire and cable assemblies. This cord-mounted connector is suitable for 20 Amp, 3-pole, 4-wire grounding circuits operating at 480 Volts AC with a NEMA L16-20R rating. It is ideal for use by electrical distributors and switchgear suppliers requiring durable and insulated connectors for indoor dry environments.
Specifications
- Application: Heavy Duty Industrial
- Amperage Rating: 20 A
- Number of Poles: 3-Pole
- Number of Conductors: 4-Wire Grounding
- NEMA Rating: L16-20R
- Voltage: 480V AC
- Connection: Pressure Screw Terminal
- Conductor Range: #12AWG to #10AWG
- Material: Nylon
- Color: Black, White
- Mounting: Cord Mounted
- Insulation: Insulated Body
- Environmental Conditions: Indoor Dry Unless Protected By Additional Means
- Product Weight: 0.4500 lbs
- Manufacturer: Hubbell Building & Automation
- Manufacturer Part #: HBL2433
- UPC: 783585038292
Features
- Insulgrip® design with insulated body for enhanced safety
- Pressure screw terminal connection ensures secure wiring
- Cord-mounted for flexible installation
- Compatible with wire sizes ranging from #12 to #10 AWG
- Designed for 4-wire grounding circuits in industrial environments
- Black and white nylon construction provides durability and identification
- Meets NEMA L16-20R standards for 20 Amp, 3-pole, 480 Volt applications
